Φ0.3~3mm 900-2700nm Two-stage TEC InGaAs Photodiode TO8 Package

The GESTIN-2TE-TO8 series unit InGaAs detector is mainly composed of a P-I-N structure InGaAs photosensitive chip, a transition electrode plate, a temperature sensor and a two-stage thermoelectric cooler (2TE), and adopts a TO package. This user manual only introduces the product series.

Product features：Chip effective diameter from 300μm to 3000μm、 Spectral response from 900nm to 2700nm、 High shunt resistance for high sensitivity、 TEC built-in

Application area：Near infrared sensing/radiometry、 LED/LD characteristics、 Spectroscopy、 Medical diagnostics、 Spectroscopy

Unit Price

Please contact customer service for a discounted quote.

Part Number

GESTIN-2TE-TO8-2000

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters:

E/O characteristics

Structural parameters

Part Number	Package	cool	Active area	Chip size	Electrode size
GESTIN-2TE-TO8 -0300	TO-8	2TE	Φ300μm	850×850um	140× 180um
GESTIN-2TE-TO8 -0500			Φ500μm	1000× 1000um	140× 180um
GESTIN-2TE-TO8 -1000			Φ1000μm	1410× 1410um	140× 180um
GESTIN-2TE-TO8 -2000			Φ2000μm	2560×2560um	280×360um
GESTIN-2TE-TO8 -3000			Φ3000μm	3560×3560um	320×480um

EO parameters

Part Numbe r	Test temperature Tch (℃)	Spectral response λ (nm)	Dark Current ID( μA)		Junction Capacit y (Junction capacitance)C(f=1M Hz ，VR =0V) (pF)
Part Numbe r	Test temperature Tch (℃)	Spectral response λ (nm)	VR =0.01V	VR =0.5V
GESTIN-2TE -TO8-0300	25	900-2700	0.1	0.5	50
GESTIN-2TE -TO8-0500			0.2	1	100
GESTIN-2TE -TO8-1000			1	4	300
GESTIN-2TE -TO8-2000			4	10	800
GESTIN-2TE -TO8-3000			10	40	2000

Part Number	Peak response (A/W)	Junction impedance Rsh(VR =10mV) MΩ	Peak detection rateD*(cm·Hz1/2/W)	Noise Equivalent Power NE
				P (W/Hz1/2)
GESTIN-2TE-TO8 -0300	1	3500	3 × 1012	8.9 × 10-15

GESTIN-2TE-TO8 -0500		1000		1.5 × 10-14
GESTIN-2TE-TO8 -1000		300		3.0 × 10-14
GESTIN-2TE-TO8 -2000		80		5.9 × 10-14
GESTIN-2TE-TO8 -3000		40		8.9 × 10-14

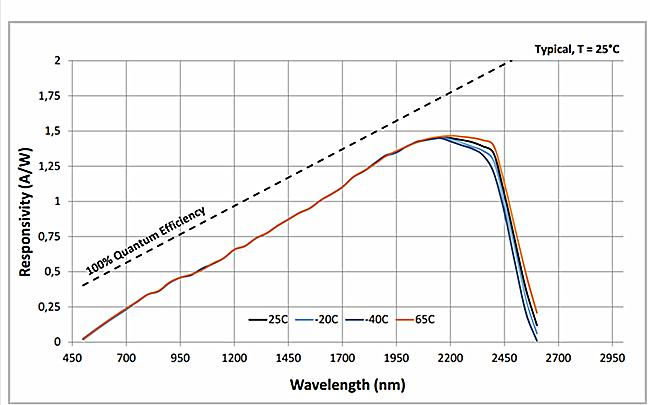

Response Curve

TEC parameters

Operating environment

Parameter	Typ
Operating temperature (℃)	-45~ +55
Storage temperature (℃)	-50~ +60

Characteristics of Thermoelectric Cooler

The detector integrates a two-stage thermoelectric cooler (TEC). The center of the cooling surface is the center of the lower surface of the detector. The cooling area should be ≥6mm×6mm. Its performance parameters are shown in the following table:

Performance indicators	Value
Max. thermal load power (Qmax/W)	0.93W
Max. allowable load current (ITEC-max/A)	1A
Max. allowable load voltage (VTEC-max/V)	2V

Temperature Monitoring Module Characteristics

This detector uses a thermistor as a temperature monitoring module. The mapping between the resistance value and the temperature at the operating temperature is shown in the following table:

Temperature(℃)	Resistance (kΩ)	Temperature(℃)	Resistance (kΩ)
-65	94.270	-15	6.909
-60	69.290	-10	5.587
-55	51.500	-5	4.549
-50	38.700	0	3.729
-45	29.400	5	3.075
-40	22.560	10	2.55
-35	17.490	15	2.126
-30	13.690	20	1.782
-25	10.810	25	1.5
-20	8.608	30	1.268

The corresponding relationship between thermistor value and temperature is as follows:

T1: Test target temperature, in °C;

T2: Reference point temperature, in °C. The typical value of reference temperature in the range of -20~70°C is 10 or 40°C. A reference temperature close to the target temperature should be selected.

R1: Thermistor resistance corresponding to T1, in kΩ;

R2: Thermistor resistance corresponding to T2, in kΩ;

B: Thermistor resistance corresponding to T2, in kΩ;

B: Between 20 and 70 degrees, the typical B value is 3019.6±60.

Note:

a) During TEC installation, please pay attention to the new resistance introduced by the external electrical structure. If the new resistance exceeds 10% of the TEC resistance, the I-V curve needs to be recalibrated.

b) It is recommended to open the TEC in a way that the connection resistance is small. If welding is required, short-circuit grounding protection is required, the welding temperature is ≤250℃, and the welding time is <10s;
