Φ0.3~3mm 900-2700nm Two-stage TEC InGaAs Photodiode TO8 Package
Φ0.3~3mm 900-2700nm Two-stage TEC InGaAs Photodiode TO8 Package
The GESTIN-2TE-TO8 series unit InGaAs detector is mainly composed of a P-I-N structure InGaAs photosensitive chip, a transition electrode plate, a temperature sensor and a two-stage thermoelectric cooler (2TE), and adopts a TO package. This user manual only introduces the product series.
Product features:Chip effective diameter from 300μm to 3000μm、 Spectral response from 900nm to 2700nm、 High shunt resistance for high sensitivity、 TEC built-in
Application area:Near infrared sensing/radiometry、 LED/LD characteristics、 Spectroscopy、 Medical diagnostics、 Spectroscopy
Unit Price
Please contact customer service for a discounted quote.
Part Number
GESTIN-2TE-TO8-3000
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Main Parameters:

E/O characteristics

Structural parameters

Part  Number

Package

cool

Active area

Chip size

Electrode size

GESTIN-2TE-TO8 -0300













TO-8













2TE

Φ300μm

850×850um

140× 180um

GESTIN-2TE-TO8 -0500

Φ500μm

1000× 1000um

140× 180um

GESTIN-2TE-TO8 -1000

Φ1000μm

1410× 1410um

140× 180um

GESTIN-2TE-TO8 -2000

Φ2000μm

2560×2560um

280×360um

GESTIN-2TE-TO8 -3000

Φ3000μm

3560×3560um

320×480um



EO parameters

Part  Number



Test temperature Tch (℃)



Spectral response λ (nm)

Dark Current ID( μA)

Junction Capacit y (Junction capacitance)C(f=1M Hz VR =0V)  (pF)

VR =0.01V

VR =0.5V

GESTIN-2TE -TO8-0300













25













900-2700

0.1

0.5

50

GESTIN-2TE -TO8-0500

0.2

1

100

GESTIN-2TE -TO8-1000

1

4

300

GESTIN-2TE -TO8-2000

4

10

800

GESTIN-2TE -TO8-3000

10

40

2000





Part  Number

Peak response (A/W)

Junction impedance Rsh(VR =10mV) MΩ

Peak detection rateD*(cm·Hz1/2/W)

Noise Equivalent Power   NE

P   (W/Hz1/2)

GESTIN-2TE-TO8 -0300

1

3500

3 × 1012

8.9 × 10-15

GESTIN-2TE-TO8 -0500

1000

1.5 × 10-14

GESTIN-2TE-TO8 -1000

300

3.0 × 10-14

GESTIN-2TE-TO8 -2000

80

5.9 × 10-14

GESTIN-2TE-TO8 -3000

40

8.9 × 10-14

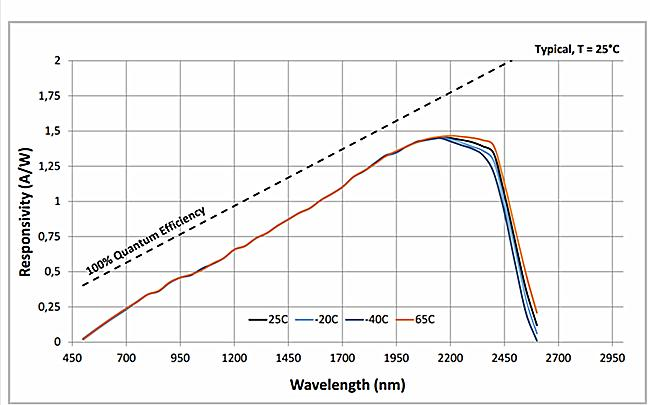

Response Curve






TEC parameters

Operating environment

Parameter

Typ

Operating temperature (℃)

-45~ +55

Storage temperature (℃)

-50~ +60



Characteristics of Thermoelectric Cooler

The detector integrates a two-stage thermoelectric cooler (TEC). The center of the cooling surface is the center of the lower surface of the detector. The cooling area should be ≥6mm×6mm. Its performance parameters are shown in the following table:

Performance indicators

Value

Max. thermal load power (Qmax/W)

0.93W

Max. allowable load current (ITEC-max/A)

1A

Max. allowable load voltage (VTEC-max/V)

2V


Temperature Monitoring Module Characteristics

This detector uses a thermistor as a temperature monitoring module. The mapping between the resistance value and the temperature at the operating temperature is shown in the following table:

Temperature(℃)

Resistance (kΩ)

Temperature(℃)

Resistance (kΩ)

-65

94.270

-15

6.909

-60

69.290

-10

5.587

-55

51.500

-5

4.549

-50

38.700

0

3.729

-45

29.400

5

3.075

-40

22.560

10

2.55

-35

17.490

15

2.126

-30

13.690

20

1.782

-25

10.810

25

1.5

-20

8.608

30

1.268





The corresponding relationship between thermistor value and temperature is as follows:




T1: Test target temperature, in °C;

T2: Reference point temperature, in °C. The typical value of reference temperature in the range of -20~70°C is 10 or 40°C. A reference temperature close to the target temperature should be selected.

R1: Thermistor resistance corresponding to T1, in kΩ;

R2: Thermistor resistance corresponding to T2, in kΩ;

B: Thermistor resistance corresponding to T2, in kΩ;

B: Between 20 and 70 degrees, the typical B value is 3019.6±60.

Note:

a) During TEC installation, please pay attention to the new resistance introduced by the external electrical structure. If the new resistance exceeds 10% of the TEC resistance, the I-V curve needs to be recalibrated.

b) It is recommended to open the TEC in a way that the connection resistance is small. If welding is required, short-circuit grounding protection is required, the welding temperature is ≤250℃, and the welding time is <10s;
