1550nm Phase Modulator 300 MHz

The PM-1550-300-PA phase modulator is a high-performance LiNbO3 modulator with a bandwidth of up to 300 MHz. This modulator provides phase modulation with low driving voltage. Its low insertion loss ensures maximum transmission power. The PM-1550-300-PA modulator uses polarization-maintaining (PM) input and output fibers, making it easy to integrate with other optical components.

Product features：Bandwidth up to 300 MHz 、Operating range: 1525 nm to 1565 nm 、Low insertion loss, typical 3 dB 、Minimal back reflection 、Drive voltage: 4V @ 1 MHz

Application area：Coherent communication 、Optical chirping 、Optical sensing 、FM spectroscopy 、Frequency shifting 、Laser linewidth broadening

Unit Price

Please contact customer service for a discounted quote.

Part Number

PM-1550-300M-PM-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters

Electro-O tical Characteristics (Tsub = 25°C, continuous wave bias, unless otherwise s ecified)

Product Model	PM-1550-300-PA
Waveguide Process	Annealed Proton Exchange (APE)
Integrated Photodiode	No
Operating Wavelength Range	1525nm to 1570nm
Insertion Loss	3 dB typical, 3.5 dB max.
On/Off Extinction Ratio	≥ 21 dB min.
Optical Return Loss	≥ 30 dB
Electrical Parameters
RF Port
Drive Voltage (Vpi)	8 V typ. @ 1 MHz
Electro-Optic Bandwidth @ -3 dB	300 MHz typ., @ -3 dB
RF Return Loss
RF Input Power	+30 dBm max.
RF Impedance
Bias Port
Bias Drive Voltage (Vpi)	N/A
Input Impedance	N/A
Environmental/User Interface
Input Fiber	Panda – PM1550
Output Fiber	Panda – PM1550
Output Fiber Connector	PM FC/APC, can be customized as per client needs
RF Connector	3pin
Bias Connector
Dimensions	3.783”x 0.981” x 0.640”
Operating Temperature Range	-55 ºC to +75 ºC
Storage Temperature Range	-60 ºC to +90 ºC

Phase Modulator Test Report

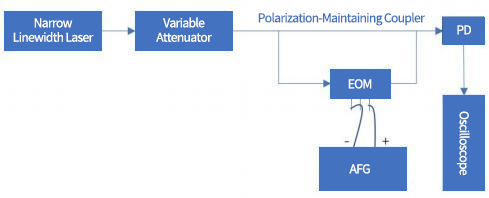

The test optical path diagram is shown below：

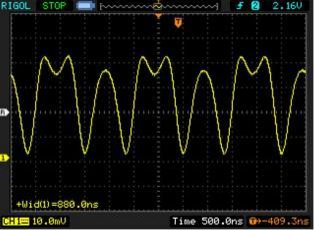

The following results were obtained on the oscilloscope:


The output impedance of the AFG is 50Ω, generating a sine wave signal at 500kHz with an amplitude of 0–3.8V. The 3.8V should represent the half-wave voltage, but a full-wave phase shift is displayed on the oscilloscope, possibly due to an impedance mismatch between the AFG and the product.

Ordering Information

PM-W□□□□-☆-XX

PM: Phase Modulator/IM: Intensity Modulator □□□□: Wavelength

850: 850nm

1064: 1064nm 1310: 1310nm 1550: 1550nm ☆: Bandwidth 300: 300MHz

10G: 10GHz

XX: Fiber and Connector Type

SA = SMF-28E+ FC/APC SP = SMF-28E+ FC/PC PP = PM Fiber+ FC/PC PA = PM Fiber+ FC/APC
