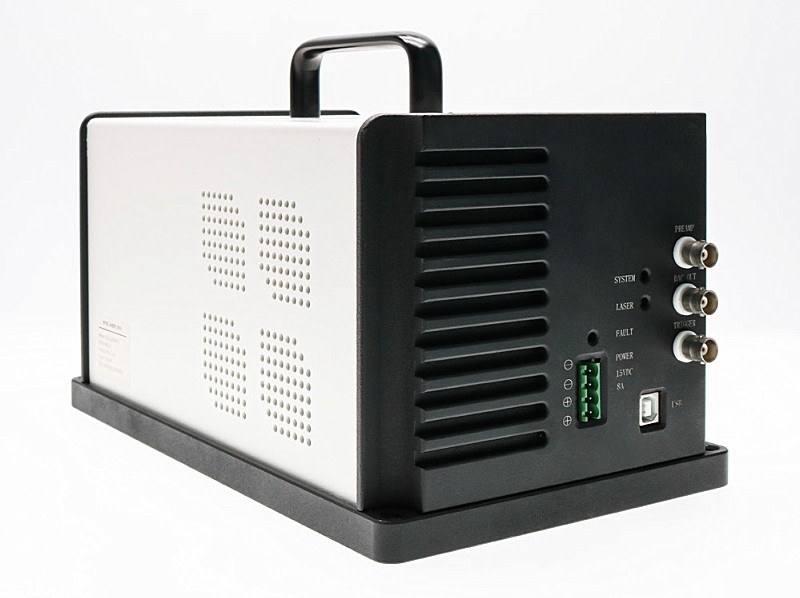

6.83um High power benchtop FP-QCL mid-infrared Quantum Cascade Laser 20mW(benchtop light source)

The 6.83um high-power desktop FP-QCL quantum cascade laser is a continuous light laser developed by us. It has a relatively high output optical power and a collimated output power of several hundred milliwatts, which can meet the light source conditions for mid-infrared testing. In addition, the desktop FP-QCL laser module integrates a driver and temperature control module, and can also use software to control the temperature and operating current of the tuned laser, which can make the laser work stably and maintain the accuracy of the measured values.

Product features：Low power consumption, high power、 High side mode suppression ratio、 Intelligent software control、 Small structure

Application area：Mid-infrared test light source、 Mid-infrared device analysis、 Mid-infrared system light source

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-MIR-QCL-W6830-1-FP-020

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Technical Parameters:

Parameters	Unit	Technical Parameters
		Min	Typ	Max
		6.83umFP-QCL
Collimated laser output power	mW	10	20
Peak operating wavelength	um		6.83
Spectral width (FWHM)	nm		3
Output side mode suppression ratio (SMSR)	dB	30
Output isolation	dB		30
Wavelength temperature coefficient	nm/℃		0.6
Wavelength current coefficient	nm/mA		0.2
Output power stability (8 hours)	%		±1	±4
Output power adjustable range	%	0		100
TEC operating range	℃	0		50
Operating voltage	VAC	100	220	240
Operating temperature	℃	0		55
Storage temperature	℃	-20		65
Specifications and dimensions	mm	343(L)×193(W)×180(H) Benchtop

Technical indicators:

1. Output power is optional;

2. Peak operating wavelength is optional;

3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

4. Maximum power consumption refers to the overall power consumption under extreme working conditions.

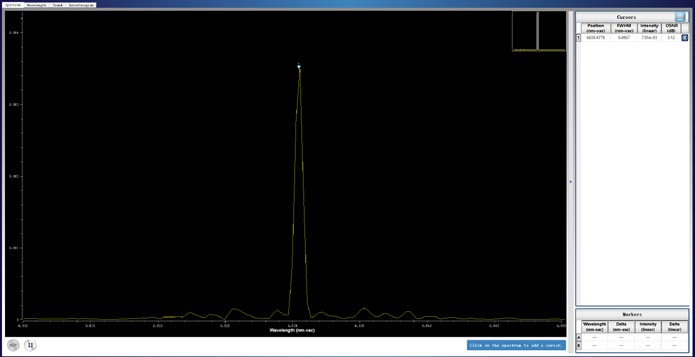

1. Spectrum（15℃、280mA）:

2. Power curve (5℃):

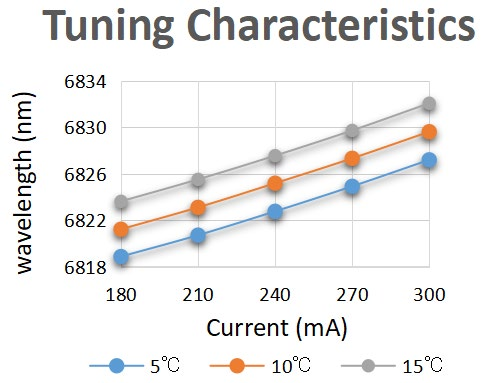

3. Wavelength temperature current tuning curve:

Order Info:

MIR-QCL- W□□□□ -☆-△-XX

W□□□□：Wavelength

4000:4000nm

4600:4600nm

6300:6300nm

6830:6830nm

9000:9000nm

☆ ：Collimated output

1：with

0: without

△：Laser Type

FP:QCL-FP

DFB:QCL-DFB

XX: Output Power

001=1mw

020=20mw

250=250mw

400=400mw

1000=1000mw
