Multimode Fiber Coupled High-Power Pump Laser

The MHPL-XXX high-power laser source is based on high-performance semiconductor laser chips, with output coupled to 105/125um multimode optical fibers. The laser is designed with a constant current drive and temperature control circuits to ensure stable and safe operation. Some models feature wavelength locking, providing spectral stability within ±3nm. This laser source is suitable for applications in medical research, fiber laser pumping, and other production testing processes. It is available in both desktop and modular packaging and comes with PC-based monitoring software.

Product features：High Output Power、 Stable Power and Spectral Performance、 Available in Modular or Desktop Packaging

Application area：Fiber Laser Pumping、 Biomedical Applications、 Material Laser Processing

Unit Price

Please contact customer service for a discounted quote.

Part Number

MHPL-915-10-MM-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Unit	Typ.		Notes
Operating Wavelength	nm	793/808/976	915
Wavelength Accuracy	nm	±3	±10

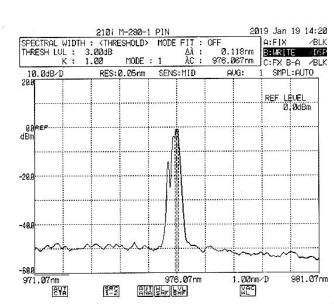

Spectral Width	nm	3	6
Operating Mode	-	CW		Continuous Light
Output Power	W	5、10、25		Customizable
Short-Term Stability (15 min)	dB	≤ ±0.02		Equivalent≤±0.5%
Long-Term Stability (8 h)	dB	≤ ±0.05		Equivalent≤±1.2%
Pigtail Type	-	105/125μm Multimode Fiber，NA= 0.22
Pigtail connector type	-	Bare Fiber		Optional Fiber Collimator

Electrical and Environmental Parameters	Benchtop	Module
Control Method	Keypad	RS232 Serial Communication
Communication Interface	Optional	DB9 Female
Power Supply	100~240VAC, <120W	12V DC, <60W
Dimensions	260(W)×320(D)×120(H)mm	125(W)×150(D)×30(H)mm
Operating Temperature Range	-5~+35°C
Operating Humidity Range	0~70%


Ordering Info

Ordering info/PN#
MHPL	Operating Wavelength(nm)	Output Power(W)	Output Pigtail Type	Package Type
MHPL	793/808/915 /976/1064	5/10/25	MM=105/125μm Multi-mode Fiber	B=Benchtop M=Module
