1950 nm 45°Faraday Rotators

Faraday rotator is a device that realizes precise non-reciprocal rotation of laser polarization. It provides non-reciprocal rotation while maintaining the linear polarization of the beam. In combination with a polarizer, it can block the return light in the optical path and realize a device that realizes precise non-reciprocal rotation of laser polarization. Faraday rotators provide non-reciprocal rotation while maintaining the linear polarization of the light beam. When light passes through the Faraday rotator in a certain direction, the polarization state will rotate 45°; when the light beam passes through the Faraday rotator in the opposite direction, the polarization state will rotate another 45° in the same direction relative to the magnetic field. Based on this principle, in combination with a polarizer, the return light in the optical path can be blocked. The Faraday rotator we provide is made of magneto-optical crystal with high Verdet constant and low absorption coefficient, with high reliability and small M2 degradation. Combined with high damage threshold technology, the average power of the product can reach 500W Max., with a wavelength range of 355 nm-4500nm.

Product features：Rotate the polarization plane of incident light by 45°、 High Wildeland constant magneto-optical crystal, low loss、 Can be used with a polarizer to block the return light in the optical path

Application area：Laser sensing system、 Ultrafast laser system、 OCT system、 Laser detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

R155195NA01

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters:

Typical indicator reference
Clear Aperture	Wavelength	Extinction Ratio	Rotation Angle	Withstand Power*	Transmittance
2-15 mm	355-1080 nm	> 30 dB	45±0.5°	100 W	> 98 %
2-10 mm	1310-4500 nm	> 30 dB	45±0.5°	100 W	> 98 %
15-20 mm	600-1080 nm	> 30 dB	45±1°	500 W	> 98 %
The operating temperature range of the product is 10℃-30℃. *Indicates the maximum average power that the product can withstand.

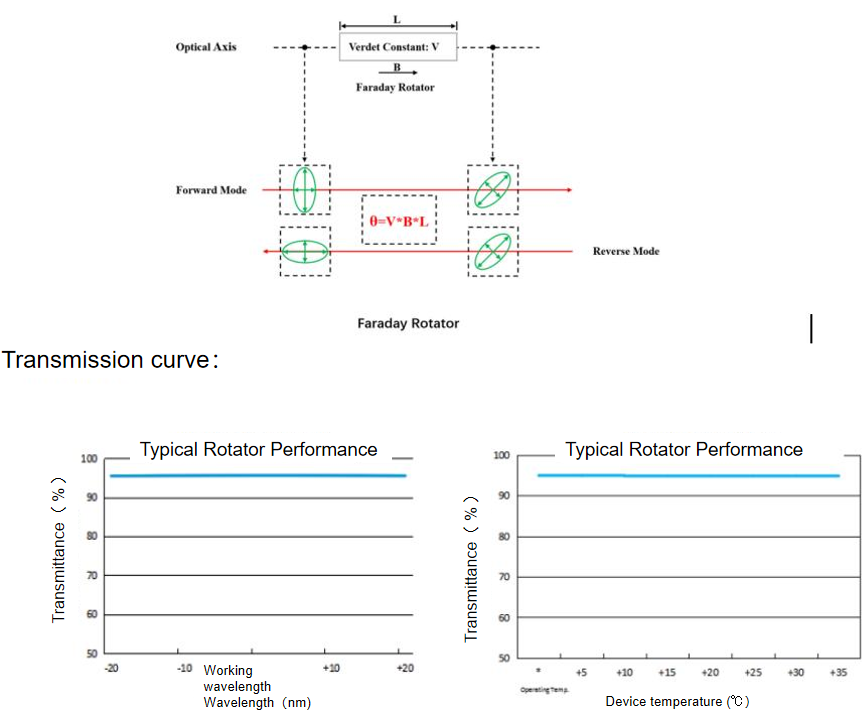

Working Principle Diagram
