1560nm PPLN Waveguide Frequency Conversion Module
1560nm PPLN Waveguide Frequency Conversion Module

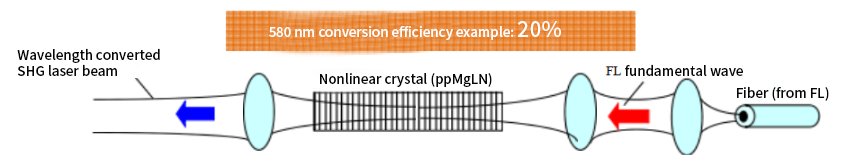

Optical frequency doubling is widely used in laser technology to convert infrared lasers to visible light or shorten visible wavelengths. It expands laser spectrum coverage and can involve multi-stage frequency doubling for even shorter wavelengths. Ideal Photonics’ nonlinear crystals enable sum-frequency, difference-frequency, and frequency doubling. The 1560nm PPLN (Periodically-Poled Lithium Niobate) crystal, for example, uses second-order nonlinear effects to convert 1560nm light to 780nm for optical second-harmonic generation (SHG). This process is achieved through the crystal’s waveguide structure, which increases efficiency, with polarization-maintaining jumpers pre-coupled at both ends for easy integration without manual coupling.
Product features:Laser Microscopes、 Fluorescence Microscopes、 Flow Cytometers、 Various Spectroscopy Applications、 Physical and Chemical Applications
Application area:
Unit Price
Please contact customer service for a discounted quote.
Part Number
WH-0780-000-F-B-C
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

General Parameters

Built-in Mechanism

Option

Peltier and thermistor for temperature control

Fiber laser source for each wavelength

SWPF filter for fundamental wave cutting

External crystal temperature control driver

PD for light intensity monitoring

External safety shutter


External acousto-optic modulator (AOM)









Current Supported

Wavelength Conversion

1178nm 589nm  1064nm 532nm  1590nm 795nm, 1560→ 780n m , 1160nm-580nm  1550nm-775nm, 1396nm-698nm, 1018nm-509

nm

Output Power*

Up to 1W (spatial output)

Output form

Collimated light or fiber

Beam quality

Spatial single-mode  ,  TEM00, M ²  1.1

*(Note: Output power may vary depending on the characteristics of the input pump laser, such as power and linewidth.)




Name

Parameter (Space Out)

Parameter ( Fiber Coupled Output)

Order Model

WH-0780-000-A-B-C (space out)

WH-0780-000-F-B-C (fiber out)

Required Pump Wavelength

1560 nm

1560 nm

Frequency Doubling Target Wavelength

780 nm

780 nm

Frequency Doubling Efficiency

> 50 %/W

> 25%/W

When pump power is below 100 mW

When pump power is below 100 mW

Operating Temperature (Top)

Typ.:  > 30 degree C

Typ.:  > 30 degree C

Temperature fine tuning is required.

Temperature fine tuning is required.

Thermistor

B = 3450

B  = 3450

TEC  Current

2 A max

2 A max

Module Size

54 mm x 30 mm x  11.2 mm

54 mm x 30 mm x  11.2 mm

Output Window

IR-cut filter

none

Input Fiber

1550  nm PANDA fiber with  FC / APC connector

1550 nm PANDA fiber with FC / APC connector

Output Fiber

Space out

850 nm PANDA fiber with  FC / APC connector

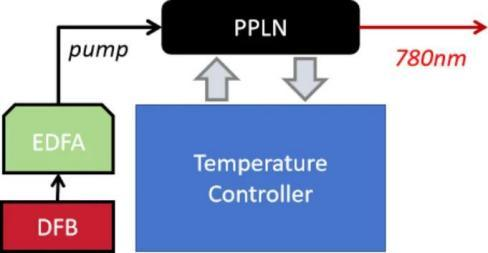

Optical Layout for the Use of PPLN Frequency Doubling Crystal



Test example: 1560  780nm

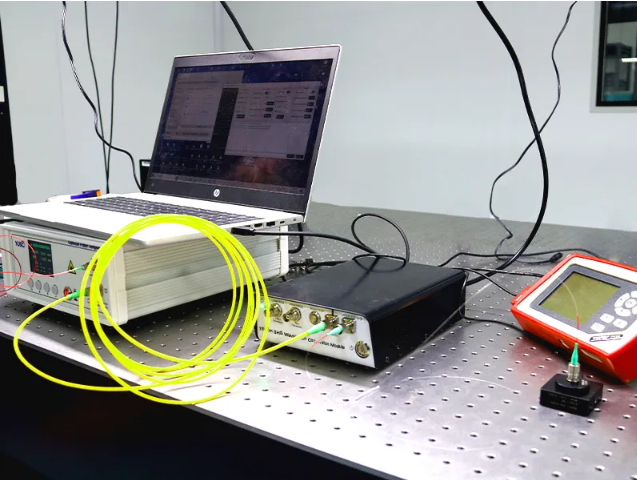

First, select a 1560nm DFB semiconductor laser as the seed source and input it into an EDFA for optical amplification. The amplified fundamental wave light is then used as the pump source for the PPLN crystal. The light is input into the crystal's input port, and after passing through the PPLN, the frequency-doubled 780nm light is generated. Before injecting the pump, it is essential to ensure that the temperature controller of the PPLN is functioning properly and that the crystal is stable at the set temperature.

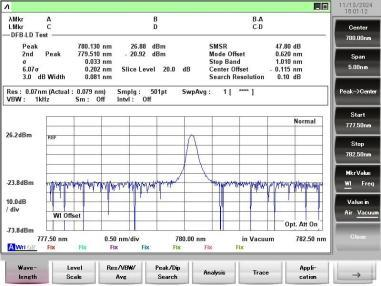

The 780nm output spectral component was tested using a spectrometer to confirm the frequency doubling process. The spectrum is shown below:

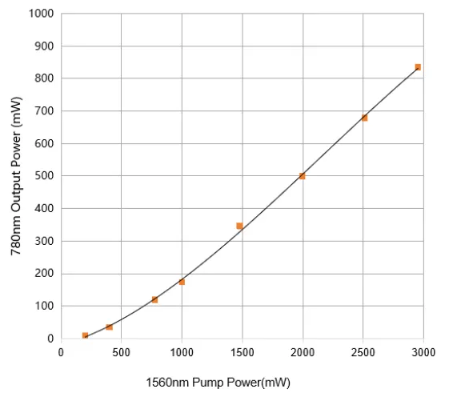

By adjusting the EDFA current, we tested the frequency doubling power variation with different input powers. Higher input power results in higher frequency doubling efficiency.

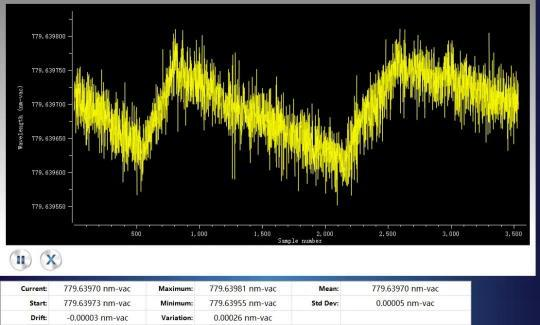

Finally, we tested the power and frequency stability of the output frequency-doubled light, verifying the operational stability of the PPLN crystal. These two parameters also depend on the noise of the EDFA and DFB, requiring a low-noise light source for testing.

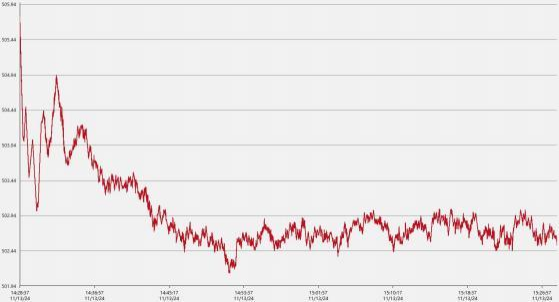

Power stability test:







Precautions:

The waveguide must be properly heat managed. It is recommended to mount the waveguide on a heat sink, with thermal conductive materials like thermal grease applied to the contact surface between the waveguide and the heat sink. The    recommended operating environment temperature is 10~30°C. If the temperature is outside this range, secondary temperature control for the heat sink should be applied, setting the heat sink temperature around 20°C. It is strictly prohibited to operate without secondary temperature control in environments exceeding the waveguide's matching   temperature.

The matching temperature of the waveguide body must be in the range of 20~60°C.

Start the waveguide's temperature control first, wait for the temperature to stabilize, and then slowly increase the pump   power. As the pump power increases, the optimal matching temperature of the waveguide may shift slightly. At this point, fine-tune the waveguide temperature to achieve maximum frequency-doubling output.
