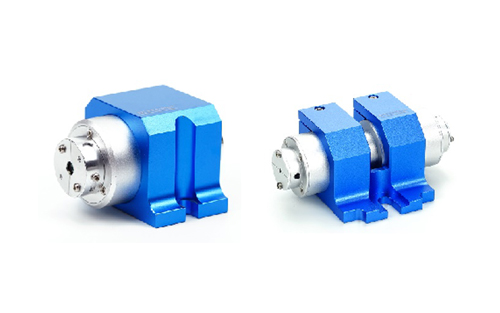

1064nm Large Aperture Free-Space Optical Isolator

The HPISO-FS-100-12-1064-C-A09 free-space isolator is available in two types: polarization-dependent and polarization-independent. The polarization-dependent isolator, also known as the Faraday isolator, is composed of three parts: a polarizer, a Faraday rotator, and an analyzer (with its polarization axis at 45° to the polarizer's axis). The polarization-independent isolator typically consists of a birefringent crystal (or polarizer), a Faraday rotator, and a half-wave plate. It is commonly used in fiber lasers and effectively maintains the stability of optical systems. The isolator uses high-quality magneto-optic crystals, offering characteristics such as low absorption, high extinction ratio, and low loss. It delivers outstanding and reliable performance, with a maximum peak isolation of 45 dB, an aperture of up to 45 mm, and a typical transmission of up to 95%. Customizations are available upon request.

Product features：

Application area：Laser Precision Processing、 Laser Sensing Systems、 Ultrafast Laser Systems、 OCTSystems、 Laser Detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

HPISO-FS-100-12-1064-C-A09

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Model Parameters

1. Specifications
Wavelength	1064nm± 10nm
Peak Isolation@23℃	>30dB
Transmission	>93%
Optical Power(Average)	100W
Clear Aperture	12mm
Damage Threshold	10J/cm2 @ 1064nm, 10ns, 10Hz
Input Polarization	Horizontal
Output Polarization	Horizontal
Operating Temperature	10-30℃
Storage Temperature	-10-60℃

Model: HPISO-FS-100-12-1064-C-A09

Reliability Test

Test Item	Condition	Frequency	Sampling
High-low temperature cycle test	Temperature -20℃~ 70℃, total time ≥24 hours	1 / batch	/

Polarization State Reference:

● All models of free-space isolators will non-reciprocally rotate the polarization state by 45° along the polarization plane.

● Additional 1/2 waveplates can be provided upon request to alter the output polarization state.

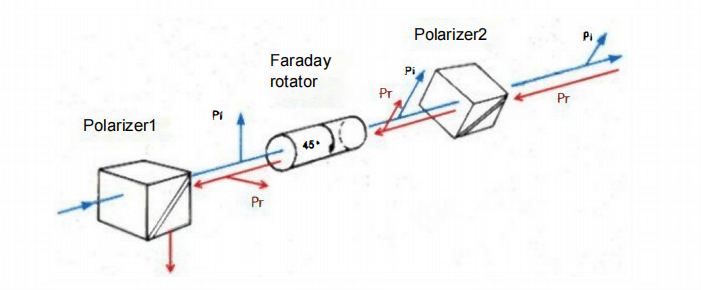

Polarization-Dependent Isolator Beam Selection:

● Forward Transmission Polarization State Beam (Pi)

● Reverse Transmission Polarization State Beam (Pr)

A04 (Aperture ≤ 5mm) package

Polarization-Dependent Isolator Model：HPISO-t-p-a-λ-w-h
Type(t)	Power(p)	Aperture(a)	Wavelength(λ)	Waveplate(w)	Package(h)
FS (Typical) DS (Dual-stage) AB (Adjustable bandwidth)	1W 5W 30W 50 W 100 W 500W ...	2 mm 3 mm 4 mm 5 mm 8 mm 10 mm 12 mm 15 mm 25 mm 45 mm ...	550-880nm* 355 nm 405 nm 532 nm 633 nm 780 nm 850 nm 980 nm 1030 nm	C (Contain) N (Not Contain)	A03* A04 A06 A08 A23 A31 ...
			1064 nm 1319 nm 1550 nm 2000 nm 4500 nm ...

*Only applicable to the adjustable bandwidth type

**500 W is only applicable under the 1030/1064 nm wavelength condition.

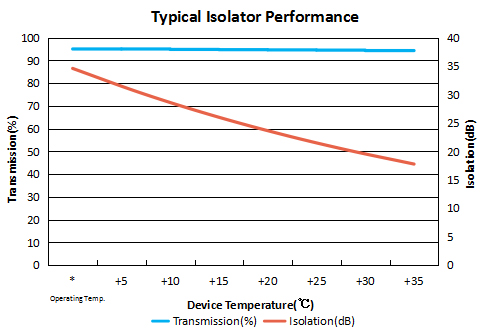

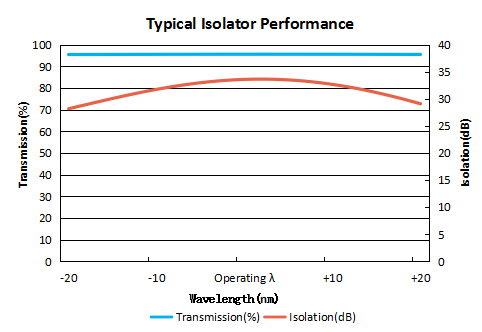

Typical indicator reference
Aperture Size	Damage Threshold	Power Handling	Transmission	Peak Isolation
2~15 mm	3J/cm² at 10ns @(532~980)nm	50 W	>93%, ＞90%*	>33 dB, >45 dB*
2~10 mm	10J/cm² at 10ns @(1319~2000)nm	50 W	>93%	>33 dB
15~25 mm	10J/cm² at 10ns @1030/1064nm	500W	>93%	>33 dB

The operating temperature range for the product is 10°C to 30°C.

* Only applicable to conventional isolators.

**Only applicable to dual-stage isolators.

Packaging Dimension Diagram (mm)

A04 (Aperture≤5mm)


A46 (Compact, 1064nm)


Polarization-Insensitive Model：HPISO-t-p-a-λ-w-h

Type(t)

Power(p)

Aperture(a)

Wavelength(λ)

Wavelength(w)

Waveplate(h)

(Polarization-Insensitive)

50 W

100 W

500 W

1000 W

...

1.5 mm

5 mm

8 mm

...

980 nm

1030 nm

1064 nm

...

C
(Contain)

N
(Not Contain)

A16 A29 A38 A41

...

Typical Specifications Reference
Aperture	Damage Threshold	Power Handling	Transmission	Peak Isolation
1.5 mm	10J/cm² at 10ns @(980~1064)nm	50 W	>93%	>33 dB
5 mm	10J/cm² at 10ns @(980~1064)nm	100 W	>93%	>33 dB
8 mm	10J/cm² at 10ns @(980~1064)nm	1000 W	>93%	>33 dB

* The operating temperature range for the product is 10℃-30℃


Packaging Dimension Diagram (mm)

A16 (Aperture≤5mm)


A41(Aperture≤8，water-cool)
