Athermal Package 1550nm Dispersion Compensation Grating Filter (Dispersion Compensation 16.675 psnm)

In fiber optic telecommunication systems, dispersion effects must be corrected for data rates of 10Gb/s or higher. Applying its expertise in fiber Bragg gratings, we offer dispersion compensating grating filters model OEDCG-100 to correct for dispersion. Dispersion compensating grating filters feature small size, low insertion loss and customized dispersion slope. Our unique fiber Bragg grating apodization technology enables us to manufacture dispersion compensating grating filters with high isolation, low side lobes and low ripple. The figure below is the reflection spectrum of our dispersion compensating grating filter. All fiber Bragg gratings are tested to ensure that they meet the highest quality standards. Technical support is available to meet each customer's specific application: from prototype development to full product manufacturing.

Product features：Central wavelength on the ITU grid、 Non-thermal packaging、 Comprehensive engineering support

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

OEDCG-100-16

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General parameters

Parameter	Unit	Value
Wavelength	nm	1520 - 1565
Dispersion compensation	ps/nm	700 - 1400 (customized 16.675 ps/nm or 28.5857ps/nm)
FWHM Bandwidth	nm	1.0 - 0.5
Ripple	ps	± 20
Insertion loss	dB	< 0.5

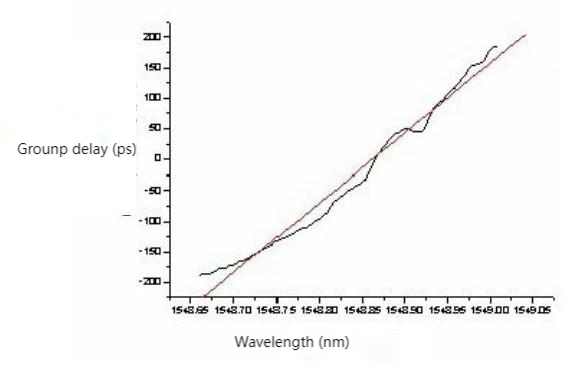

Figure 1: Dispersion curve of OEDCG-100

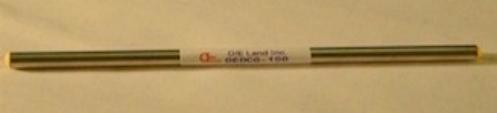

Figure 2 : Dispersion-compensating fiber Bragg gratings using a thermal packaging

To manufacture and sell Fiber Bragg Grating products, you need a Fiber Bragg Grating license. We have a full license agreement from the CRC/UTC Fiber Bragg Grating Technologies Portfolio. Customers who use Fiber Bragg Gratings or incorporate Fiber Bragg Gratings into their products must purchase Fiber Bragg Gratings from a manufacturer that has a Fiber Bragg Grating license.
