M1x8 Magneto-Optical Switch

The M1x8 optical switch operates by either connecting or blocking optical signals to achieve optical path switching. This switch features a non-mechanical configuration and is activated by an electrical control signal. Additionally, the switch integrates a built-in circulator and isolator functionality. It is widely used in aerospace and military equipment.

Product features：Solid-state, high-speed operation、 High stability and reliability、 No epoxy resin in the optical path、 Fault-safe locking mechanism

Application area：Aerospace equipment、 Configurable add/drop functionality、 System monitoring、 Sensing systems

Unit Price

Please contact customer service for a discounted quote.

Part Number

LP-M1x8-B-S-2.5-1550-900-10-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

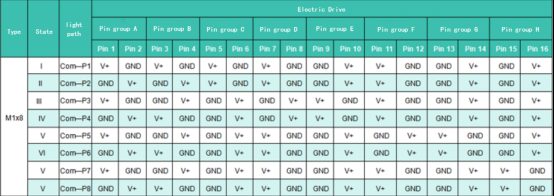

Dimensional Drawing

Performance Specifications

Parameter	Unit	Specification
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss 1, 2	dB	≤ 2.0
TDL	dB	≤ 0.30
PDL	dB	≤ 0.20
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 40
Repeatability	dB	≤ ±0.01
Switching Time	us	≤ 100
Pulse Duration	us	≥ 200
Durability	Cycles	≥10 Billions
Switch Type	NA	Latching
Operating Current	mA	≤ 200
Maximum Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Dimensions	mm	(L)40.0 × (W)33.0 × (H)7.5 ±0.2
Note: 1. Tested under room temperature and standard operating conditions (SOP). 2. Excludes connectors, a pair of connectors adds 0.2dB.

Functional Diagram

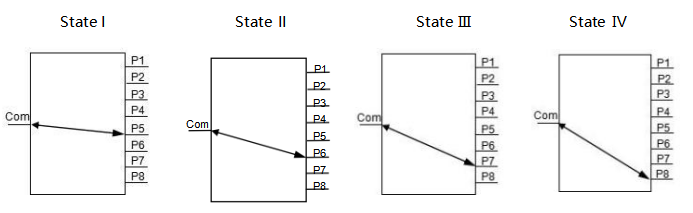

Bidirectional States

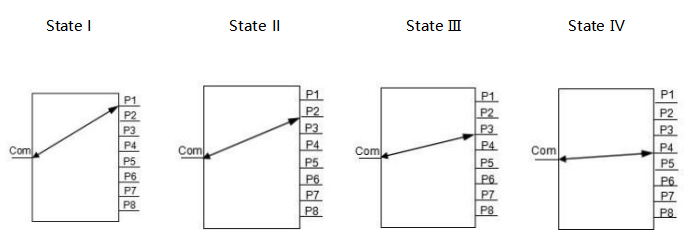

Unidirectional States


Ordering Reference Information

LP-M1x8-□-□-□-□-□-□-□

—□

Switch Type

Fiber Type

Voltage

Wavelength

Loose Tube Type

Fiber Length

Connector

B：

Bidirectional

SM：

SM ，9/125

X：

Others

2.5：

2.5V

X：

Others

1550：

1550nm

X：

Others

250：

250um

900：

900um

X：

Others

05：

0.5m±5cm

10：

1.0m±5cm

X：

Others

OO：None

FC：FC/PC

FA：FC/APC

SC：SC/PC

SA：SC/APC

LC：LC/PC

X：Others
