C-Band Single Mode MEMS Attenuator

Multimode/single mode variable attenuator Based on Idealphotonics' unique optical design and processing capabilities, our VOA has the characteristics of being able to quickly adjust optical attenuation, small size, low insertion loss, low polarization-related loss, high mode-related stability and high reliability. It is mainly used in multimode transmission networks, power balancing, product testing, and related instruments and equipment. Insertion loss ≤1.0 dB Fiber connector FC/APC connector

Product features：Wide operating wavelength range & wide temperature range、 Low insertion loss、 Low polarization-dependent loss and polarization mode dispersion、 High reliability and stability、 Telcordia GR-1221 & GR-1209

Application area：Multimode product testing、 Multimode transmission network、 Power balancing、 Receiver protection、 Related instruments and equipment

Unit Price

Please contact customer service for a discounted quote.

Part Number

MEMS-VOA- WC-1-9-SMA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Unit	Single mode	Multi-mode
Attenuation type	nm	Bright or Dark
Wavelength	nm	O/C/L band or1250-1650	850±30nm 1310±30nm
Attenuation range	dB	≥40/45	≥30
Insertion loss（IL）	dB	≤0.6	≤0.6
Return loss	dB	≥50	≥30
Repeatability	dB	≤0.03dB@ATT≤20dB
PDL1	dB	≤0.2@10dB
PDL2	dB	≤0.5@20dB
Operating temperature	℃	-5~70
Storage temperature	℃	-40~85
Switching speed	ms	≤3
Lifespan	Cycle	≥1x109
Maximum optical power	mW	≤500
Drive voltage	V	0~7V	0~9V
Fiber and sleeve type	Made according to customer requirements
Fiber length	Made according to customer requirements
Connector type	Made according to customer requirements

Item	Optical performance			Specification	Note
1	Attenuator type	Bright or Dark		Bright	Bright:Minimum insertion lloss@0V
					Dark:Maximum attenuation@0V
2	Operating wavelength	nm		Multimode：850±30nm1310±30nm	Single-mode：O/C/L band or 1250-1650
3	Attenuation range	Min	dB	Multimode：≥30； Single-mode：≥40	Operating voltage：≤±9V，Square wave
4	Insertion loss	Max	dB	1
5	Repeatability@20dB	Max	dB	0.1
6	Mode-dependent loss @20dB20Minute	Max	dB	0.2
7	Return loss	Min	dB	30
8	Response time	Max	ms	3
9	Maximum optical power	Max	mw	500
Electrical performance				Specification
1	Drive Voltage（AC）	Max	V	Single mode：0-7V，Multimode：0-9V
2	Power consumption	Max	mw	10
Mechanical performance				Specification
1	Fiber type			50/125um、62.5/125um，SMF-28E
	Lifespan	Min	Cycle	≥1x10⁹
2	Fiber Length	Min	m	1

Notes:

*. All indicators are without connectors and are only valid at the above wavelengths, polarization states and temperatures.

**. Indicators are subject to change without prior notice.

Recommended applications

A 5:95 beam splitter is connected to the back end of the multimode VOA, where the 5% port output is connected to the multimode PD, which is the monitoring end, and the 95% port is directly output, which is the output end.

Data is reversed through the monitoring end to control the output voltage so that the output end reaches the set attenuation value.

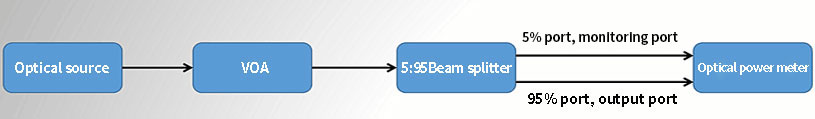

Test block diagram

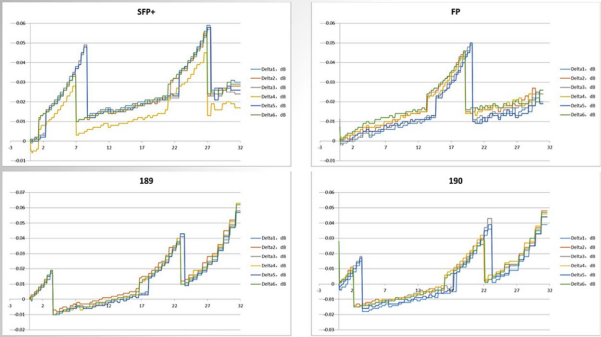

Test Data---Attenuation accuracy

1. The horizontal axis is the attenuation value

2. The vertical axis is: the difference between the attenuation value estimated by the monitoring end and the actual attenuation value of the output end.

Recommended power supply conditions

1. Continuous square wave drive, frequency: 5KHZ, waveform: square wave

2. Peak-to-peak value: 0-35V, duty cycle: 50%

Ordering Information

MEMS-VOA- W□□□□ -☆-△-XX

W□□□□：Wavelength

850:850nm

1310:1310nm

1550:1550nm

1570:1570nm

1650:1650nm

O/C/L: O/C/L Band

☆ ：Pigtail Length

05:0.5m

1：1m

10:10m

△：Loose Tube

B:Bare Fiber

9:900um Loose Tube

20:2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

S5A=MM50/125+ FC/APC

S5P= MM50/125+ FC/PC

S6A=MM62.5/125+ FC/APC

S6P= MM62.5/125+ FC/PC

SMA=SM Fiber+FC/APC

SMP=SM Fiber+FC/PC
