Parameters
Parameter | Unit | Single mode | Multi-mode |
Attenuation type | nm | Bright or Dark | |
Wavelength | nm | O/C/L band or1250-1650 | 850±30nm 1310±30nm |
Attenuation range | dB | ≥40/45 | ≥30 |
Insertion loss(IL) | dB | ≤0.6 | ≤0.6 |
Return loss | dB | ≥50 | ≥30 |
Repeatability | dB | ≤0.03dB@ATT≤20dB | |
PDL1 | dB | ≤0.2@10dB | |
PDL2 | dB | ≤0.5@20dB | |
Operating temperature | ℃ | -5~70 | |
Storage temperature | ℃ | -40~85 | |
Switching speed | ms | ≤3 | |
Lifespan | Cycle | ≥1x109 | |
Maximum optical power | mW | ≤500 | |
Drive voltage | V | 0~7V | 0~9V |
Fiber and sleeve type | Made according to customer requirements | ||
Fiber length | Made according to customer requirements | ||
Connector type | Made according to customer requirements |
Item | Optical performance | Specification | Note | ||
1 | Attenuator type | Bright or Dark | Bright | Bright:Minimum insertion lloss@0V | |
Dark:Maximum attenuation@0V | |||||
2 | Operating wavelength | nm | Multimode:850±30nm1310±30nm | Single-mode:O/C/L band or 1250-1650 | |
3 | Attenuation range | Min | dB | Multimode:≥30; Single-mode:≥40 | Operating voltage:≤±9V,Square wave |
4 | Insertion loss | Max | dB | 1 | |
5 | Repeatability@20dB | Max | dB | 0.1 | |
6 | Mode-dependent loss @20dB20Minute | Max | dB | 0.2 | |
7 | Return loss | Min | dB | 30 | |
8 | Response time | Max | ms | 3 | |
9 | Maximum optical power | Max | mw | 500 | |
Electrical performance | Specification | ||||
1 | Drive Voltage(AC) | Max | V | Single mode:0-7V,Multi-mode:0-9V | |
2 | Power consumption | Max | mw | 10 | |
Mechanical performance | Specification | ||||
1 | Fiber type | 50/125um、62.5/125um,SMF-28E | |||
Lifespan | Min | Cycle | ≥1x109 | ||
2 | Fiber Length | Min | m | 1 |
Notes:
*. All indicators are without connectors and are only valid at the above wavelengths, polarization states and temperatures.
**. Indicators are subject to change without prior notice.
Recommended applications
A 5:95 beam splitter is connected to the back end of the multimode VOA, where the 5% port output is connected to the multimode PD, which is the monitoring end, and the 95% port is directly output, which is the output end.
Data is reversed through the monitoring end to control the output voltage so that the output end reaches the set attenuation value.

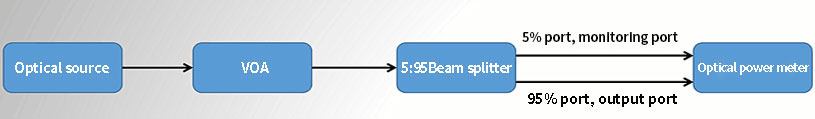

Test block diagram

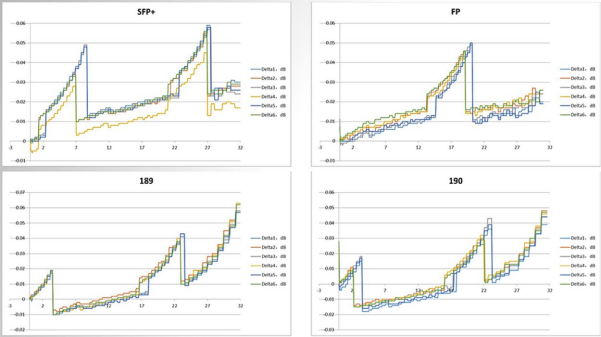

Test Data---Attenuation accuracy
1. The horizontal axis is the attenuation value
2. The vertical axis is: the difference between the attenuation value estimated by the monitoring end and the actual attenuation value of the output end.
Recommended power supply conditions
1. Continuous square wave drive, frequency: 5KHZ, waveform: square wave
2. Peak-to-peak value: 0-35V, duty cycle: 50%
Ordering Information
MEMS-VOA- W□□□□ -☆-△-XX
W□□□□:Wavelength
850:850nm
1310:1310nm
1550:1550nm
1570:1570nm
1650:1650nm
O/C/L: O/C/L Band
☆ :Pigtail Length
05:0.5m
1:1m
10:10m
△:Loose Tube
B:Bare Fiber
9:900um Loose Tube
20:2mm Loose Tube
30: 2mm Loose Tube
XX: Fiber and Connector Type
S5A=MM50/125+ FC/APC
S5P= MM50/125+ FC/PC
S6A=MM62.5/125+ FC/APC
S6P= MM62.5/125+ FC/PC
SMA=SM Fiber+FC/APC
SMP=SM Fiber+FC/PC
