Fabry-Perot (F-P) etalon (100GHz finesse: 40) WLFE-2-1550-100-40-SM-0.9/1.0-FC/APC

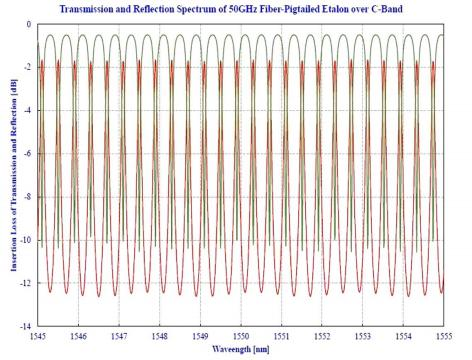

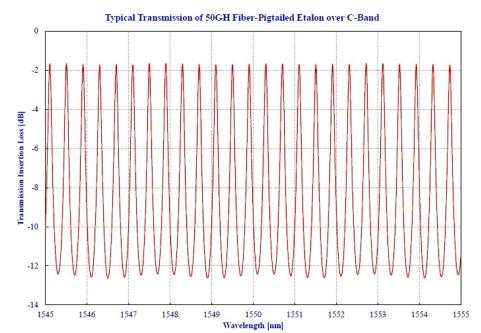

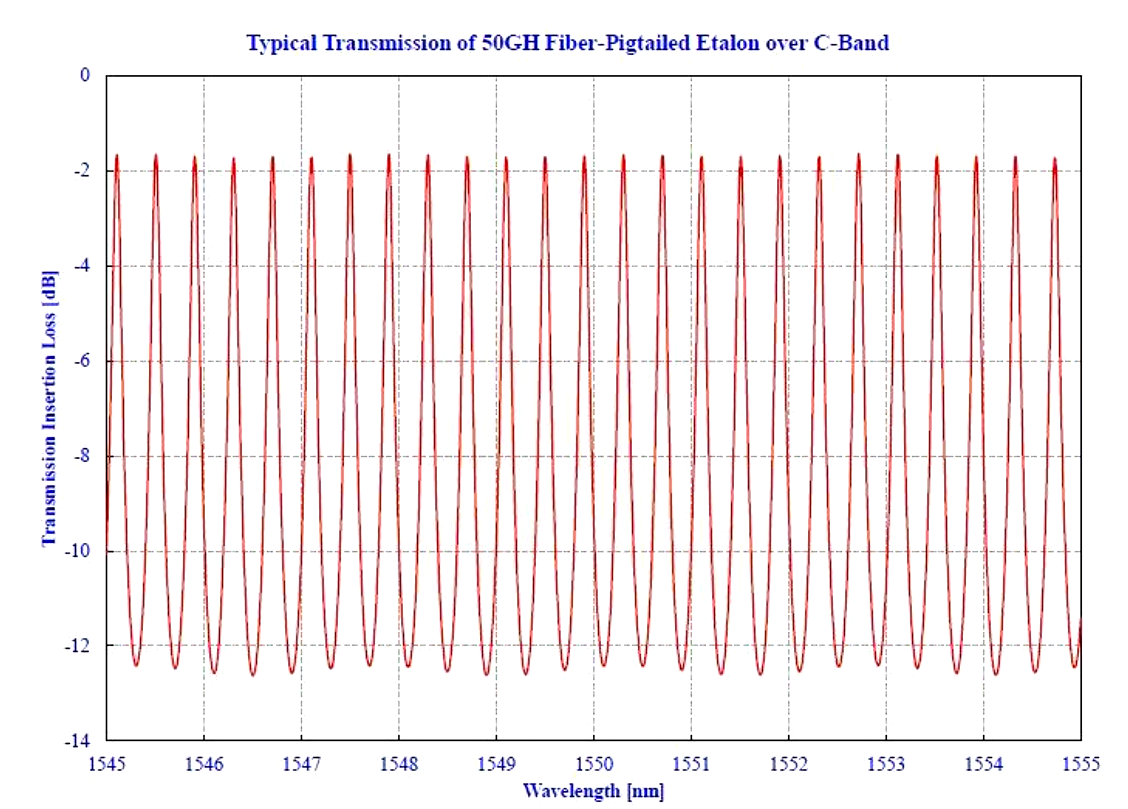

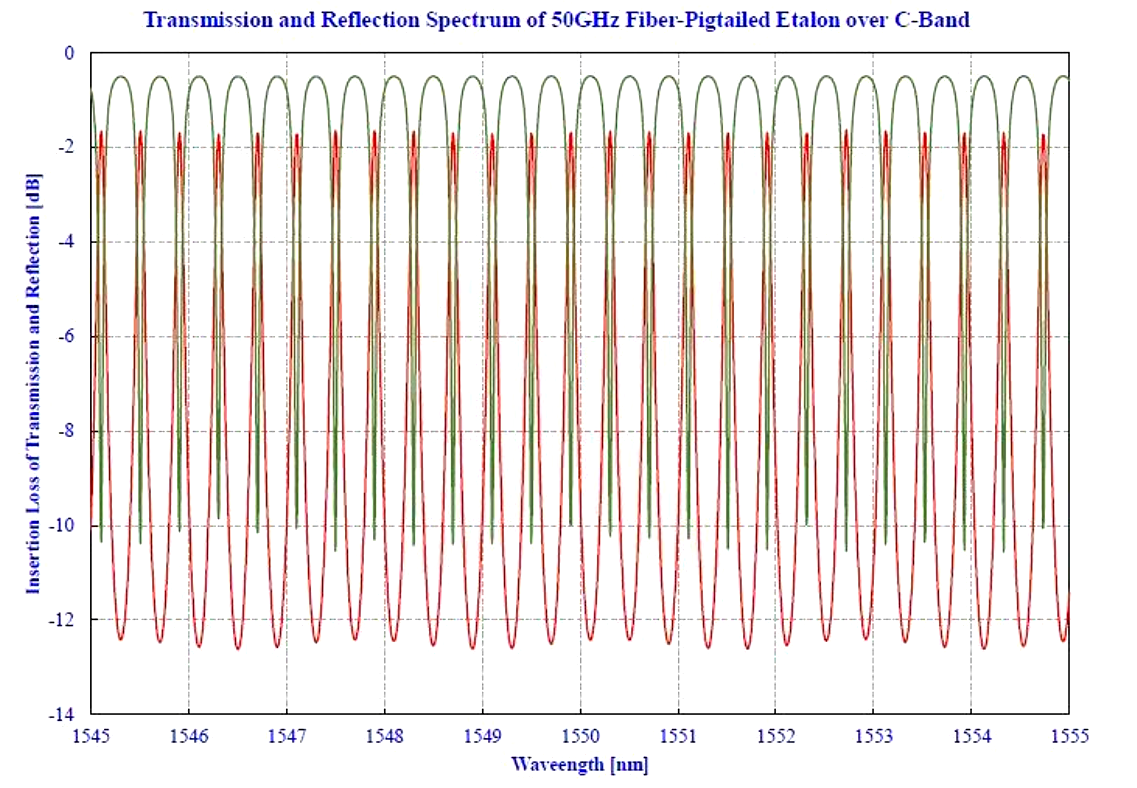

Idealphotonics' Fabry-Perot etalons are based on free-space Fabry-Perot etalons. They provide periodic wavelength comb transmission. They include 2-port transmission type, 3-port transmission/reflection type and 4-port transmission type. The 2-port type provides a transmission spectrum, the 3-port type provides transmission and reflection spectra, and the 4-port type provides a phase delay (when the same signal is input into the two input ports, there is a phase delay at the two output ports). Our company's Fabry-Perot etalon wavelength can cover the C-band, including single mode and polarization-maintaining fiber. The free-space range (FSR) and finesse (F) of the etalon can be customized according to customer requirements. Widely used in optical communications, fiber grating sensors, and tunable fiber laser.

Product features：Available in X, O, S, C and L bands、 Compact passive package、 Low insertion loss、 SM or PM fiber pigtails、 High optical power handling

Application area：Wavelength lockers、 Wavelength division multiplexing telecommunication networks、 Handheld spectrum analyzers、 Fiber Bragg grating sensing systems、 Tunable filter lasers、 Tunable filters

Unit Price

Please contact customer service for a discounted quote.

Part Number

WLFE-2-1550-100-40-SM-0.9/1.0-FC/APC

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parament	Value
Central wavelength	1550nm(customizable）
Spectral width	40nm
Typical FSR	25, 50, 100GHz （customizable）
Typical FSR tolerance	±0.005GHz for 100GHz FSR
Fineness	2.5~40
Insertion loss	<0.8dB
Polarization Dependent Loss（PDL）	<0. 15dB
Extinction Ratio（ER）	>20dB (PM Fiber)
Return loss	>45dB
Phase delay	0 to λ/4 (for 4-port device only)
Maximum input power	500mW (CW)
Operating temperature	10 to 50 °C
Storage temperature	-20 to 75 °C
Dimension	Ø5.5 x 35mm (L) or 40mm (L)
