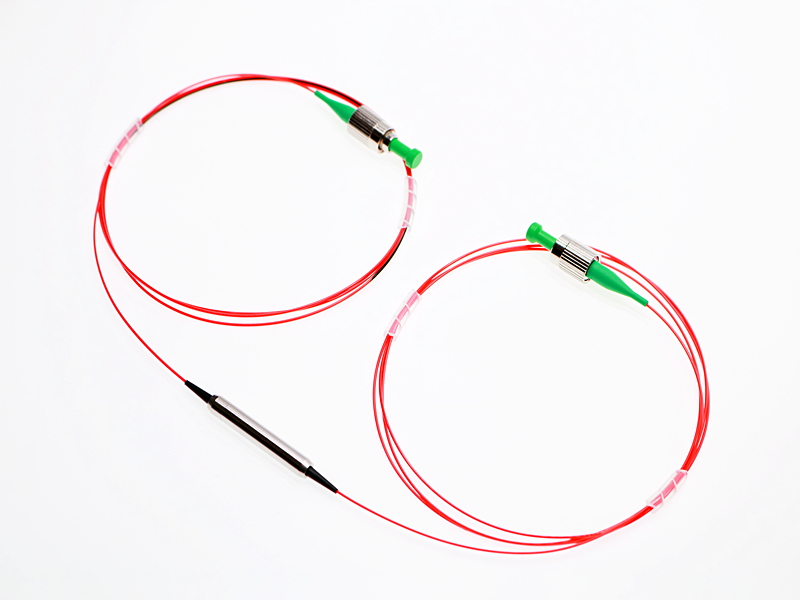

2W 1550nm single-mode single-stage fiber optic isolator, isolation 29dB

Idealphotonics' optical isolator products maintain excellent return loss isolation performance under any polarization state. They feature low loss, high isolation, high return loss, low polarization-dependent loss, low polarization mode dispersion, wide operating wavelength range, and operating temperature range. Additionally, they have a glue-free optical path. These features make the product a cost-effective solution for communication networks. This series of products can be used in doped fiber amplifiers, wavelength division multiplexing systems, fiber optic devices, and lasers.

Product features：Wide operating wavelength range & wide operating temperature range、 Low insertion loss & high isolation、 Minimal polarization-dependent loss and polarization mode dispersion、 Glue-free optical path、 Extremely high reliability and stability

Application area：Optical Amplifiers、 WDM & DWDM Systems、 Optical Fiber Equipment、 Fiber Lasers

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-HPISO-W1550-S11-P2-1-9-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameters

Parameter	Unit	1*1
Type		<5W High Power In-Line Optical Isolator (HPI)		5W-10W High Power In-Line Optical Isolator (HPI)
Operating Wavelength	nm	1310/1550/1590
Operating Bandwidth	nm	±20
Single/Dual Polarity		Single Stage	Dual Stage	Single Stage	Dual Stage
Insertion Loss	dB	<0.45	<0.60	<0.50	<0.60
Isolation (A+/-15nm)	dB	29.00	46.00	28.00	45.00
PDL	dB	<0.10	<0.10	<0.10	<0.10
Max PMD	dB	0.05/0.20	0.05	0.05/0.20	0.05
Return Loss	dB	55.00
Operating Temperature	Deg.	-5-75
Storage Temperature	Deg.	-40-85
Fiber Length	m	1.00±0.10
Fiber Type		G657A1 or Customized
Operating Power	W	<5W		5W-10W
Dimensions	mm	5.5x36		60x12x8

Note:

*.All specified parameters are without connectors and are only valid at the above wavelengths, polarization states, and temperatures.

**.If any parameters change, no further notice will be given.

PN#/Ordering info

NIR-HPISO- W□□□□-SS-S○-P▽-☆-△-XX

W□□□□：Wavelength

1310: 1310nm

1550: 1550nm

2000: 2004nm

S○：Single/Double Pole

11: Single Pole

22: Double Pole

P▽：Handling Power 1: 1w

......

10: 10w

☆ ：Pigtail Length

05: 0.5m

1: 1m

10: 10m

△：Loose Tube

B:Bare Fiber

9:900um Loose Tube

20:2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SM--28e+ FC/PC

PA=PM1550 Fiber+ FC/APC

PP=PM 1550Fiber+ FC/PC
