1950nm SLD Benchtop Light Source

Idealphotonics' modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve highly stable laser output, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses a one-key recovery function (Run/Stop button) to effectively help customers return to the previous working state. This is a highly integrated modular system light source that uses PC-side software intelligent control. Customers can set the required working temperature and current according to their needs. It is very suitable for experimental scientific research and production testing. In addition, we need to modulate the laser in some application fields. We have connected two external modulation ports, one for high frequency and one for low frequency, to better meet customers' needs for multiple uses of one machine.

Product features：Support one-key restore function (no need to restart and preheat)、 Software remote control, intelligent control、 Stable output power, continuously adjustable、 Compact structure、 High-precision ACC and ATC control circuit、 Built-in high and low modulation bandwidth BNC interface

Application area：Fiber optic transmission system、 Fiber optic gyroscope、 Fiber optic sensor、 Optical coherence tomography、 Test light source

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-250-M-1950-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Driver Parameters

characteristic	Min.	Max.	Unit	Note
Power supply voltage	4.8	6.1	VAC	DC, it is recommended to use a regulated power supply
Power	0	10	W
Laser driver current	0	149	mA	Patch cord optional
		378
		624
Current resolution (LSB)	Max current/65536		V
Response frequency	0	15	MHz	-3db
Temperature control range	-10	50	℃
Temperature resolution	0.001		℃
Temperature stability		0.002	℃	Requires enclosure cooling
TEC input current	-1.5	1.5	A
TEC input voltage	-4.4	+4.4	V
Analog input	0	2.5	V

Laser parameters

Parameters	Symbol	Min.	Typical value	Max.	Unit
Wavelength	λ		1950		nm
Spectral width	Δλ	50	60	70	nm
Threshold current	Ith		30	40	mA
Operating current	Iop		200	300	mA
Output power	Pf	3	5	10	mW
Fiber type	SM1950
Operating voltage	Vf		1.8	2.5	V
Thermistor	RT	9.5	10	10.5	KΩ
Connector type	FC/APC

Laboratory measured photoelectric data

Optical and Electrical Data
No.	Parameter	Symbol	Unit	Testing result	Requirement	Condition
1	Threshold current	I_th	mA	64	≤80	at 25.0°C
2	Bias during operation	I_o	mA	230	≤230	at 4.65mW power
3	Bias voltage	V_f	V	1.178	≤3	at 4.65mW power
4	Slope efficiency	DE	mW/mA	0.03	0.01-0.05	at 4.65mW power
5	Operating temperature	T	°C	25	15-35	at 4.65mW power
6	Thermistor resist	R	Ohm	10000	9500~10500	at 25.0°C
7	wavelength	Λ_`	nm	1954.80	1950±10	at 4.65mW power
NOTE: Imax=230mA
Laser Diode characteristic graph				Optical mapping and data

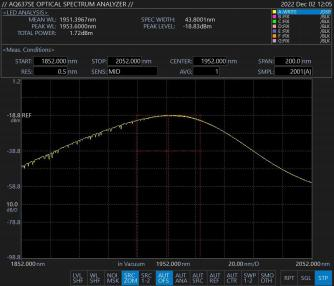

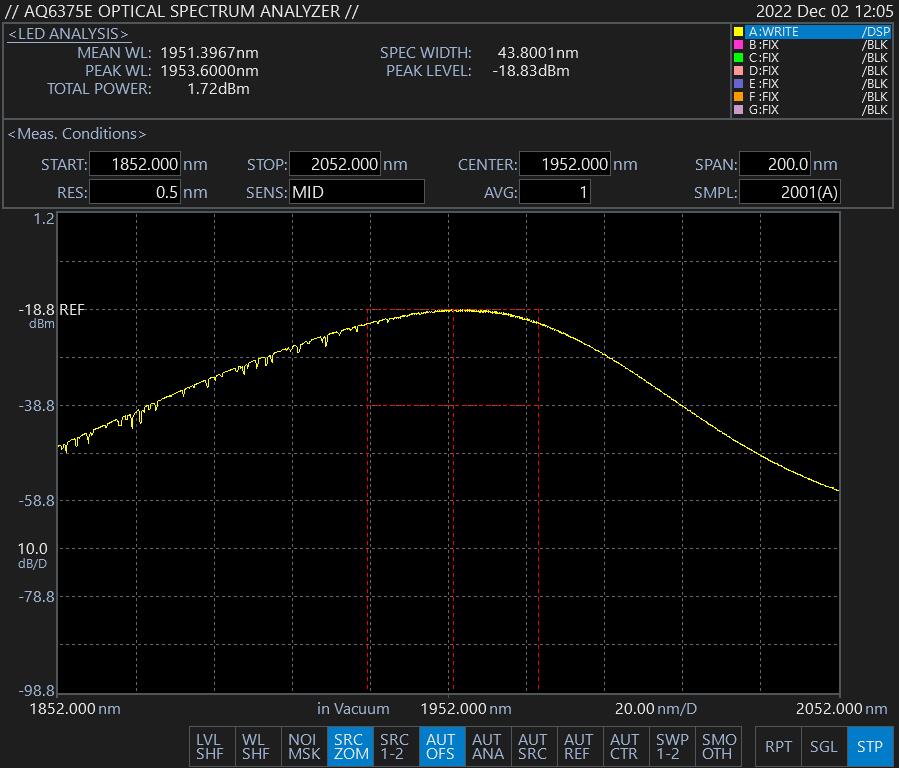

Test spectrum

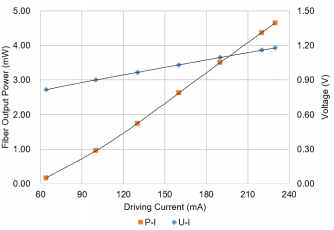

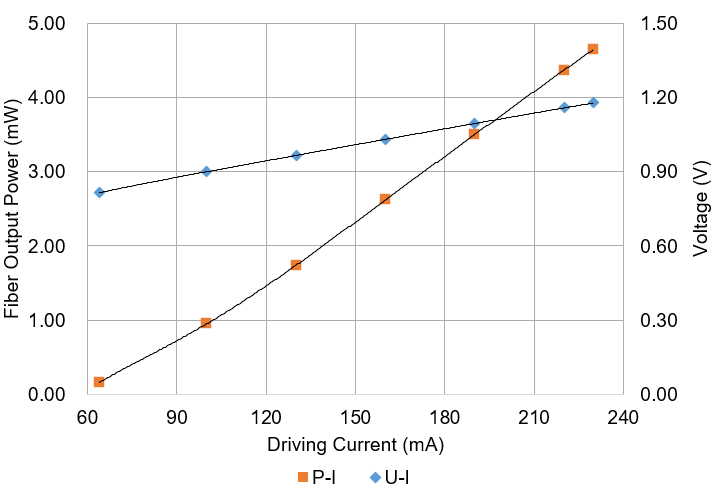

Power curve

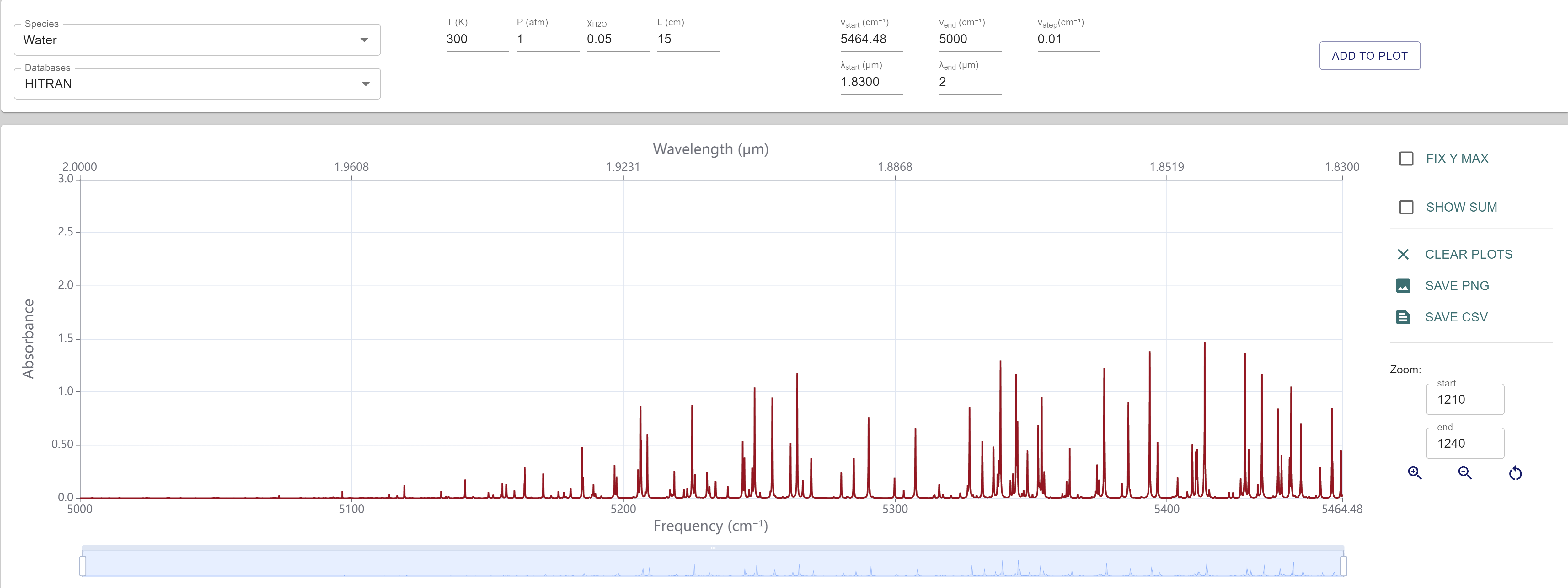

The burr is water peak absorption, and the actual emission spectrum is smooth

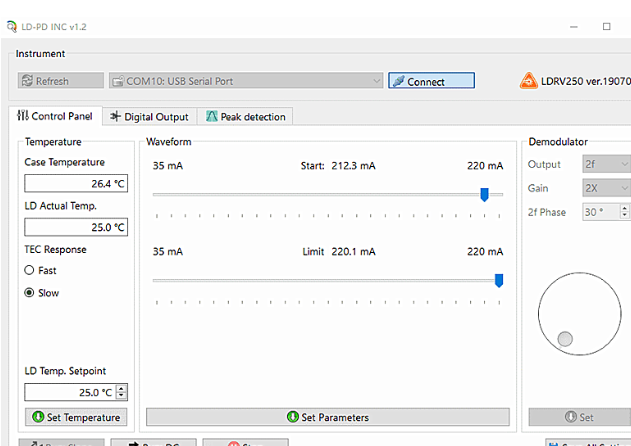

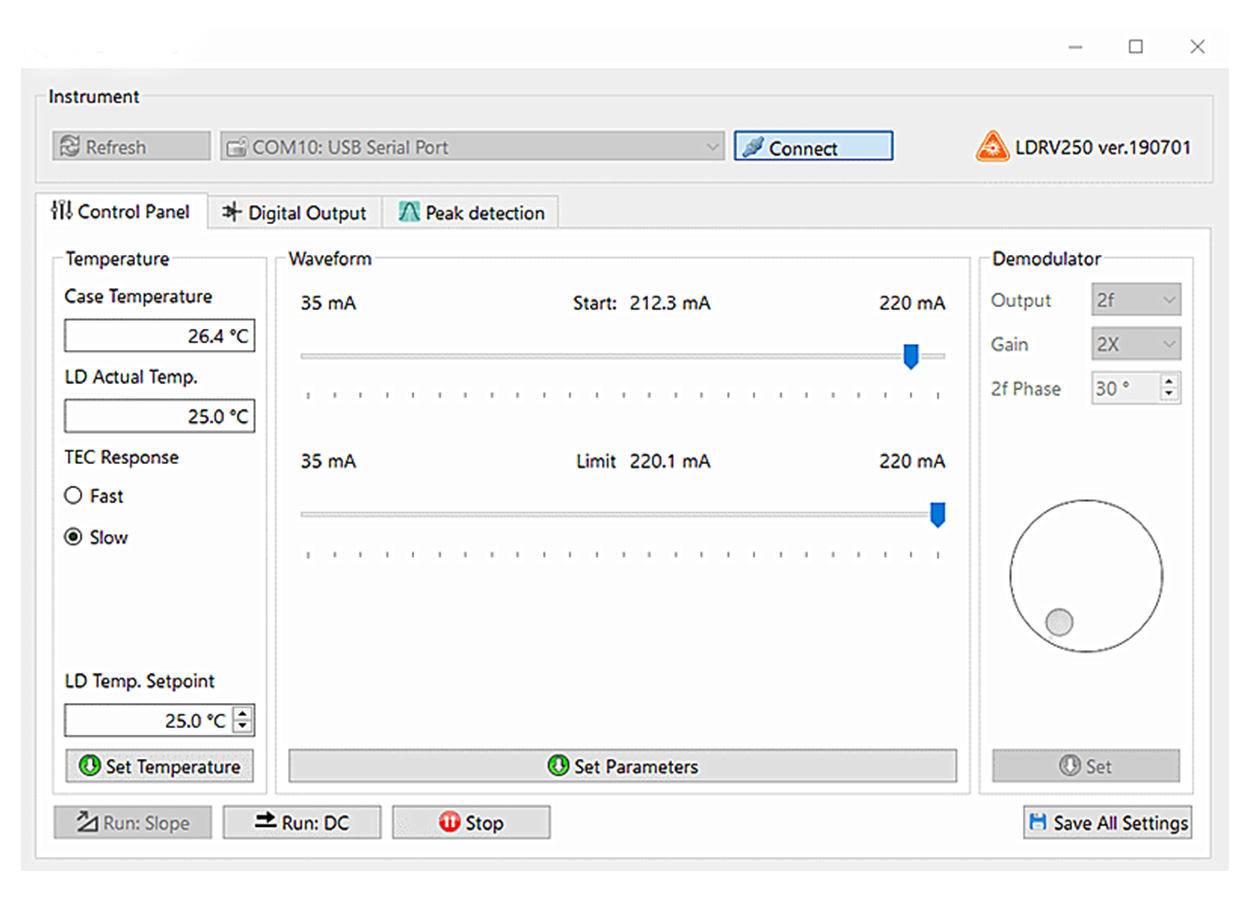

Control software interface

Beam quality

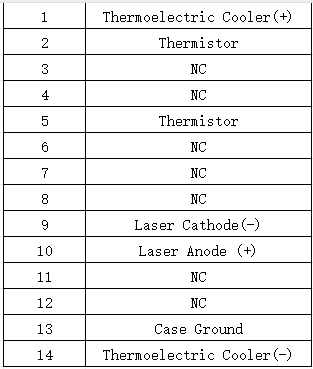

Pin Definition
