500-1700nm InGaAs Bias Photodetector Active Area Size Φ1.0mm Rise Time 5ns

IdealPhotonics' InGaAs bias photodetector covers a wavelength range of 500nm to 2600nm, with extremely low noise, fast response, no gain, and low cost. It is suitable for general photodetection applications and delivers excellent performance with a high cost-performance ratio. The company offers comprehensive technical support and customization services. It is commonly used for visible and infrared light measurements.

Product features：Wavelength range from 500nm to 2600nm, commonly used for visible and infrared light measurements、 Bias-type detector with extremely low noise, fast response, and no gain、 Low cost, suitable for standard photodetection applications、 Excellent performance with a high cost-performance ratio and comprehensive technical support、 Customization services available for non-standard requirements

Application area：Visible and infrared light measurements

Unit Price

Please contact customer service for a discounted quote.

Part Number

PDJBC5I10

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters

Parameter	Value
Wavelength Range	500-1700nm	900-1700nm	800-1700nm	900-2600nm
Active area	Φ1.0mm	Φ1.0mm	Φ2.0mm	Φ0.5mm	Φ1.0mm
Bandwidth Range	70MHz	35MHz	11.7MHz	20.6MHz	14MHz
Rise Time (@50Ω)	5ns	10ns	30ns	17ns	25ns
NEP	2.0 × 10-14W/H z1/2	2.5 × 10-14W/H z1/2	1.3 × 10-13W/H z1/2	1.0 × 10-12W/H z1/2	1.5 × 10-12W/Hz1/2
Dark Current	1.5nA(Typ.)/10 nA(Max)	1.0nA(Typ.)/25 nA(Max)	55nA(Typ.)/20 0nA(Max)	2uA(Typ.)/20u A(Max)	5uA(Typ.)/40uA(Max)
Junction Capacitance	50pF(Typ.)	80pF(Typ.)	100pF(Typ.)	140pF(Typ.)	500pF(Typ.)
Bias Voltage	5V		1.8V
Output Current	0~5mA
Output Voltage	~9V(Hi-Z)； ~170 mV(50Ω)
Light-Sensitive Depth	0.09" (2.2 mm)
Operating Temperature	10-50℃
Storage Temperature	-20-70℃
Detector Net Weight	0.10kg
Undervoltage Indicator	Vout ≤9V(Hi-Z) Vout ≤170mV(50Ω)
Dimensions	2.79" X 1.96" X 0.89" (70.9 mm X 49.8 mm X 22.5 mm)
Power Supply Battery	Power Switch	Signal Interface	Battery Monitoring	Support Rod Interface	Optical Interface
A23 ，12VDC，40mAh	Slide Switch	BNC Female Socket	Instantaneous Button	M4 X 2	SM1 X 1 SM0.5 X 1

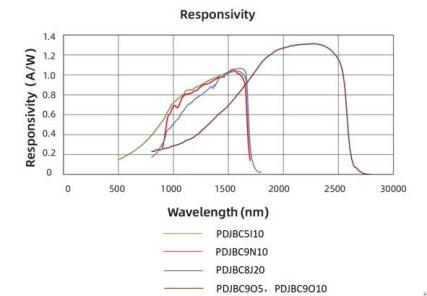

Response Curve：

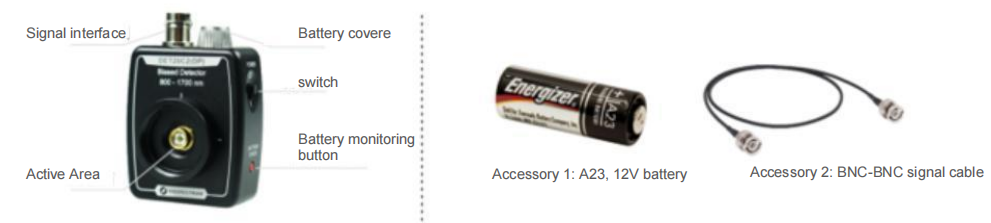

Product Configurations：

Attachment 1: Optional Configuration Table

Silicon-based Biased Photodetector	Optional Configuration
Name	Material	Type	Features	Wavelength Range Light-Sensitive Size	Reserved Optional Configurations
PD: "Photodetector"	J: InGaAs (Indium Gallium Arsenide)	B: Biased Type	C: Conventional Type	5I10：500-1700nm ，Φ1.0mm
				9N10：900-1700nm，Φ1.0mm
				8J20：800-1700nm ，Φ2.0mm
				9O5 ：900-2600nm ，Φ0.5mm
				9O10：900-2600nm，Φ1.0mm

Attachment 2: Model and Product Number Correspondence Table

Model	Part Number	Specs
PDJBC5I10	A80153435	500-1700nm InGaAs biased photodetector, Active area Φ1.0mm, rise time 5ns, bandwidth 70MHz
PDJBC9N10	A80153436	900-1700nm InGaAs biased photodetector, Active area Φ1.0mm, rise time 10ns, bandwidth 35MHz
PDJBC8J20	A80153437	800-1700nm InGaAs biased photodetector, Active area Φ2.0mm, rise time 30ns, bandwidth 11.7MHz
PDJBC9O5	A80153438	900-2600nm InGaAs biased photodetector,Active area Φ0.5mm, rise time 17ns, bandwidth 20.6MHz
PDJBC9O10	A80153439	900-2600nm InGaAs biased photodetector, Active area Φ1.0mm, rise time 25ns, bandwidth 14MHz
