1064nm Yb-doped polarization-maintaining fiber amplifier 2W

The desktop laser-doped fiber amplifier (YDFA) incorporates a high-power, high-performance multi-mode semiconductor pump source, a highly stable wavelength division multiplexer (combiner), and a Yb-doped fiber with a high gain coefficient. The YDFA uses an integrated all-fiber system with a fully polarization-maintaining design, where the power supply, control system, and optical components are highly integrated, providing users with an easy-to-use turnkey laser system.

Product features：Wide wavelength range、 Low noise、 High power output

Application area：Fiber optic communication、 Fiber optic sensing、 Fiber optic laser

Unit Price

Please contact customer service for a discounted quote.

Part Number

YDFA-1064-2-PM

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Optical Parameters	Unit	Typ.	Note
Wavelength Range	nm	1030~1100
Input Power	dBm	0-10	Customizable
Saturation Output Power	dBm	17/20/23/25/26/27/30/33
Noise Figure	dB	5.0
Polarization-Related Gain	dB	<0.3
Input/Output Isolation	dB	>35
Pigtail Type	-	HI1060SM fiber or PM980 PM fiber
Pigtail Connector Type		FC/APC
Operating Mode		Automatic Current Control (ACC) / Automatic Power Control (APC)	*See Note 1
Electrical and Environmental Parameters	Benchtop	Module
Control Mode	Keypad	RS232 Serial Communication
Communication Interface	*Optional	DB9 Female
Power Supply	100-240VAC,<30W	5v DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating Temperature	-5~+55°C
Operating Humidity	0-70%
Ordering Information / PN#
YDFA	Saturation Output Power (dBm)	Fiber Type	Package Type
	17/20/23/25/26/27/30/33	SM=HI1060SM fiber PM= PM 980PM fiber	M=Module, B=Benchtop

Test Result

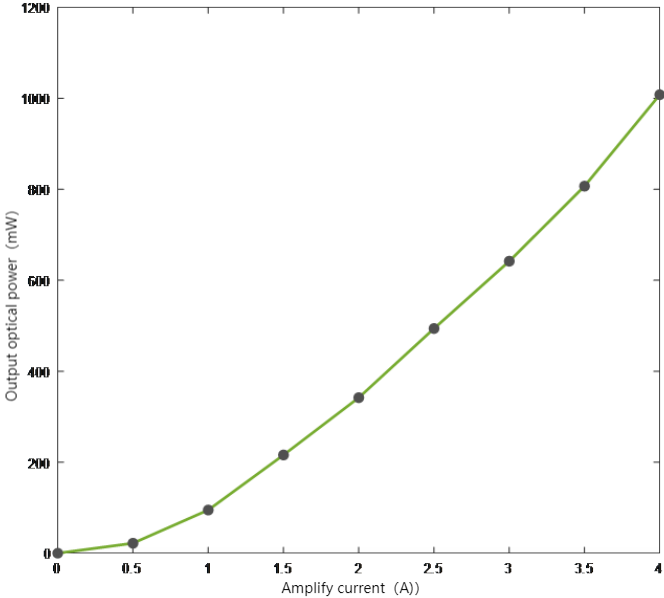

1. Amplified Optical Power vs. Current Graph (Seed Power = 1mW):

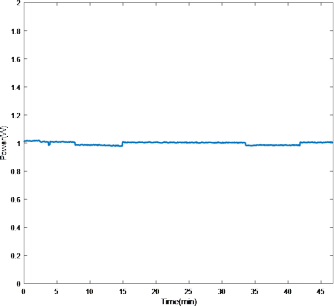

2. Stability test of the amplified power at 1064 nm with a 4A current (seed power = 1mW):


3. Spectral diagram before and after amplification：


Before


After
