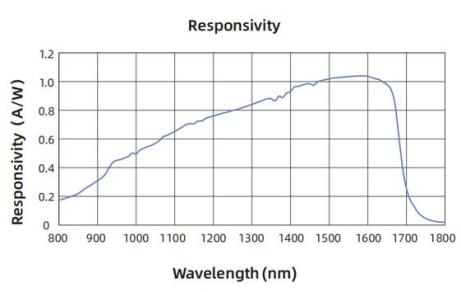

Wavelength Range

800-1700nm

Active area

Φ1.0mm

Φ2.0mm

Φ3.0mm

Φ5.0mm

Φ8.0mm

Φ10.0mm

Response Time Constant

10ns

25ns

120ns

300ns

650ns

1200ns

Bandwidth Range

DC ～13MHz

DC ～11MHz

DC～4MHz

DC ～1MHz

DC ～100KHz

DC ～10KH z

Gain Range

Hi-Z load: 1.51kV/A～4.75MV/A; 50Ω load: 0.75kV/A～2.38MV/A

Signal Amplitude

Hi-Z load: 0～10V; 50Ω load: 0～5V

Gain Adjustment Method

Rotary switch: 0～70dB, with 8 steps (10dB per step). Bandwidth is inversely proportional to gain.

Light Sensitive Surface Depth

0.13"     (3.3  mm)

Detector Net Weight

0.10kg

Operating Temperature

10-40℃

Storage Temperature

-20-70℃

External Dimensions

2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

6.1 × 10 -11 ~2.2 8 × 10-12

4.6 × 10 -11 ~2. 24× 10-12

3.8 × 10 -11 ~2. 17× 10-12

2.2 × 10-11 ~2. 01× 10-12

1.5 × 10-11 ~1. 57× 10-12

NEP

pW/Hz1/2

pW/Hz1/2

pW/Hz1/2

pW/Hz1/2

pW/Hz1/2

--

Power Supply Interface

Power Supply Switch

Signal Interface

Gain Adjustment

Support Interface

Optical Interface

LUMBERG  RSMV
3  FEMALE

Sliding switch with LED indicator

BNC female socket

8-step rotary knob

M4×2

SM1 × 1

SM0.5 × 1

Gain (Hi-Z)

1.51×103V /A

Gain (Hi-Z)

4.75× 103V /A

Gain (Hi-Z)

1.5 ×104V/ A

Gain (Hi-Z)

4.75×104 V/A

Gain (50Ω）

0.75×103V /A

Gain (50Ω)

2.38×103V /A

Gain (50Ω)

0.75×104V /A

Gain (50Ω)

2.38×104 V/A

Bandwidth (BW)

12MHz

Bandwidth(BW)

1.6MHz

Bandwidth (BW)

1MHz

Bandwidth (BW)

260kHz

Noise (RMS)

258uV

Noise (RMS)

192uV

Noise (RMS)

207uV

Noise (RMS)

211uV

40dB

50dB

60dB

70dB

Gain (Hi-Z)

1.51×105V /A

Gain (Hi-Z)

4.75×105V /A

Gain (Hi-Z)

1.5 ×106V/ A

Gain (Hi-Z)

4.75×106 V/A

Gain (50Ω)

0.75×105V /A

Gain (50Ω)

2.38×105V /A

Gain (50Ω)

0.75×106V /A

Gain (50Ω)

2.38×106 V/A

Bandwidth (BW)

90MHz

Bandwidth (BW)

28MHz

Bandwidth (BW)

9kHz

Bandwidth (BW)

3kHz

Noise (RMS)

214uV

Noise (RMS)

234uV

Noise (RMS)

277uV

Noise (RMS)

388uV

Signal Offset

±8mV(Typ.) ， ±12mV(Max)

Product Name

Material

Type

Features

Wavelength Range

Active area

Reserved Optional Configuration

PD: "Photodetector"

J: InGaAs (Indium Gallium Arsenide)

A: Amplifying

A: Adjustable Gain

8J10：800-1700nm ，Φ1.0mm

8J20：800-1700nm ，Φ2.0mm

8J30：800-1700nm ，Φ3.0mm

8J50：800-1700nm ，Φ5.0mm

8J80：800-1700nm ，Φ8.0mm

8J100：800-1700nm，Φ10.0m m

PDJAA8J10

A80153446

800-1700nm InGaAs Amplified Photodetector, Active area Φ1.0mm, 0～70dB 8-level Adjustable Gain, Bandwidth Range DC ～13MHz

PDJAA8J20

A80153447

800-1700nm InGaAs Amplified Photodetector, Active areaa Φ2.0mm, 0～70dB 8-level Adjustable Gain, Bandwidth Range DC ～11MHz

PDJAA8J30

A80153448

800-1700nm InGaAs Amplified Photodetector, Active area Φ3.0mm, 0～70dB 8-level Adjustable Gain, Bandwidth Range DC～4MHz

PDJAA8J50

A80153449

800-1700nm InGaAs Amplified Photodetector, Active area Φ5.0mm, 0～70dB 8-level Adjustable Gain, Bandwidth Range DC ～1MHz

PDJAA8J80

A80153450

800-1700nm InGaAs Amplified Photodetector, Active area Φ8.0mm, 0～70dB 8-level Adjustable Gain, Bandwidth Range DC ～100kHz

PDJAA8J100

A80153451

800-1700nm InGaAs Amplified Photodetector, Active area Φ10.0mm, 0～70dB 8-level Adjustable Gain, Bandwidth Range DC ～10kHz
