400-1700nm Visible Extension InGaAs Amplified Photodetector Active Area: 1mm × 1mm

IdealPhotonics' visible light extended InGaAs amplified photodetector has a wavelength range of 400nm~1700nm, with 8 adjustable gain levels, enabling quantitative photoconversion. It offers a wide dynamic range, making it suitable for various optoelectronic development scenarios. It provides excellent performance, high cost-effectiveness, and comprehensive technical support. It is commonly used in visible light and near-infrared light measurements.

Product features：Light-sensitive range 400nm-1700nm, commonly used in visible and near-infrared light measurements、 Amplified detector with 8 adjustable gain levels for quantitative optoelectronic conversion、 Wide dynamic range, suitable for various optoelectronic development scenarios、 Excellent performance, high cost-performance ratio, with complete technical support.、 Customization services available

Application area：Visible and infrared light measurement

Unit Price

Please contact customer service for a discounted quote.

Part Number

PDJAA4H10

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters

Parameter	Value
Wavelength Range	400-1700nm
Response Time Constant	5ns		35ns
Gain Range	Hi-Z load: 1.51kV/A to 4.75MV/A; 50Ω load: 0.75kV/A to 2.38MV/A
Signal Amplitude	Hi-Z load: 0 to 10V; 50Ω load: 0 to 5V
Gain Adjustment Method	Rotary switch adjustment: 0 to 70dB, with 8 levels, each with a 10dB increment. Bandwidth is inversely proportional to gain.
NEP	1.4 × 10-12W/Hz1/2		5.2 × 10-13W/Hz1/2
Active area	1mm×1mm		2mm×2mm
Active area Depth	0.13" (3.3 mm)
Detector Net Weight	0.10kg
Operating Temperature	10-40℃
Storage Temperature	-20-70℃
Dimensions	2.79" X 2.07" X 0.89" (70.9 mm X 52.5 mm X 22.5 mm)
Power Interface	Power Switch	Signal Interface	Gain Adjustment	Mounting Rod Interface	Optical Interface
LUMBERG R SMV3 FEMA LE	Slide switch with LED indicator	BNC Female Socket	8-step rotary knob	M4×2	SM1× 1 SM0.5 × 1

8-step Quantitative Adjustable Gain Parameters

0dB		10dB		20dB		30dB
Gain (Hi-Z)	1.51× 103V/ A	Gain (Hi-Z)	4.75× 103V /A	Gain (Hi-Z)	1.5 × 104V/ A	Gain (Hi-Z)	4.75× 104 V/A
Gain (50Ω)	0.75× 103V/ A	Gain (50Ω)	2.38× 103V /A	Gain (50Ω)	0.75× 104V /A	Gain (50Ω)	2.38× 104 V/A
Bandwidth (BW)	13MHz	Bandwidth (BW)	1.7MHz	Bandwidth(BW)	1.1MHz	Bandwidth (BW)	300kHz
Noise (RMS)	≤250uV	Noise (RMS)	≤250uV	Noise (RMS)	≤250uV	Noise (RMS)	≤250uV
40dB		50dB		60dB		70dB
Gain (Hi-Z)	1.51× 105V/ A	Gain (Hi-Z)	4.75× 105V /A	Gain (Hi-Z)	1.5 × 106V/ A	Gain (Hi-Z)	4.75× 106 V/A
Gain (50Ω)	0.75× 105V/	Gain (50Ω)	2.38× 105V	Gain (50Ω)	0.75× 106V	Gain (50Ω)	2.38× 106
	A		/A		/A		V/A
Bandwidth (BW)	90kHz	Bandwidth (BW)	28kHz	Bandwidth (BW)	9kHz	Bandwidth (BW)	3kHz
Noise (RMS)	≤250uV	Noise (RMS)	≤250uV	Noise (RMS)	≤300uV	Noise (RMS)	≤400uV
Signal Bias	±8mV(Typ.) ， ±12mV(Max)

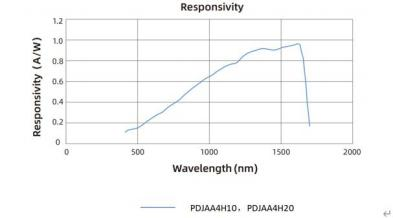

Response Curve：

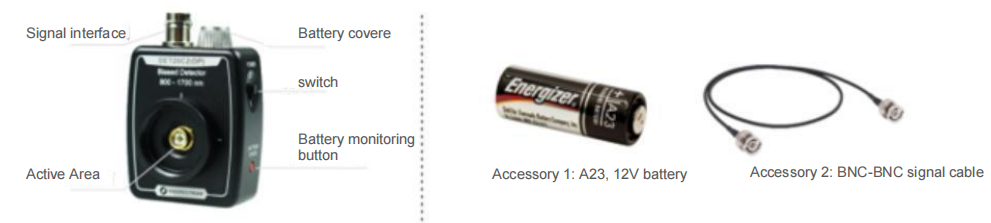

Product Configurations：


Attachment 1: Optional Configuration Table

Visible Light Extended InGaAs Amplified Photodetector	Optional Configurations
Product Name	Material	Type	Features	Wavelength Range Sensitive Area	Reserved Optional Configurations
PD: "Photodetector"	J: InGaAs	A: Amplified Type	A:Adjustable Gain	4H10：400-1700nm，1mm× 1mm
				4H20：400-1700nm，2mm× 2mm

Attachment 2: Model and Product Number Correspondence Table

Model	Part Number	Specs
PDJAA4H10	A80153433	400-1700nm Visible light extended InGaAs amplified photodetector, Active area 1mm×1mm, 0 to 70dB eight-level quantitatively adjustable gain, response time constant 5ns
PDJAA4H20	A80153434	400-1700nm Visible light extended InGaAs amplified photodetector, Active area 2mm×2mm, 0 to 70dB eight-level quantitatively adjustable gain, response time constant 35ns
