1550nm PM Lithium Niobate 10Gb/s Intensity Modulator

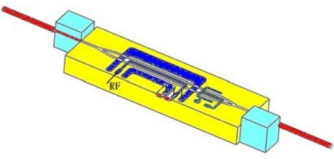

The Lithium Niobate (LiNbO3) intensity modulator is made using titanium diffusion or proton exchange techniques to create a Mach-Zehnder type optical waveguide. The input and output optical fibers are precisely coupled to the waveguide, and the electro-optic effect of the lithium niobate material is used to achieve intensity modulation of the optical signal.
Product features:X-cut and Y-propagating Lithium Niobate、 Titanium diffusion or proton exchange waveguide、 Low drive voltage、 Independent bias electrodes、 Zero chirp、 Precise diagonal coupling of the fiber to the chip、 Greatly reducing back-reflection、 Excellent long-term stability
Application area:Fiber optic communication、 Optical sensing、 Optical measurement
Unit Price
Please contact customer service for a discounted quote.
Part Number
LIM-10Gb-PM-FA
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Structure




Parameters(23℃)

Parameter

Unit

Value

2.5Gb/s

10Gb/s

Optical

Operating Wavelength*

nm

1550±20

Insertion Loss

dB

≤4.0

Maximum Input Optical Power

mW

≤200(APE process)

≤50(Ti process)

Optical Return Loss

dB

≥45

On-Off Extinction Ratio

dB

≥20

Electrical

RF Half-Wave Voltage@DC

v

≤4.0

≤5.0

Bias Half-Wave Voltage

v

≤5.0

≤8.0

Bandwidth

GHz

≥3

≥8

Electrical Return Loss

dB

≤-10

Mechanical

RF Connector


SMA

Bias Connector


PIN

Input Pigtail Type


PM Fiber

Output Pigtail Type


PM or SM Fiber

Environmental

Operating Temperature

0~+70

Storage Temperature

-40~+85



* The wavelengths of 1310nm, 1064nm, and 850nm are available for customization.
