800nm conventional polarization-dependent free-space optical isolator A07 package

Free-space optical isolators can be divided into two types: polarization-dependent and polarization-independent. Polarization-dependent isolators, also known as Faraday isolators, consist of three parts: a polarizer, a Faraday rotator, and an analyzer (which is oriented at a 45° angle to the polarizer's axis).Polarization-independent isolators primarily consist of a birefringent crystal (or polarizer), a Faraday rotator, and a half-wave plate. These are commonly used in fiber lasers and are effective at maintaining the stability of optical systems. These isolators use high-quality magneto-optical crystals, offering low absorption, high extinction ratio, and low loss. The products feature excellent and reliable performance, with a peak isolation of up to 45 dB, a maximum aperture of 45 mm, and typical transmission values reaching 95%. Customization is available for all products.

Product features：

Application area：Laser precision processing、 Laser sensing systems、 Ultrafast laser systems、 OCT Systems、 Laser detection

Unit Price

Please contact customer service for a discounted quote.

Part Number

HPISO-FS-10-10-800-C-A07

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Polarization state reference

All models of free-space isolators will non-reciprocally rotate the polarization state by 45° along the polarization plane.

An additional 1/2 waveplate can be provided upon request to alter the output polarization state.

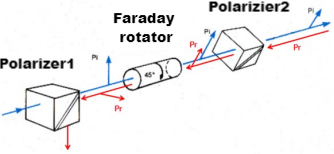

Polarization-dependent isolators beam selection

Forward transmission polarization beam Pi

Reverse transmission polarization beam Pr

A04 (Aperture ≤ 5mm) package

Polarization-Dependent Isolator Model：HPISO-t-p-a-λ-w-h
Type(t)	Power(p)	Aperture(a)	Wavelength(λ)	Waveplate(w)	Package(h)
FS (Standard) DS (Dual-stage) AB (Adjustable bandwidth)	1W 5W 30W 50 W 100 W 500W ...	2 mm 3 mm 4 mm 5 mm 8 mm 10 mm 12 mm 15 mm 25 mm 45 mm ...	550-880nm* 355 nm 405 nm 532 nm 633 nm 780 nm 850 nm 980 nm 1030 nm	C (Contain) N (Not Contain)	A03* A04 A06 A08 A23 A31 ...
			1064 nm 1319 nm 1550 nm 2000 nm 4500 nm ...

*Only applicable to the adjustable bandwidth type

**500 W is only applicable under the 1030/1064 nm wavelength condition.

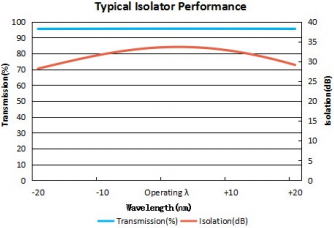

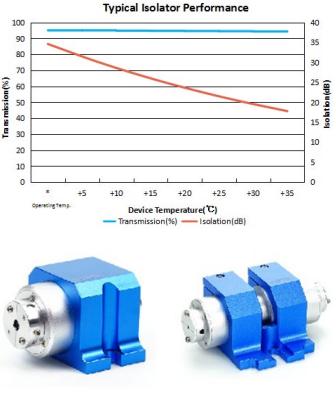

Typical indicator reference
Aperture Size	Damage Threshold	Power Handling	Transmission	Peak Isolation
2~15 mm	3J/cm² at 10ns @(532~980)nm	50 W	>93%, ＞90%*	>33 dB, >45 dB*
2~10 mm	10J/cm² at 10ns @(1319~2000)nm	50 W	>93%	>33 dB
15~25 mm	10J/cm² at 10ns @1030/1064nm	500W	>93%	>33 dB

The operating temperature range for the product is 10°C to 30°C.

* Only applicable to conventional isolators.

**Only applicable to dual-stage isolators.

Packaging Dimension Diagram (mm)

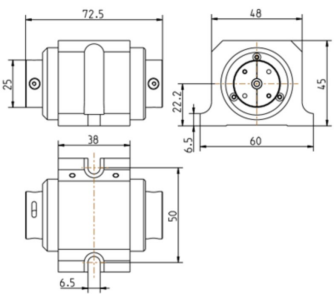

A04 (Aperture≤5mm)

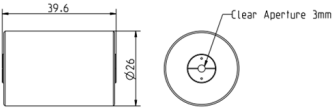

A46 (Compact, 1064nm)


Polarization-Insensitive Model：HPISO-t-p-a-λ-w-h

Type(t)

Power(p)

Aperture(a)

Wavelength(λ)

Wavelength(w)

Waveplate(h)

(Polarization-Insensitive)

50 W

100 W

500 W

1000 W

...

1.5 mm

5 mm

8 mm

...

980 nm

1030 nm

1064 nm

...

C
(Contain)

N
(Not Contain)

A16 A29 A38 A41

...

Typical Specifications Reference
Aperture	Damage Threshold	Power Handling	Transmission	Peak Isolation
1.5 mm	10J/cm² at 10ns @(980~1064)nm	50 W	>93%	>33 dB
5 mm	10J/cm² at 10ns @(980~1064)nm	100 W	>93%	>33 dB
8 mm	10J/cm² at 10ns @(980~1064)nm	1000 W	>93%	>33 dB

* The operating temperature range for the product is 10℃-30℃

1.6.png 1.7.png

Packaging Dimension Diagram (mm)

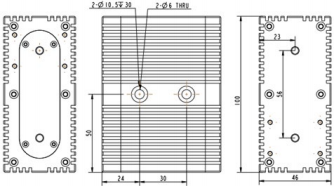

A16 (Aperture≤5mm)

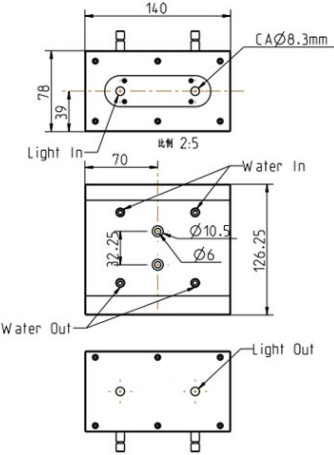

A41(Aperture≤8，water-cool)


Parameters

PN# HPISO-FS-10-10-800-C-A07

Wavelength	800nm±10nm
Peak Isolation	>30dB
Transmission	>90%
Optical Power(Average)	10W
Clear Aperture	10mm
Max Power Density	100W/cm²
Input Polarization	Horizontal or Vertical
Output Polarization	Horizontal or Vertical or Adjustable
Operating Temperature	10-30℃
Storage Temperature	-10-60℃

Reliability Test:

Test Item	Condition	Frequency	Sampling
High-low temperature cycle test	Temperature -20℃~ 70℃, total time ≥24 hours	1 / batch	/

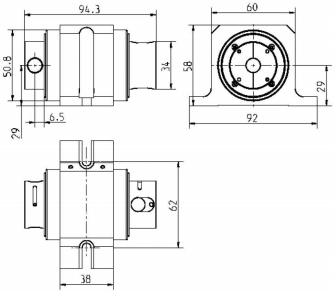

Dimensions
