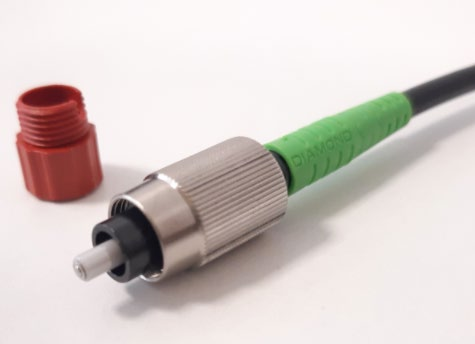

LVF ZBLAN polarization-maintaining fiber connector jumper

Any passive or active optical fiber manufactured by LVF can be routed.

Product features：Any passive or active fiber manufactured by LVF can be routed、 Standard cable length: up to 50 m、 Connectors: SMA 905 ‒ FC/PC ‒ FC/APC ‒ Diamond - Custom、 Protection standard tubes: Hytrel (diameter: 0.9 mm), Kevlar (diameter: 4 mm), stainless steel jacket (diameter: 7 mm), Peek jacket (diameter: 0.9 mm)

Application area：Optical fiber communication、 laser delivery

Unit Price

Please contact customer service for a discounted quote.

Part Number

ZFG-PM-[1.95] 6.5/125-SH-2FC/ APC

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing


Insertion loss Core/ferrule concentricity Standard connector < 2 μm

Optimized connector < 0.5 μm

Part Number:

	Standard ﬁber
Single Mode	ZFG SM [1.95(1)] 6.5/125
	ZFG SM [2.55(1)] 8.5/125
	ZFG SM [2.2(1)] 7.5/150
	IFG SM [2.95(1)] 7.5/125
	IFG SM [3.3(1)] 8.5/125
	IFG SM [3.7(1)] 9.5/125
Multimode	ZFG MM (0.20(2)) 100/160
	ZFG MM (0.20(2)) 200/260
	ZFG MM (0.20(2)) 300/360
	ZFG MM (0.20(2)) 400/460
	ZFG MM (0.20(2)) 600/680
	IFG MM (0.20/0.30(2)) 100/160
	IFG MM (0.20/0.30(2)) 200/260
	IFG MM (0.20/0.30(2)) 300/360
	IFG MM (0.20/0.30(2)) 400/460
	IFG MM (0.20/0.30(2)) 600/680

(1) Cut-off wavelength (2) Numerical aperture (3) Stainless steel sheath
