1.0~2.6 um extended InGaAs photodiode

Product features：Positive irradiation structure、 High sensitivity、 Fast response time、 TO46 package

Application area：Spectral detection and analysis、 Gas analysis、 Water content analysis

Unit Price

Please contact customer service for a discounted quote.

Part Number

PD-InGaAs-300/2600-TO46

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Characteristic parameters	Typical values
Photosensitive surface diameter	Φ 0.3 mm
Scale	unit
Operating temperature	-20～ +60 ℃
Storage temperature	-55~ +70 ℃
Band	1.0~2.6 um
Peak wavelength	2.2 um
Peak quantum efficiency	≥70%
Peak response rate	≥1.2 A/W
Device impedance	2×10⁴Ω
Dark current	5×10^-7@-0.01V
Equivalent noise power	4×10^-13W/Hz^1/2
Peak detection rate	7×10¹⁰cm Hz^1/2/W
Packaging type	TO-46 package

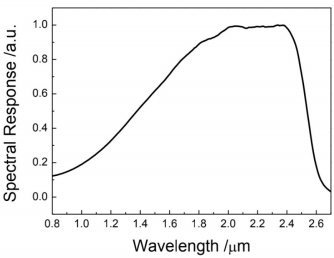

Typical spectral response curve

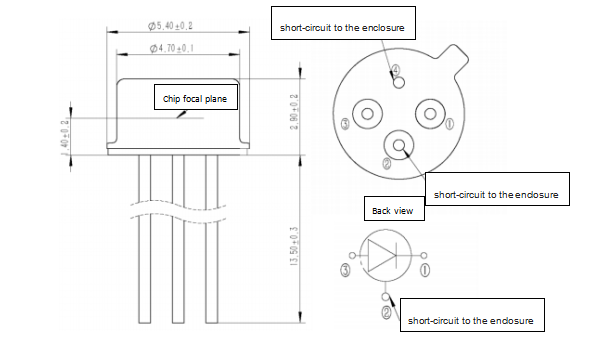

Product structure and size


Notes:

(1) Anti-static protection is required during product use, and operators should wear anti-static wrist straps.

(2) During storage and transportation, the product should be placed in anti-static foam and stored in an anti-static box.

(3) Do not use excessive force when plugging and unplugging pins, and do not bend the pins more than 45° along the root to prevent bending from causing cracks in the glass beads.

(4) The product must be plugged and unplugged after power is turned off.
