Aspheric Fiber Collimator 1550nm

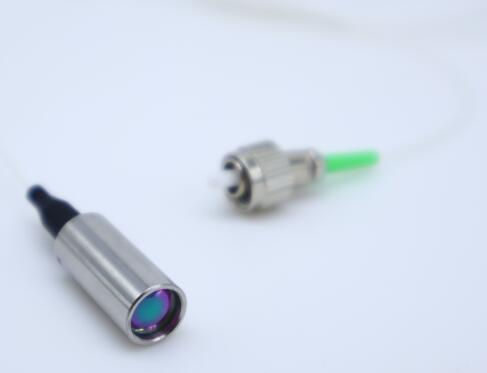

The light outlet of the pigtail is polished at an angle and coated with an anti-reflection film to reduce the return light at the light outlet end. The long-focus collimator uses a bent housing to accommodate the light output angle caused by the tilted pigtail; the short-focus collimator can ignore the light output angle caused by the tilted pigtail, and these models use a straight-through housing. The other end of the pigtail has a narrow-key FC/PC, FC/APC and SMA905 connector with a standard; various spot diameters and non-magnetic packaging can also be customized.

Product features：

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-1550-0.87-0.11-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

405nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
405nmm	400-700nm	0.86	0.06°+0.01°	0.25	4.45mm	5.72mm	FC/PC FC/APC SMA905	405HP	>90%
405nm	400-700nm	1.98	0.02°+0.01°	0.25	10.67mm	9.0mm
405nm	400-700nm	3.1	0.015°+0.01°	0.15	17.71mm	9.0mm
450nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
450nm	400-700nm	0.82	0.05°+0.01°	0.25	4.50mm	5.72mm	FC/PC FC/APC SMA905	405HP	>90%
450nm	400-700nm	2	0.02°+0.01°	0.24	10.77mm	9.0mm
450nm	400~700nm	3	0.015°+0.01°	0.15	17.88mm	9.0mm
525nm Aspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
525nm	400-700nm	0.8mm	0.05°+0.01°	0.25	4.55mm	5.72mm	FC/PC FC/APC SMA905	460HP	>90%
525nm	400~700nm	2.1mm	0.02°+0.01°	0.24	10.87mm	9.0mm
525nm	400-700nm	3.2mm	0.015°+0.01°	0.15	18.02mm	9.0mm
635nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Collimator outer diameter
635nm	400-700nm	0.86mm	0.05°+0.01°	0.24	4.59mm	5.72mm	FC/PC FC/APC SMA905	630HP	>90%
635nm	400-700nm	2.06mm	0.02°+0.01°	0.24	10.96mm	9.0mm
635nm	400-700nm	3.5mm	0.015°+0.01°	0.15	18.14mm	9.0mm
780nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
780nm	600-1100nm	1.0mm	0.06°+0.01°	0.24	4.63mm	5.72mm	FC/PC FC/APC SMA905	780HP	>90%
780nm	600-1100nm	2.1mm	0.026°+0.01°	0.24	11.06mm	9.0mm
780nm	600-1100nm	4.0mm	0.01°+0.01°	0.15	18.33mm	9.0mm
850nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
850nm	600-1100nm	1.0mm	0.06°+0.01°	0.24	4.64mm	5.72mm	FC/PC FC/APC SMA905	780HP	>90%
850nm	600~1100nm	2.41mm	0.03°+0.01°	0.24	11.10mm	9.0mm
850nm	600~110Onm	3.99mm	0.02°+0.01°	0.15	18.45mm	9.0mm
980nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
980nm	600~1100nm	1.0mm	0.07°+0.01°	0.24	4.66mm	5.72mm	FC/PC FC/APC SMA905	980HP	>90%
980nm	600~1100nm	2.4mm	0.03°+0.01°	0.24	11.16mm	9.0mm
980nm	600~1100nm	4.0mm	0.02°+0.01°	0.15	18.52mm	9.0mm
1064nmAspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
1064nm	600-1100nm	1.0mm	0.08°+0.01°	0.24	4.67mm	5.72mm	FC/PC FC/APC SMA905	HI1060	>90%
1064nm	600-1100nm	2.4mm	0.032°+0.01°	0.24	11.18mm	9.0mm
1064nm	600-1100nm	4.05mm	0.02°+0.01°	0.15	18.58mm	9.0mm
1310nm Aspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
1310nm	1050-1700nm	0.84mm	0.11°+0.01°	0.24	4.70mm	5.72mm	FC/PC FC/APC SMA905	SMF-28e	>90%
1310nm	1050-1700nm	2.04mm	0.047°+0.01°	0.23	11.25mm	9.0mm
1310nm	1050-1700nm	3.35mm	0.029°+0.01°	0.15	18.67mm	9.0mm
1550nm Aspheric Fiber Collimator
Central wavelength	Lens coating wavelength	Beam waist spot diameter	Beam far-field divergence angle	Applied aperture (lens)	Effective focal length	Collimator outer diameter	Connector	Fiber type	Transmittance
1550nm	1050~1700nm	0.87mm	0.11°+0.01°	0.24	4.74mm	5.72mm	FC/PC FC/APC SMA905	SMF-28E	>90%
1550nm	1050~1700nm	2.10mm	0.053°+0.01°	0.23	11.31mm	9.0mm
1550nm	1050~1700nm	3.5mm	0.032°+0.01°	0.15	18.75mm	9.0mm

Beam waist spot diameter: Take the Gaussian beam 1/e², all use the theoretical calculation value of single-mode optical fiber at each wavelength.

Beam far-field divergence angle: According to the theoretical calculation value of Gaussian beam 1/e².
