4.257µm Low Power Benchtop ICL-DFB Tunable Continuous Wave Laser (Benchtop Light Source)

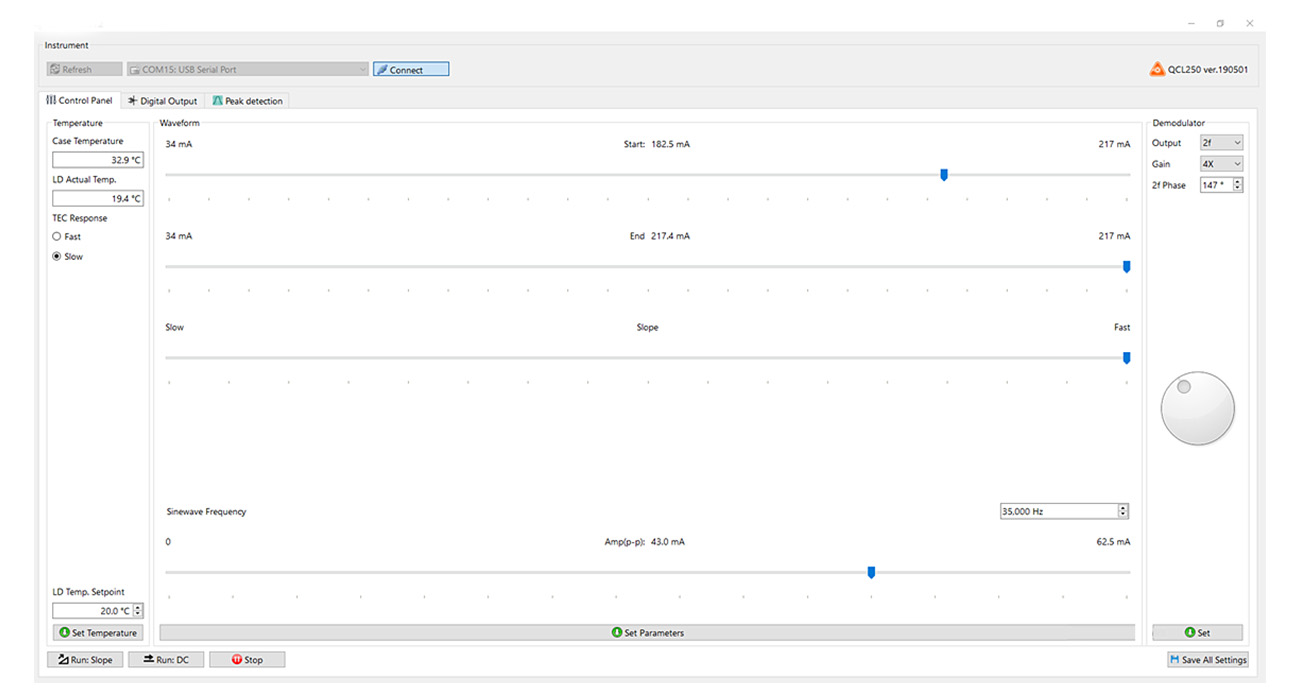

The 4.257µm ICL-DFB laser is a tunable continuous-wave laser developed by IdealPhotonics. It features a narrow linewidth, high power, and low power consumption, making it ideal for gas sensing applications, particularly for testing hydrocarbons and other related gases. Additionally, the benchtop ICL-DFB laser module integrates a driver and temperature control module, and it can be tuned via software to control the laser's temperature and operating current. This ensures stable operation of the laser and maintains the accuracy of the measurement values. The module also includes an FPGA, which facilitates the processing of gas concentration measurements.

Product features：Continuous wave、 Single-mode spectrum、 Tunable light source、 Low power consumption、 High-quality beam、 Narrow linewidth、 Software intelligent control、 Compact structure and size

Application area：TDLAS gas measurement system setup、 Mid-infrared system light source、 Mid-infrared device analysis

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-MIR-ICL-W4257-3-DFB-05

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameters	Unit	Technical Specs
		Min.	Typ.	Max.
		4.257um ICL-DFB

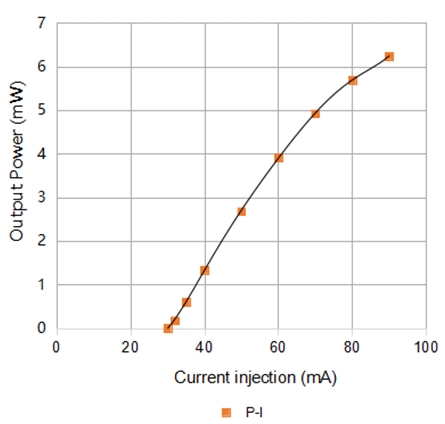

Laser Output Power	mW	0.5	5	8

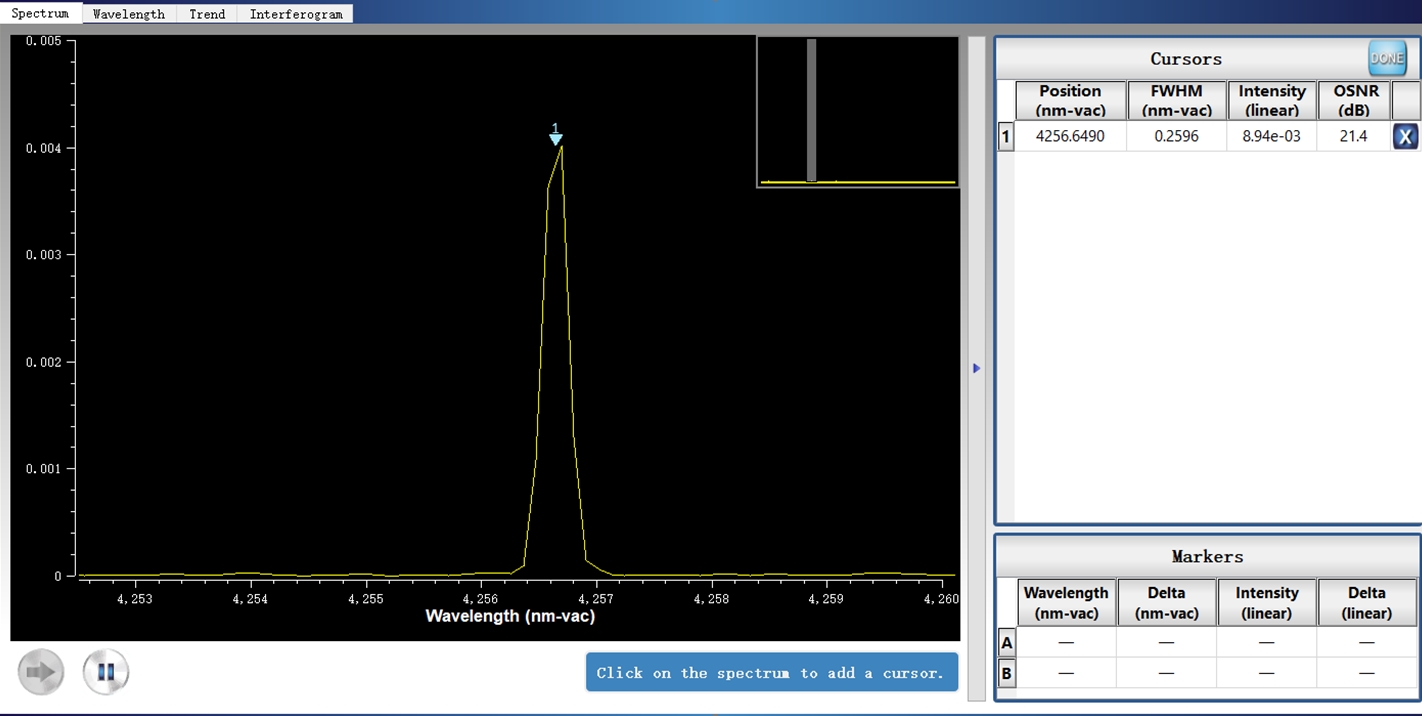

Peak Operating Wavelength	nm		4.257
Spectral Width (FWHM)	MHz		3
Output Side Mode Suppression Ratio (SMSR)	dB		20	30

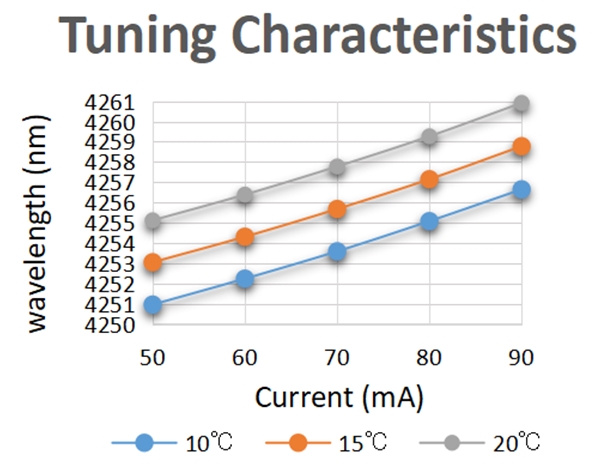

Wavelength Tuning Range	nm	6	10	25
Wavelength Temperature Coefficient	nm/℃		0.32
Wavelength Current Coefficient	nm/mA		0.06

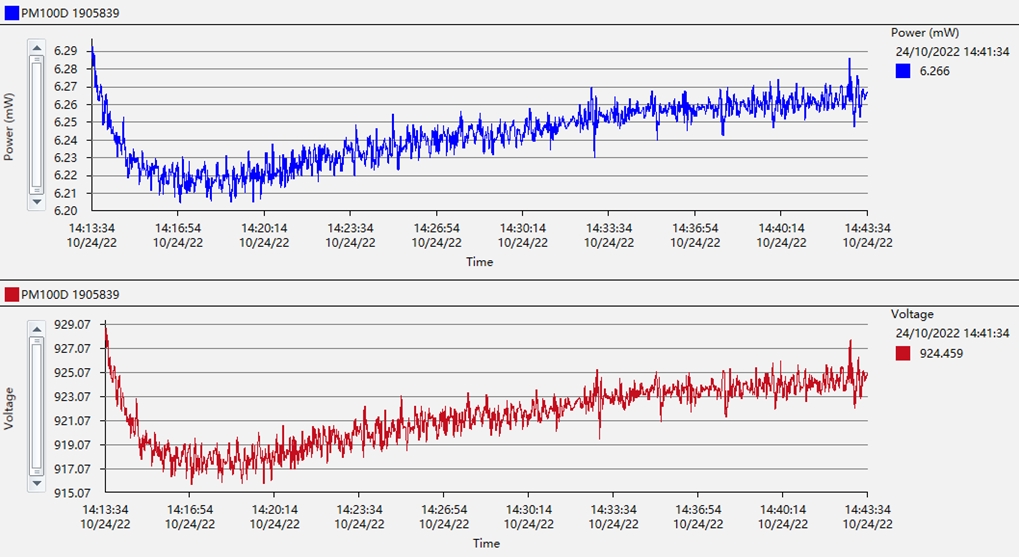

Output Power Stability (8h)	%		±1	±4
Output Power Adjustment Range	%	0		100
Operating Current	mA	40	80	140
Threshold Current	mA	25	40	80
Operating Voltage	V	7	9	12
Chip Operating Temperature	℃	-20	10	40
Storage Temperature	℃	15	20	65
Dimensions	mm	340(L)×240(W)×100(H)
