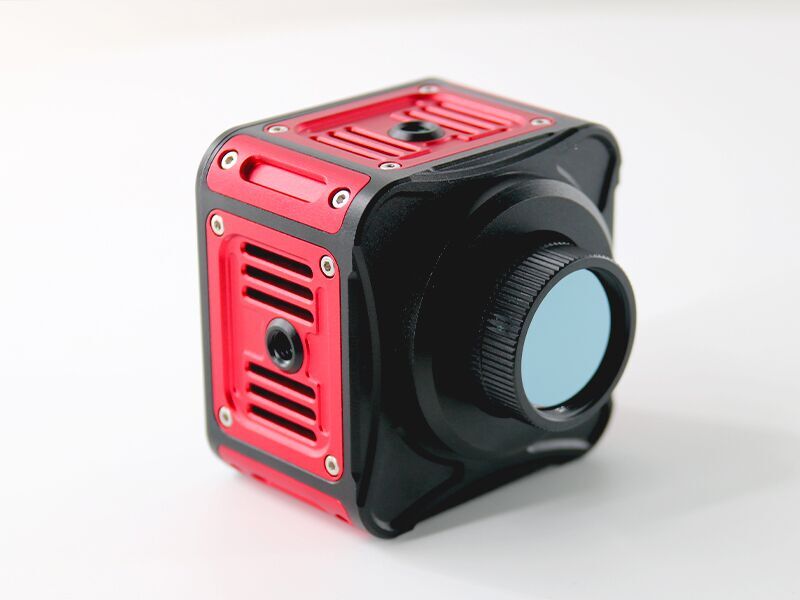

Ultra-Wideband Infrared Beam Quality Analyzer

IdealPhotonics' infrared beam quality analyzer can detect light spots and analyze parameters in the 1.2-15μm range. It offers spatial analysis accuracy down to the 10μm level, featuring an ultra-wide sensitivity range, a large target area, ultra-high resolution, and multi-functional software capabilities

Product features：Ultra-wide sensitivity range、 Large target area、 Ultra-high resolution

Application area：Infrared Imaging、 Infrared Laser M² Testing、 Infrared Optical System Characterization

Unit Price

Please contact customer service for a discounted quote.

Part Number

BAB1W

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameters

Optical Characteristics	Unit	Typical Value
Light Sensitive Surface		Composite thin-film VOx micro-measuring thermal radiation focal plane

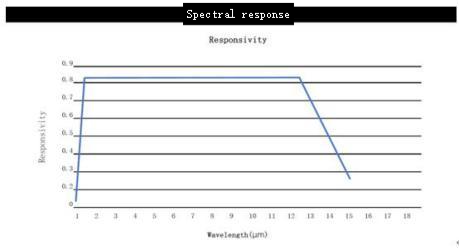

Wavelength Range	μm	1.2μm-15μm
Resolution		640× 512	640× 512	1280× 1024
Light Sensitive Surface Size	mm	10.8 ×8.7mm	7.6 ×6.1mm	15.3 × 12.2mm
Pixel Size	μm	17μm	12μm	12μm
Min. Detectable Light Intensity	μW/cm2	100μW/cm2
Saturation Light Intensity	mW/cm2	200mW/cm2
Damage Threshold	mW/cm2	250mW/cm2
Min. Detectable Spot Size		10×pixel size
Sampling Resolution	bit	14bit
Signal-to-Noise Ratio (SNR)		≥1000:1
Laser Mode Measurement		Continuous (CW) or Repetition rate ≥1kHz
Output Frame Rate	FPS	25FPS
Communication Interface		TYPE-C/USB3.0
Max. Laser Power	mW	300mW (with attenuation filter)/ 2mW (without attenuation filter)
Measurement Software		DoBEAM2024
Special Algorithms		Infrared interference fringe removal algorithm, adaptive background noise correction algorithm
Expansion Components		M² measurement module, including rail and lens system, conforms to ISO 11146 standard

Physical Parameters	Unit	Typical Value
Operating Temperature	℃	10~40℃
Storage Temperature	℃	0~50℃
Power Supply Interface		TYPE-C (shared with communication power, no separate power required)
Support Rod Interface		M6×4
Optical Interface		SM1× 1
Dimensions	mm	64.75mm×64.75mm×59.40mm
Light Sensitive Surface Depth	mm	~15mm
Detector Net Weight	kg	0.3kg

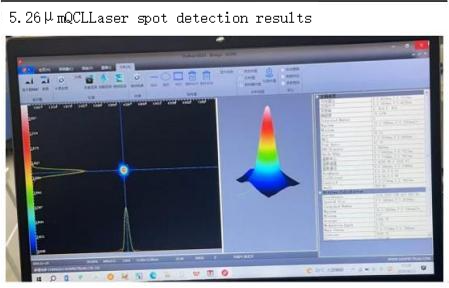

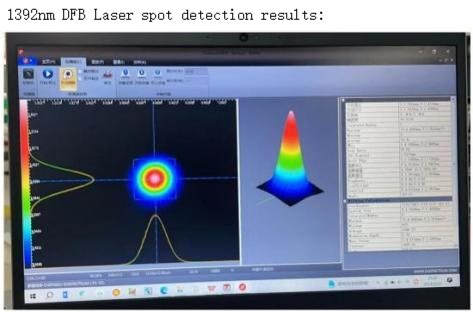

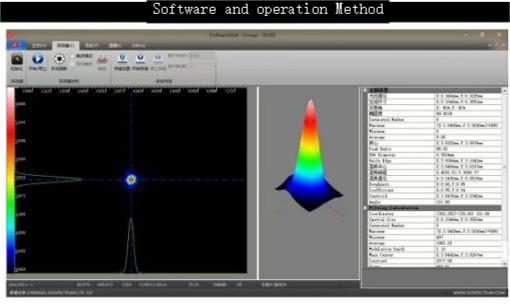

Quick Operation Guide:

Connect the Detector: Plug in the USB cable and USB key. The system will recognize the detector in about 10 seconds.

Launch Software: Double-click the DoBEAM2024 icon (run as administrator if needed).

Initialize the Detector:

Click "Detector" > "Initialize", wait 8 seconds for the screen to load.

Automatic Exposure Adjustment:

The software adjusts exposure automatically. Do not exceed 2mW without attenuation filters. The default password is "0000".

Stabilize the Detector:

Wait 60 seconds for stabilization. If there’s background interference, refresh manually or use the "Collect Background" and "Use Background" functions.

Storage & Playback:

Click "Detector" > "Storage Settings" to choose storage options. Click "Start Storage" to save data. Use "Playback" to open saved files.

Save PDF Report:

Click "Analysis" > "Save Result" to generate a PDF report.

Attachment 1: Optional Configuration Table

Beam Quality Analyzer
Product Name	Spectrum	Photodetector Size	Component	Reserved Optional Config
BA: "Beam Quality Analyzer"	B: Superwide Spectrum	1 ：10.8 ×8.7mm	G: With M2 Rail and Lens System
		2 ：7.6 ×6.1mm	W: Without
		3 ：15.3 × 12.2mm

Attachment 2: Model and Part Number Comparison Table

Model	Specifications
BAB1G	Superwide Mid-Infrared Beam Quality Analyzer (with M2 testing, photodetector size: 10.8 × 8.7mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
BAB1W	Superwide Mid-Infrared Beam Quality Analyzer (without M2 testing, photodetector size: 10.8 × 8.7mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
BAB2G	Superwide Mid-Infrared Beam Quality Analyzer (with M2 testing, photodetector size: 7.6 × 6.1mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
BAB2W	Superwide Mid-Infrared Beam Quality Analyzer (without M2 testing, photodetector size: 7.6 × 6.1mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
BAB3G	Superwide Mid-Infrared Beam Quality Analyzer (with M2 testing, photodetector size: 15.3 × 12.2mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
BAB3W	Superwide Mid-Infrared Beam Quality Analyzer (without M2 testing, photodetector size: 15.3 × 12.2mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
