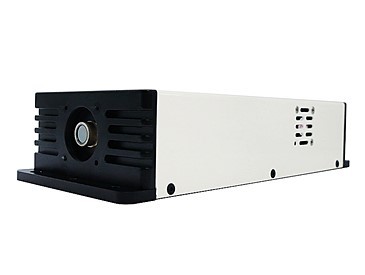

3.45um Low Power Benchtop ICL-DFB Tunable Continuous Wave Laser (Benchtop Light Source)

The 3.45um ICL-DFB Laser is a tunable continuous wave laser developed by Idealphotonics 。 It features a narrow linewidth, high power, and low power consumption, making it ideal for gas sensing applications, especially for testing hydrocarbons and other related gases. The desktop ICL-DFB laser module integrates a driver and temperature control module. It also supports software control for tuning the temperature and operating current of the laser, ensuring stable operation and maintaining measurement accuracy. Additionally, the laser module incorporates an FPGA, which facilitates the processing of gas concentration measurements.

Product features：Continuous wave、 Single-mode spectrum、 Tunable light source、 Low power consumption、 High-quality beam Narrow linewidth、 Software intelligent control、 Compact size

Application area：TDLAS HCL and formaldehyde, methane, and other gas system measurement setup、 Mid-infrared system light source、 Mid-infrared device analysis、

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-MIR-ICL-W3450-3-DFB-05

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameters	Unit	Technical Specs
		Min.	Typ.	Max.
		3.45um ICL-DFB
Laser Output Power	mW	0.5	5	8
Peak Operating Wavelength	um		3.45
Spectral Width (FWHM)	MHz		3
Output Side Mode Suppression Ratio (SMSR)	dB		20	30
Wavelength Tuning Range	nm	6	10	25
Wavelength Temperature Coefficient	nm/℃		0.32
Wavelength Current Coefficient	nm/mA		0.06
Output Power Stability (8h)	%		±1	±4
Output Power Adjustment Range	%	0		100
Operating Current	mA	40	80	140
Threshold Current	mA	25	40	80
Operating Voltage	V	7	9	12
Chip Operating Temperature	℃	-20	10	40
Storage Temperature	℃	15	20	65
Dimensions	mm	340(L)×240(W)×100(H)

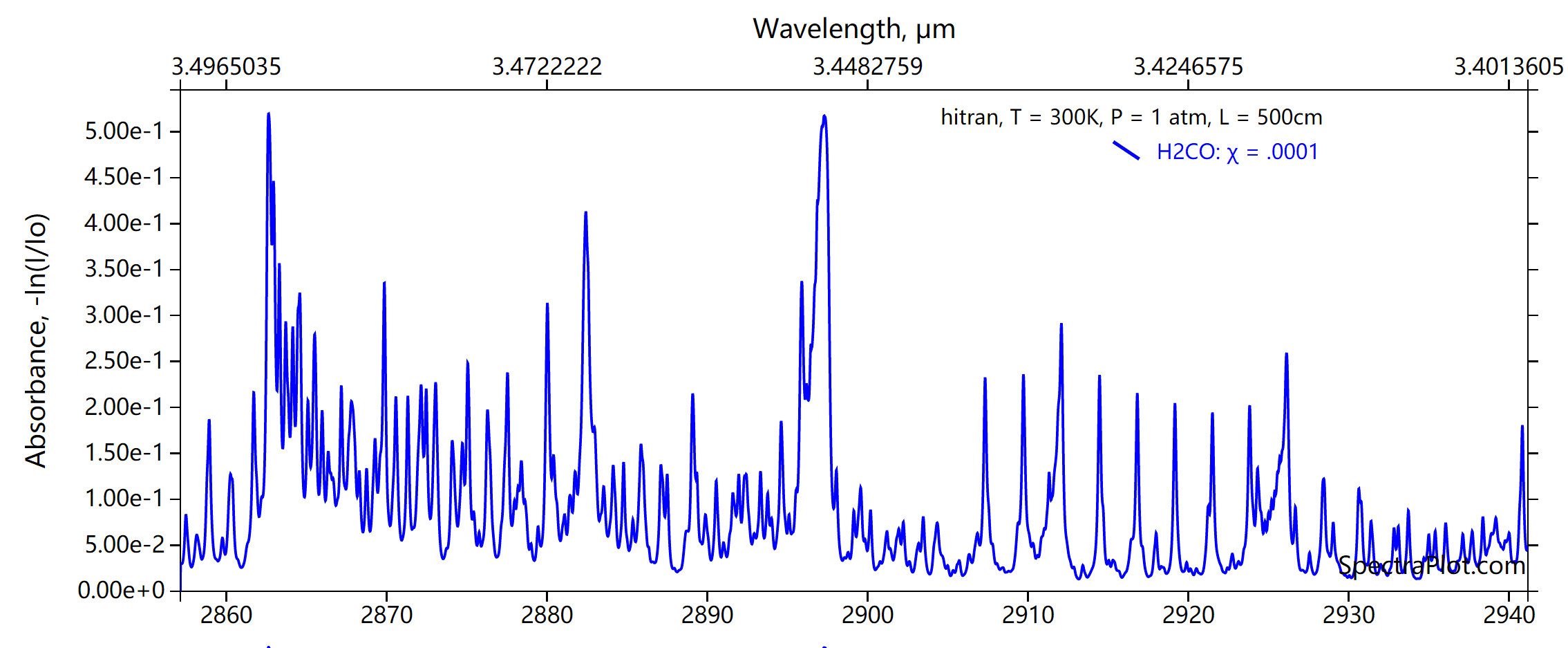

Formaldehyde Absorption Spectrum

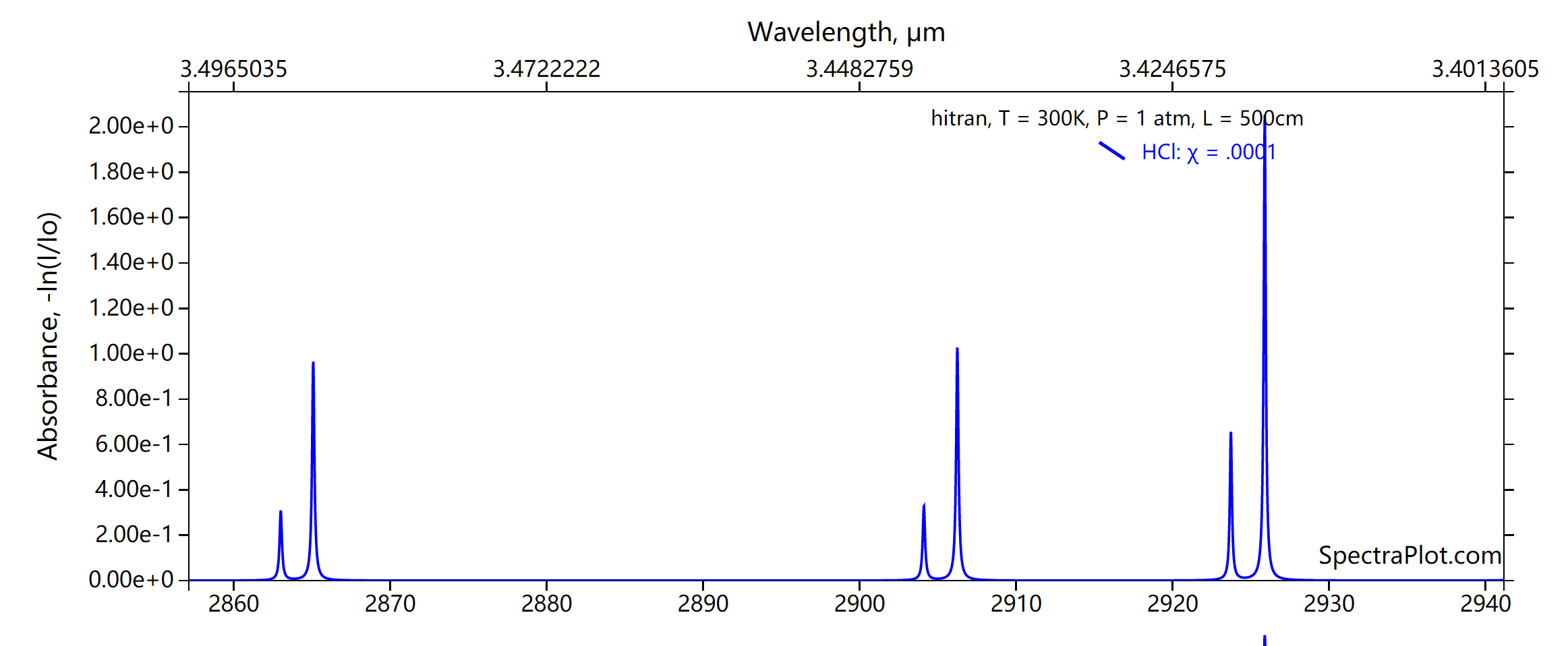

HCL Absorption Spectrum

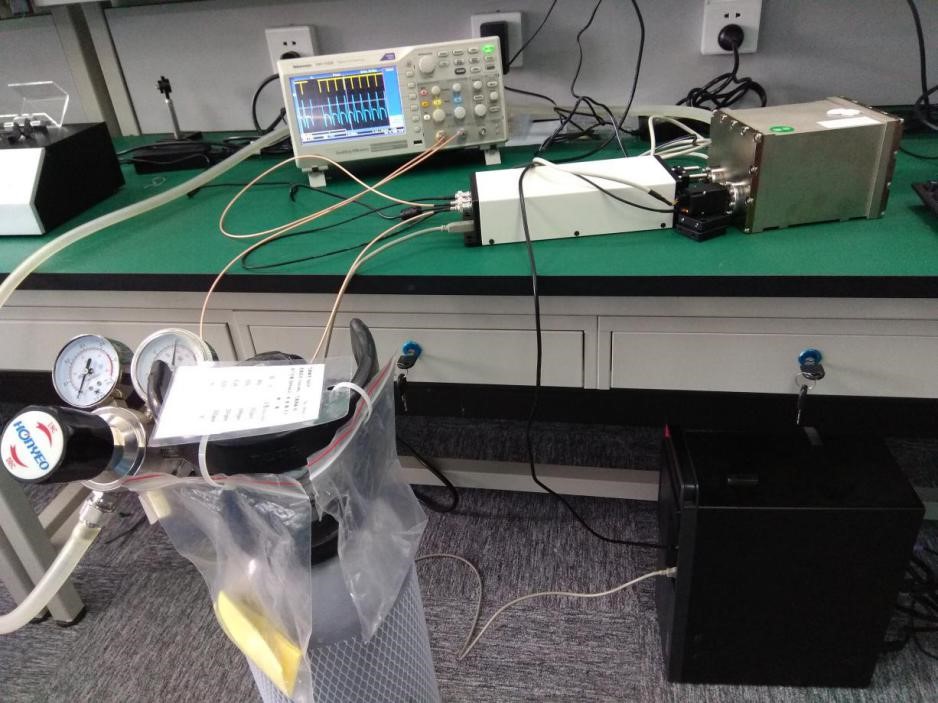

System Setup Diagram

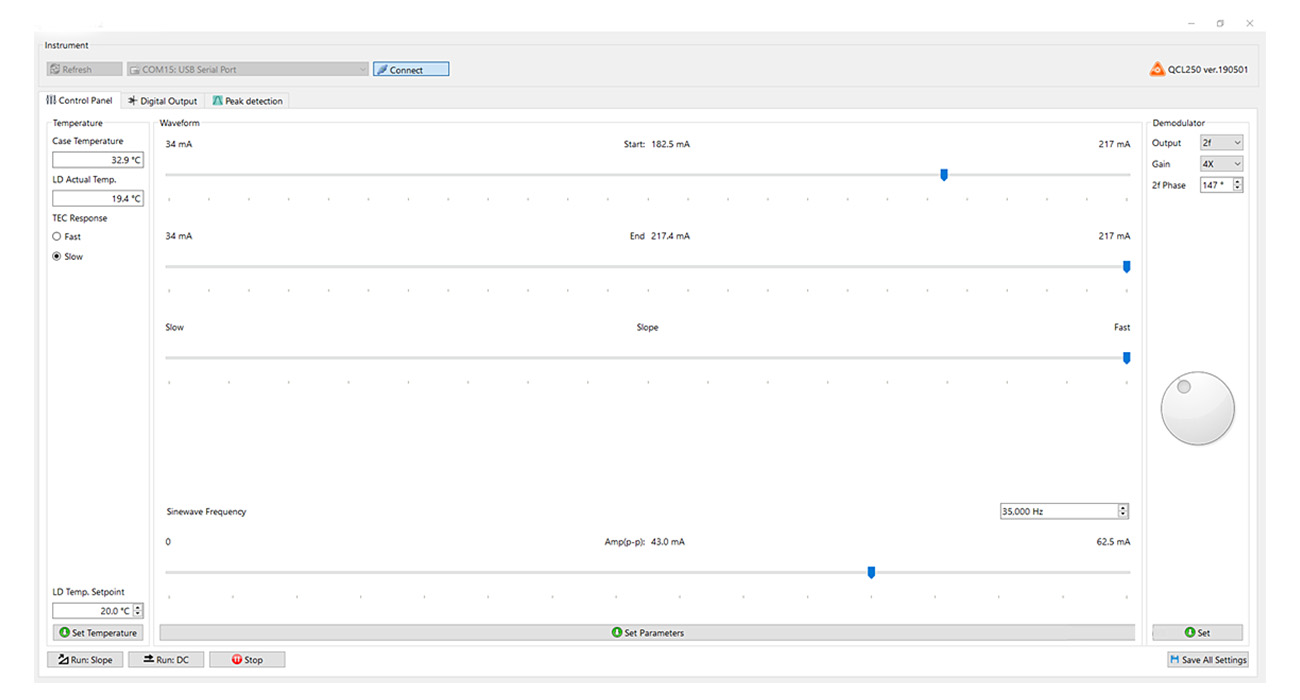

Control Software


Ordering info

MIR-ICL-W3450-3-DFB-05

Center Wavelength: 3450: 3.45 µm

Bandwidth：3：3MHz

Output Power：05:5mW
