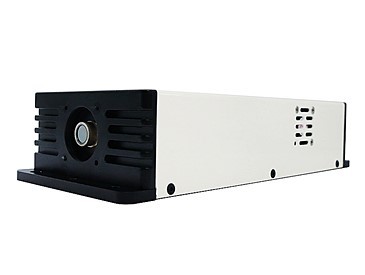

3.39um Low-Power Benchtop ICL-DFB Tunable Continuous-Wave Laser (Benchtop Light Source)

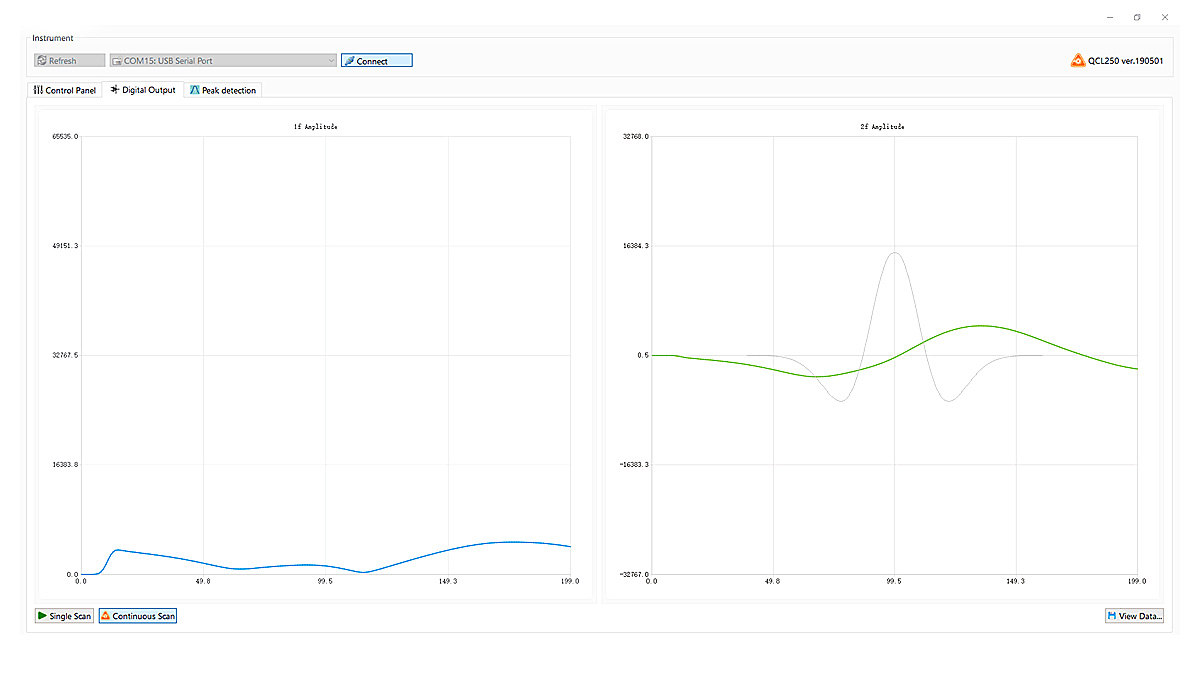

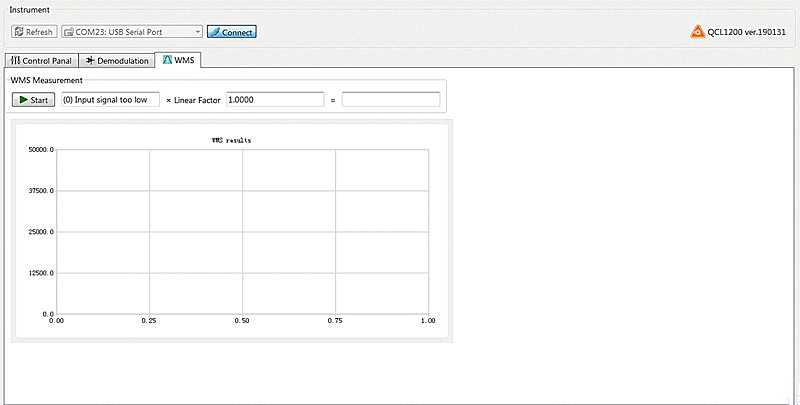

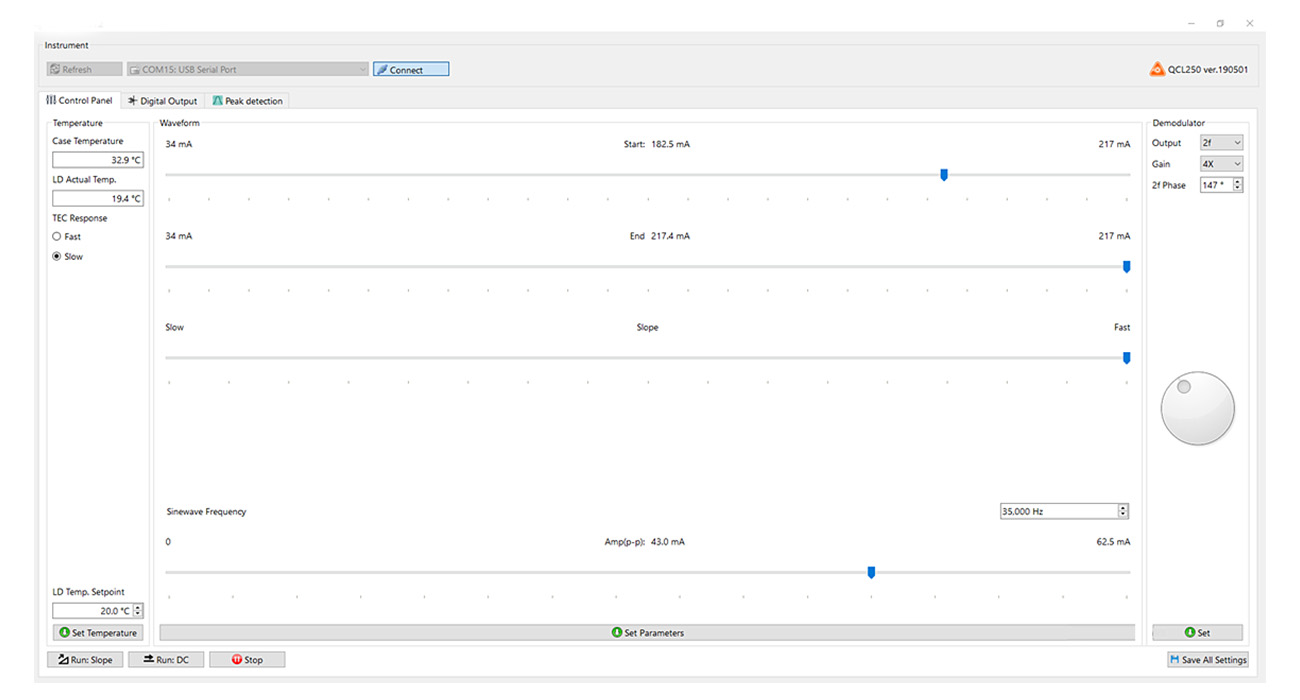

The 3.39um ICL-DFB laser is a tunable continuous-wave laser developed by Idealphotonics. It features a narrow linewidth, high power, and low power consumption, making it ideal for gas sensing applications, particularly for testing hydrocarbons and other related gases. The benchtop ICL-DFB laser module integrates a driver and temperature control module, and it allows software control of the laser's temperature and operating current, ensuring stable operation and maintaining measurement accuracy. Additionally, the laser module includes an FPGA, facilitating the processing of gas concentration measurements.

Product features：Continuous wave、 Single-mode spectrum、 Tunable light source、 Low power consumption、 High-quality beam、 Narrow linewidth、 Software intelligent control、 Compact size

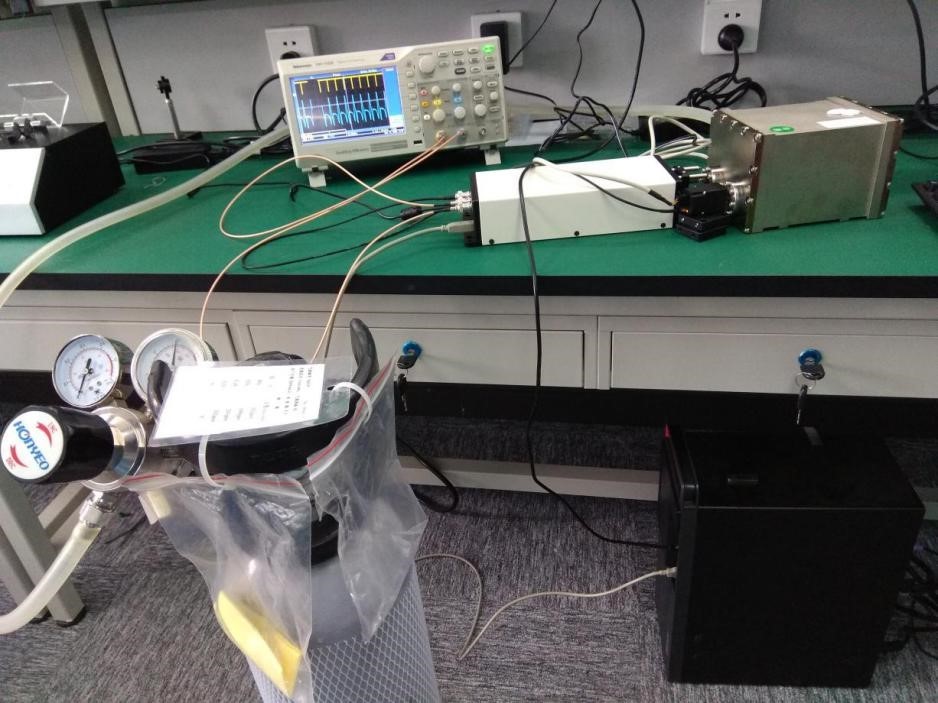

Application area：TDLAS gas system measurement setup、 Mid-infrared system light source、 Mid-infrared device analysis

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-MIR-ICL-W3390-3-DFB-05

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Unit	Specs
		Min.	Typ.	Max.
		3.39um ICL-DFB

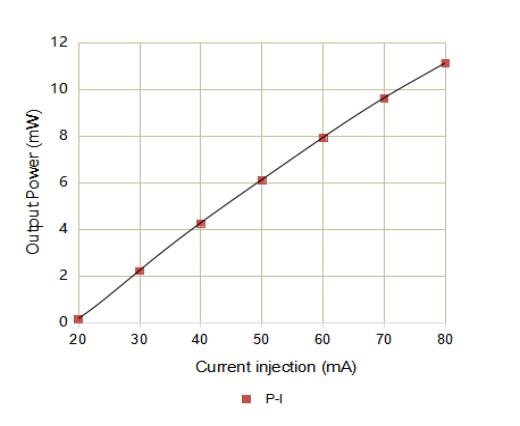

Laser Output Power	mW	0.5	5	8
Peak Operating Wavelength	um		3.39

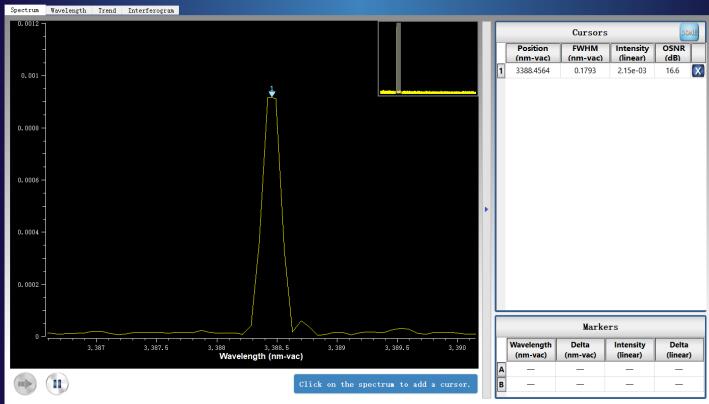

Spectral Width (FWHM)	MHz		3
Side Mode Suppression Ratio (SMSR)	dB		20	30
Wavelength Tuning Range	nm	6	10	25

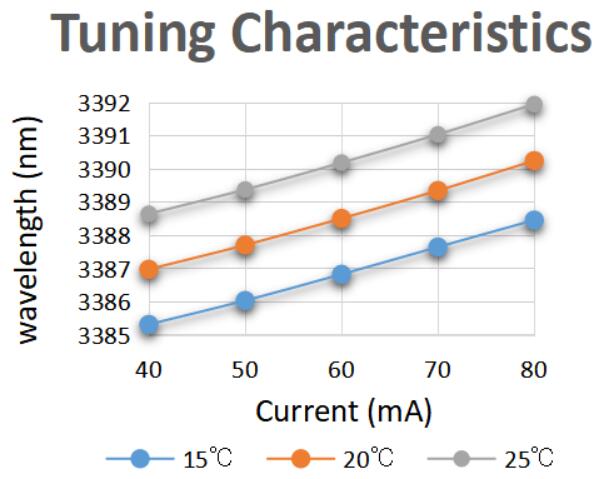

Wavelength Temperature Coefficient	nm/℃		0.32
Wavelength Current Coefficient	nm/mA		0.06

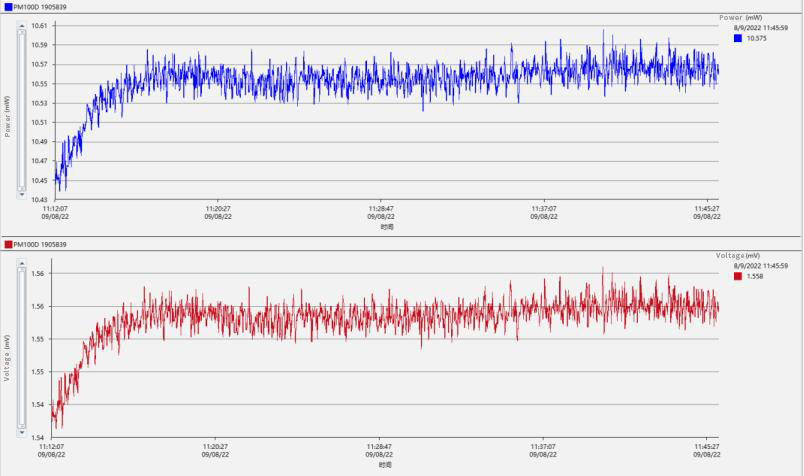

Output Power Stability (8h)	%		±1	±4
Output Power Adjustable Range	%	0		100
Operating Current	mA	40	80	140
Threshold Current	mA	25	40	80
Operating Voltage	V	7	9	12
Chip Operating Temperature	℃	-20	10	40
Storage Temperature	℃	15	20	65
Dimensions	mm	340(L)×240(W)×100(H)
