Mark-Type Thermally Stable Standard 1525-1565nm

The Mark-ID Thermally Stable Photonic Filter from Xiaoxiao Photonics is based on advanced ETALON technology , incorporating unique optical and mechanical designs , along with advanced packaging technology. This ensures the stability of the filter's wavelength under extreme environmental conditions , including temperature and humidity . With our unique patented technology , the filter guarantees the wavelength's target accuracy within ITU +/- 1.25 GHz , and is available in selectable options . This ITU-aligned filter can be used for channel monitoring and wavelength locking in Wavelength Division Multiplexing (WDM) systems . We also offer special technology options for customers to choose specific wavelength accuracy . This thermally stable filter module can lock one or more consecutive adjacent wavelength peaks , forming a fixed wavelength marker . This wavelength marker helps client scanning systems determine their specific position within a wavelength range . The unique design of this filter ensures the precision of the standard , channel spacing , and operational wavelength , with a wide selection range . The thermally stable filter, designed for customer use , is highly compatible with various spectral applications , including telecom , wavelength reference and calibration , fiber optic sensing systems , testing and measurement , and laser wavelength stability control .

Product features：Based on advanced Etalon technology 、 Wavelength stability 、 Compact packaging

Application area：FBG sensing systems 、 System monitoring 、 Testing and measurement 、 Instrumentation

Unit Price

Please contact customer service for a discounted quote.

Part Number

PETM1-1111212

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Technical Specifications

Parameter	Unit	Value		Notes
Wavelength Range	nm	1525 ~ 1565		Customizable
Insertion Loss	dB	Typ1.0, Max2.5
Polarization Dependent Loss	dB	0.1
Polarization Accuracy	GHz	+/- 0.1
Channel Spacing	GHz	100
Thermal Stability	GHz	≤ +/- 0.8 (Standard)		Over the entire temperature range
Precision		7	14
Transmission Bandwidth @ 3dB	GHz	≤ 16	≤ 9
Contrast	dB	≥ 13	≥ 18
Marking Channel (Mark Point)		C34(1550. 116)		Other wavelengths available
Return Loss	dB	≥ 20		Customizable based on requirements
Max Optical Power	mW	500
Operating Temperature	0C	-5 ~ 70		Wider temperature range availabl
Storage Temperature	0C	-40 ~ 85
Dimensions (L × W × H)	mm	35× 15× 11
Fiber Type	N/A	SMF-28e + with 900μm fiber

*Notes:The above parameters exclude the connector specifications and are only valid at the specified wavelengths, polarization states, and temperature ranges.

Specifications are subject to change without prior notice.

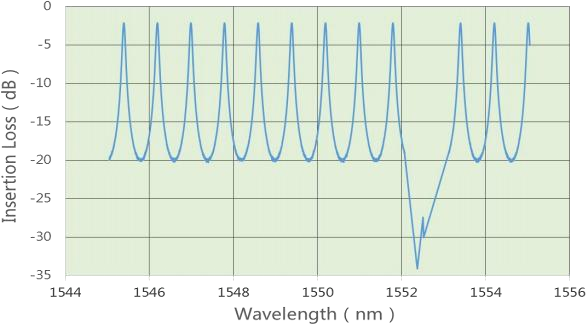

Spectral Diagram

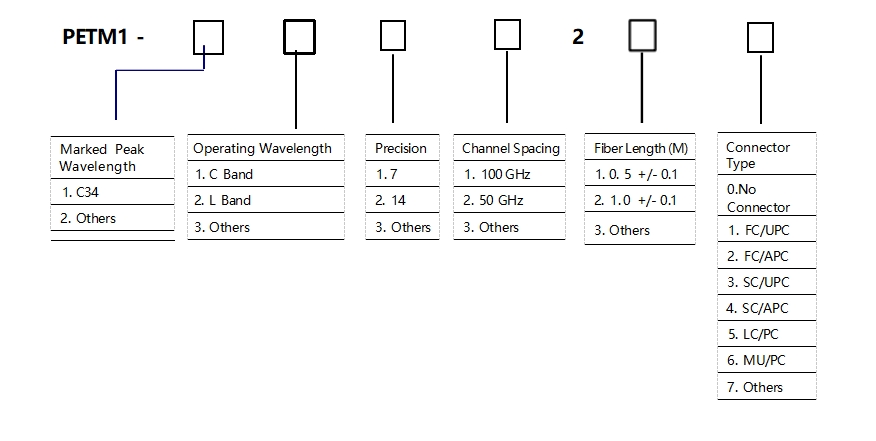

Ordering Information (Example: PETM1-1111212)
