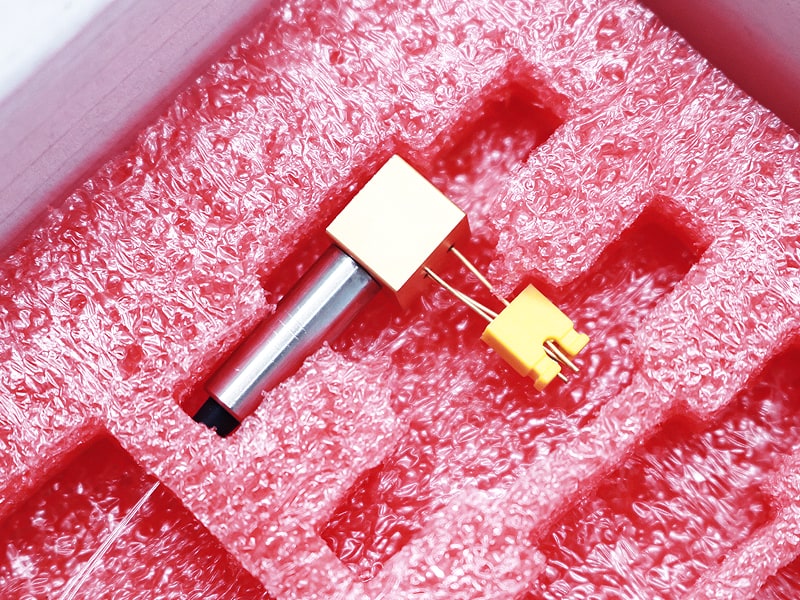

Small L-band MEMS tunable optical filter 1575-1610nm

MEMS tunable filters are based on the principles of MEMS (micro-electromechanical systems) technology and grating technology. They have the characteristics of small size, fast speed, long life, high stability and reliability, and can cover the O-band, C-band or L-band wavelength range. Device scanning range reaches 80nm

Product features：High thermal stability and repeatability, long service life、 Excellent optical performance, low insertion loss, small size、 3dB bandwidth 1.0-1.4nm(customizable)、 Customizable (wavelength and attenuation range)

Application area：Optical channel performance monitoring、 Spectral analysis、 ROADM、 Signal tracking

Unit Price

Please contact customer service for a discounted quote.

Part Number

TOF-1-16-SM-10-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Technical Parameters

Parameters		Index		Unit
		Max.	Min.
Wavelength range	O-Band	1270	1350	nm
	C-Band	1510	1590	nm
	L-Band	1550	1630	nm
Insertion loss (IL)		<4.5(typical<3.5)		dB
Response time		≤20		ms
Wavelength dependent loss (WDL) @OdB		＜1.5（typical＜1）		dB
Center frequency polarization dependent loss @0dB		＜0.5		dB
Bandwidth @3dB		1.0-1.4		nm
Bandwidth @20dB		2.6-3.6		nm
Return loss (RL)		＞40		dB
Side peak suppression ratio		≤30		dB
Lifespan		1*10^9		cycles
Maximum input optical power		20		dBm
Operating temperature		-5	70	℃
Storage temperature		-40	85	℃
ESD threshold (HBM)		500		V
DC drive voltage		0~50		V

Gain characteristic

	Definition	Description	Instructions
PIN1	VFS	Power on for filtering on the short-wave side	1. Taking O-band TOF as an example: When PIN1&PIN2 is powered, the product works in the 1270nm-1310nm band;
			2. Power-on range: 0-50V
PIN2	GND	Grounding
PIN3	VFL	Power on for filtering on the long-wave side	1. Taking O-band TOF as an example: When PIN3&PIN2 is powered, the product works in the 1310nm-1350nm band;
			2. Power-on range: 0-50V

Notes:

1. PIN1 and PIN3 cannot be powered at the same time:

2. Please pay attention to electrostatic protection when storing and operating the product;

3. The product damage voltage is 65V:

Ordering Info

Bandwidth	Tuning Range	Fiber Type	Fiber Length	Connector Type
10:nm	13:1290-1320nm	SM:SM,9/125	05:0.5m±5cm	OO:None
12:1.2nm	15:1528-1565nm	X:Others	10:1.0m±5cm	FP:C/PC
	16:1575-1610nm		15:1.5m±5cm	FA:FA/APC
			X:Others	SP:SC/PC
				SA:SC/APC
				LP:LC/PC
				LA:LC/APC
				X:Others
