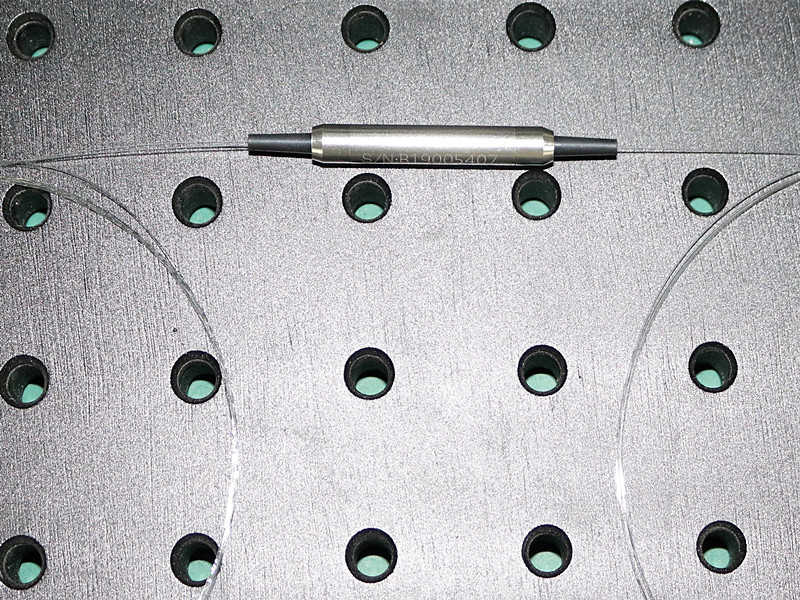

1550nm single mode bandpass fiber filter 3dB passband 20nm without connector

Idealphotonics' fiber filters use a special fiber structure to select or filter out specific wavelengths of light from different wavelengths. We can provide filter devices with different optical power versions according to user needs, which can be used in dense wavelength division multiplexing fiber communications, frequency division multiplexing fiber communications, spectrum testing, fiber sensors, fiber lasers and fiber amplifiers. If you need to customize the center wavelength, operating temperature or specific working bandwidth, please contact us for customization.

Product features：Wide passband range、 Low insertion loss、 High passband isolation、 Stable operating characteristics

Application area：Fiber amplifier、 WDM&DWDM system、 Fiber equipment、 Fiber laser

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-BPF-W1550-B20-P1-1-9-SN

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameters		Unit	Value
Center Wavelength		nm	1550
Min. Pass BandWidth @ 0.5dB		nm	0.3, 0.7, 2.0, 3.0, 4.0, 5.0
Insertion Loss over Pass Band Wavelength		dB	≤1.2
Stop Band @ 25dB	0.3nm Bandwidth	nm	1520~1549 & 1551~1610
	0.7nm Bandwidth	nm	1520~1548.5 & 1551.5~1610
	2nm Bandwidth	nm	1520~1547 & 1553~1610
	3nm Bandwidth	nm	1520~1546 & 1554~1610
	4nm Bandwidth	nm	1520~1545 & 1555~1610
	5nm Bandwidth	nm	1520~1544 & 1556~1610
ASE Direction		-	F: Forward, B: Backward, T: Two-way
Conﬁguration		-	D: 2-port, Y: 3-port, X: 4-port
Optical Return Loss		dB	≥50
Polarization Dependent Loss		dB	≤0.1
Fiber Type	Input&Output	-	SMF-28 Fiber or 10/130um DC Fiber (O)
		-	12/130um DC Fiber (T) or 20/130um DC Fiber (Q)
		-	25/250um DC Fiber (R) or 25/300um DC Fiber (G)
	ASE Guide Out (Y/X Type)	-	Same Fiber or MM Fiber
Fiber Tensile Load		N	5
Max. Optical Power (CW, ASE+Signal)		mW	300
Operating Temperature		°C	0~70
Storage Temperature		°C	-40~85
Package Dimension	Stainless Steel Tube (SST)	mm	(Ø)5.5x35
Package Dimension	Metal Box	mm	(L)120x(W)12x(H)10

Note: *. All indicators are without connectors and are only valid at the above wavelengths, polarization states and temperatures.

**. Indicators are subject to change without prior notice.

Ordering Information

NIR-BPF- W□□□□-B○-P▽-☆-△-XX

W□□□□：Wavelength

1520:1520nm

1550:15500nm

*****

1560:1560nm

1580:1580nm

B○：3dB bandpass width

08:0.8nm

P▽： Package

1: Standard

2：Mini

☆ ：Pigtail Length

05:0.5m

1：1m

10:10m

△：Loose Tube

B:Bare Fiber

9:900um Loose Tube

20:2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PA=PM Fiber+ FC/APC

PP=PM Fiber+ FC/PC

PN= PM Fiber+ none
