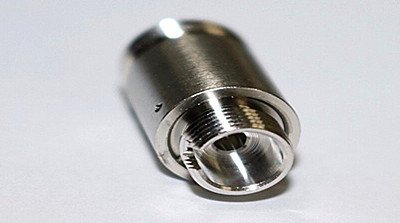

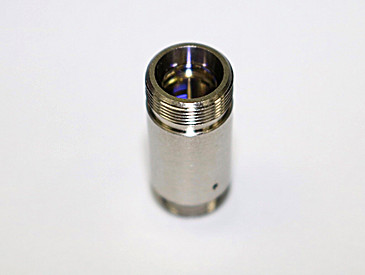

780nm FC/APC Fixed Fiber Collimator NA 0.37 Focal Length 10.1mm

Idealphotonics' fiber collimators are pre-aligned to collimate light from FC/APC connector fibers and have diffraction-limited performance. These fiber collimators have no moving parts, are compact, and can be easily integrated into existing devices. Because aspheric lenses produce chromatic aberration, the effective focal length (EFL) is wavelength-dependent. The design wavelength is the wavelength corresponding to the ideal beam divergence angle. Some collimators at the design wavelength have different collimated beam diameters. When connected to specific single-mode fiber jumpers, they can collimate light at the design wavelength. In addition, the aspheric lenses are anti-reflection coated on both sides to minimize surface reflections (see the AR Coating Curves tab). For some applications, the collimators can also be used for other wavelengths within the AR coating wavelength range. Please refer to the theoretical divergence angle curves of each collimator to determine whether it is suitable for your application. These collimators have a stable operating range from -40°C to 93°C. Please note that these collimators cannot be used in a vacuum. If you need a custom alignment wavelength, operating temperature, or vacuum compatibility, please contact us for customization.

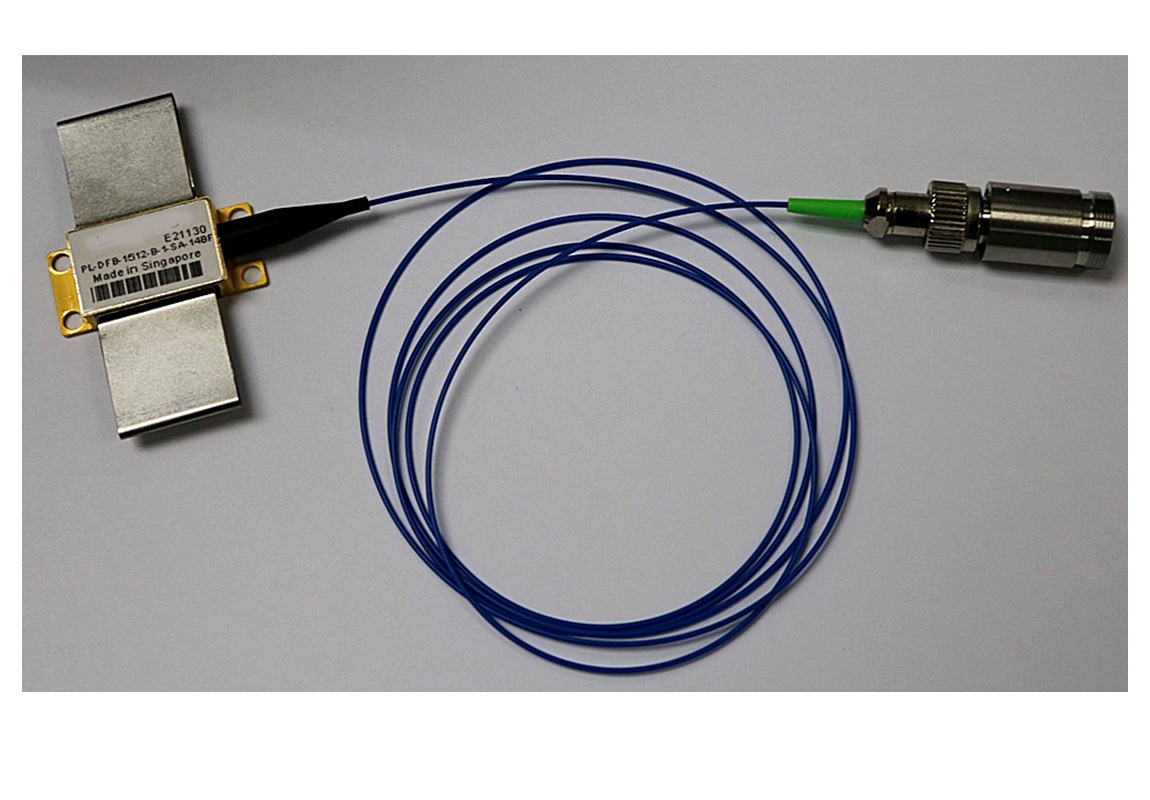

Product features：Fiber Collimator with FC/APC Connector (2.2 mm Wide Key) for Single Mode Patch Cables、 Aligned wavelengths from 405 nm to 4.55 µm、 Collimated beam diameters from 0.63 mm to 4.05 mm, depending on wavelength、 Each collimator is factory aligned、 Simplifies fiber-coupled detection systems、 Non-magnetic stainless steel housing compatible with narrow and wide key FC/APC plugs

Application area：Fiber amplifiers、 WDM & DWDM systems、 Fiber optic equipment、 Fiber lasers

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-W780-N3E10-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

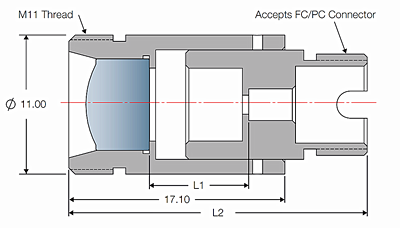

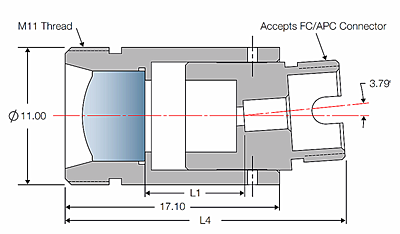

Dimensional Drawing

Parameters

Parameter	Unit	Value	Note
Focal length Specified wavelength (nm)	nm	1150.00	Other wavelengths can be customized
Insertion loss	dB	≤0.2	1550nm,30mw,DFB
Corrected wavelength (nm):	nm	1550.00	@25 Celsius
Corrected wavelength (nm):	nm	1310.00	@25 Celsius
Effective aperture CA	mm	5.5	Full temperature ：-40-+75℃
Effective focal length EFL	mm	11.0
Shield diameter	mm	11.00
Shield length	mm	17.1
Numerical aperture NA	N/A	0.25	Other fiber types available

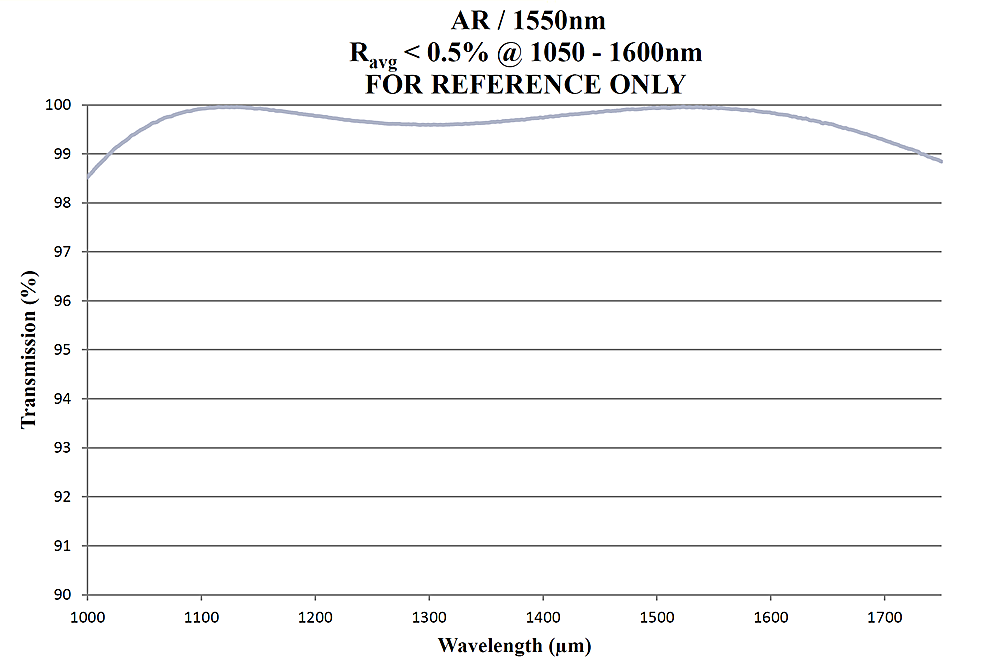

Coating:		BBAR (1050-1600nm)
Connector		FC
Return loss (in/out)	dB	> 60/55dB
Maximum operating power	W	2
Operating temperature	℃	-5-70℃
Storage temperature	℃	-40-85℃
Substrate	D-ZK3
Refractive index nd:	1.586
Effective focal length/effective aperture diameter ratio		2.00
Wavelength range		1050 - 1600
RoHS:		Comply with standards
Test light source		1550nm Benchtop light source
Package size (mm)		As shown below
