2000nm Band ASE Broadband Light Source, Modular, 40mW (Non-adjustable)

2000nm-band ASE Broadband Light Source The 2000nm band ASE broadband light source uses a short-wavelength laser-pumped thulium-doped fiber, with single-mode fiber output power reaching up to 40mW. The spectral coverage ranges from 1850 to 2000nm, making it suitable for applications such as laser biology and spectral measurement

Product features：Spectral flatness、 Mid-infrared band、 High stability output power

Application area：Fiber optic sensing、 Medical imaging、 Fiber optic device testing

Unit Price

Please contact customer service for a discounted quote.

Part Number

ASE-2000-40-SM-M

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameters

Optical Specifications	Unit	Typical Value	Remarks

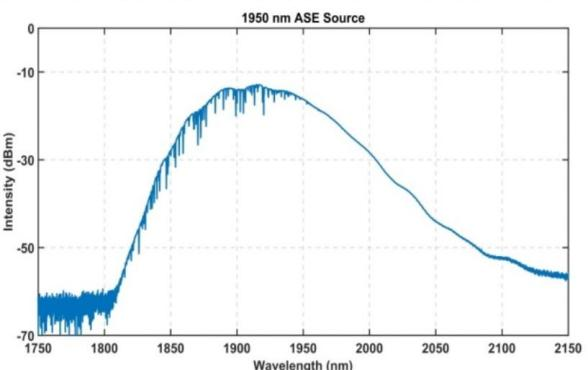

Spectral Range	nm	1850~2000
Output Power	mW	10/20/40	Non-adjustable
Isolation at Output Port	dB	>35
Short-term Stability (15 min)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term Stability (8 hours)	dB	≤ ±0.05	Equivalent≤± 1.2%
Polarization Extinction Ratio (PER)	dB	≤ 0.2
Tail Fiber and Connector Type	-	SMF-28 or SM 1950， FC/A PC

Electrical and Environmental Parameters	Benchtop	Module
Control Method	Keypad	RS232 Serial Communication
Communication Interface	Optional	DB9 Female
Power Supply	100~240V AC,<30W	DC12V3A, ≤36W
Dimensions	260(W) ×320(D) ×120(H)mm	139(W)x235(D)x70(H)mm
Operating Temperature Range	-5~+35 °C
Operating Humidity Range	0~70%

Ordering info/PN#
ASE	Spectral Range	Output Power (mW)	Fiber Type	Packaging Type
	2000	10/20/40	SM	B = Desktop; M = Modular
