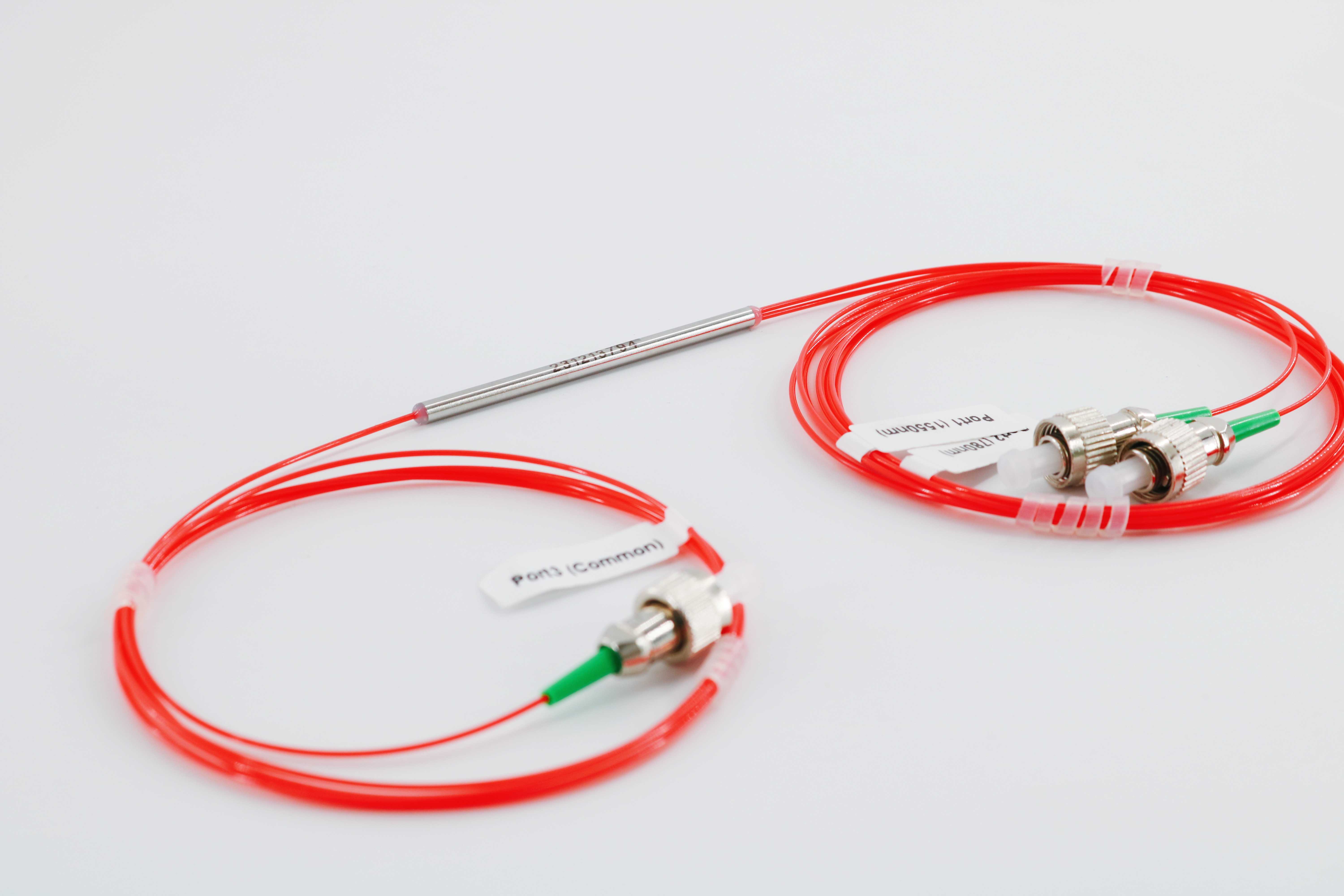

780/1550nm Single Mode Taper WDM FC/APC

The tapered wavelength division multiplexing product for optical communication has the advantages of low loss, low polarization-dependent loss, wide operating band and operating temperature range, and no glue in the optical path. This series of products can be used in wavelength division multiplexing systems, optical fiber sensing systems, and optical fiber optical detection equipment.

Product features：Wide operating wavelength range & wide temperature range、 Low insertion loss、 Low polarization-dependent loss and polarization mode dispersion、 High reliability and stability

Application area：WDM systems、 Fiber optic sensing systems、 Fiber optic equipment、 Fiber lasers

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-WDM-W7815-1-9-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Main Parameters:

Parameters	Unit	Value	Note
Operating wavelength	nm	780/1550
Max. insertion loss	dB	0.6	Port3→ Port1
Max. insertion loss	dB	1.5	Port3→ Port2
Min. isolation	dB	17	Port3→ Port1
Min. isolation	dB	17	Port3→ Port2
Min. directivity	dB	50
Connector type	FC/APC
Fiber type	Port2 HI780 Port 1/3 SMF-28e		900um Loose tube
Fiber length	m	1
Max. power	mW	500
Max. tensile load	N	5
Operating temperature	℃	-5 to +70
Storage temperature	℃	-40 to +85
Dimensions	mm	Φ3.0x54

Port 1 :1550nm
