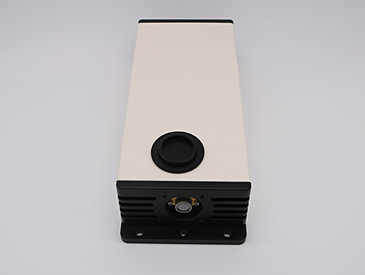

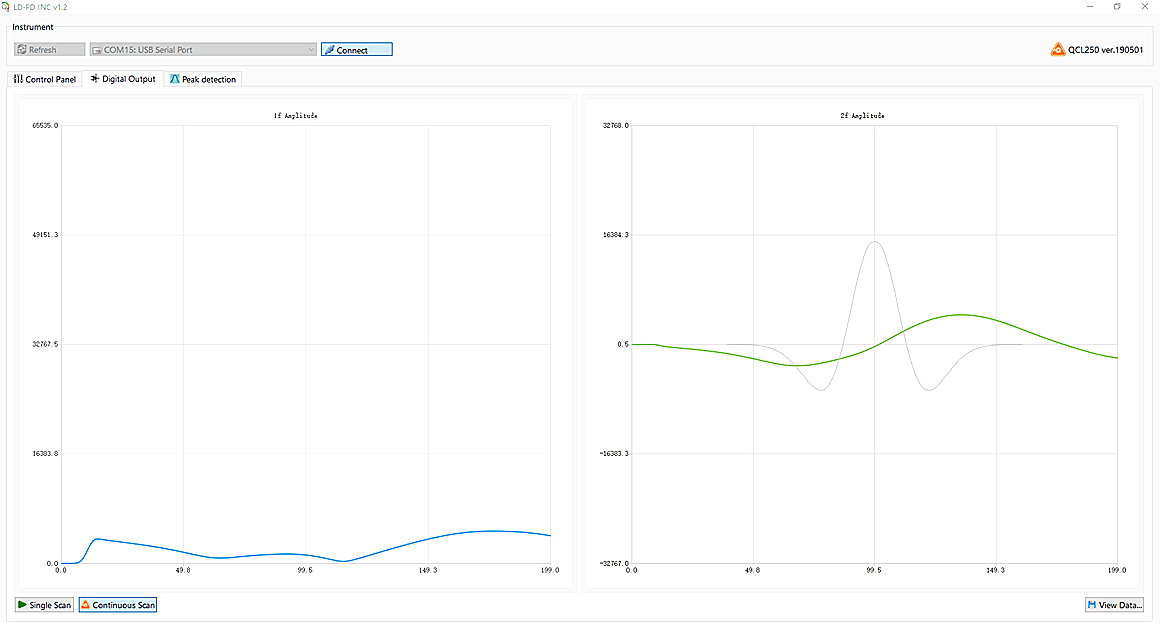

Algorithm calibration interface

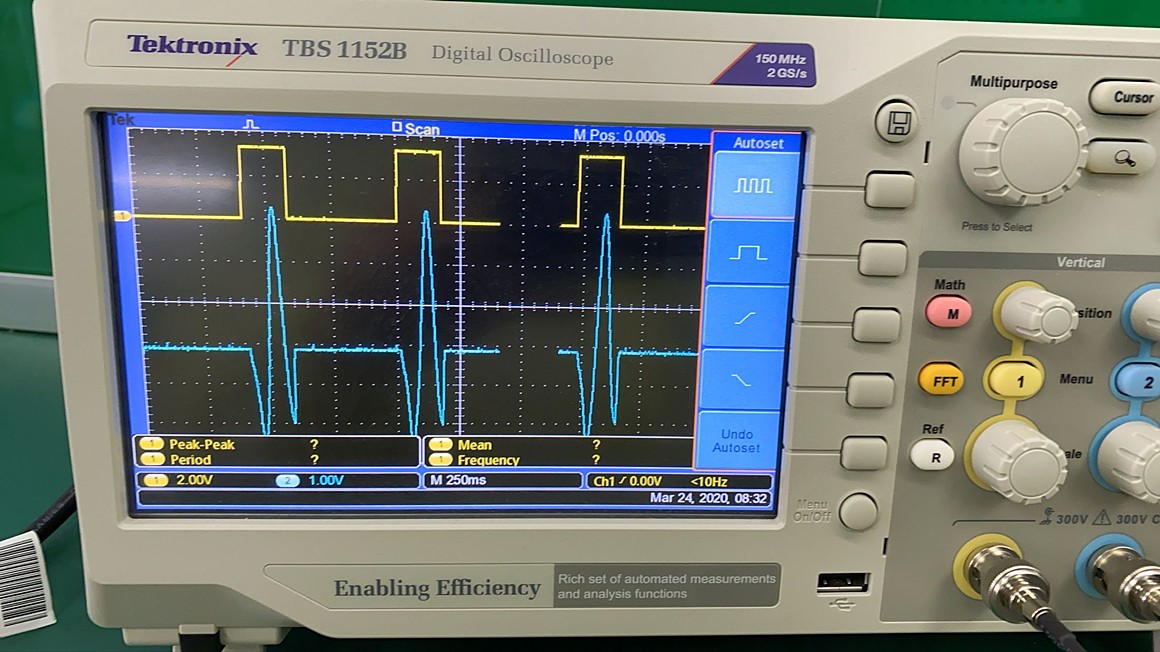

Modulation signal linearity test (oscilloscope voltage signal effect diagram)
Main Parameters
Parameters | Unit | Specifications | ||
Min. | Typ. | Max. | ||
7.42umDFB-QCL | ||||
Laser collimated output power | mW | 10 | ||
Peak operating wavelength | um | 7.42 | ||
Spectral width (FWHM) | MHz | 1 | ||
Output side mode suppression ratio (SMSR) | dB | 20 | ||
Output isolation | dB | 30 | ||
Wavelength temperature coefficient | nm/℃ | 0.6 | ||
Wavelength current coefficient | nm/mA | 0.2 | ||
Output power stability (8 hours) | % | ±1 | ±4 | |
Output power adjustable range | % | 0 | 100 | |
TEC operating range | ℃ | 0 | 50 | |
Operating voltage | VAC | 100 | 220 | 240 |
Operating temperature | ℃ | 0 | 55 | |
Storage temperature | ℃ | -20 | 65 | |
Dimensions | mm | 290(L)×108(W)×68(H)mm |
Technical indicators:
1. Output power is optional;
2. Peak operating wavelength can be specified;
3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;
4. Max. power consumption refers to the overall power consumption under extreme working conditions.
Spectral diagram
Wavelength temperature tuning curve

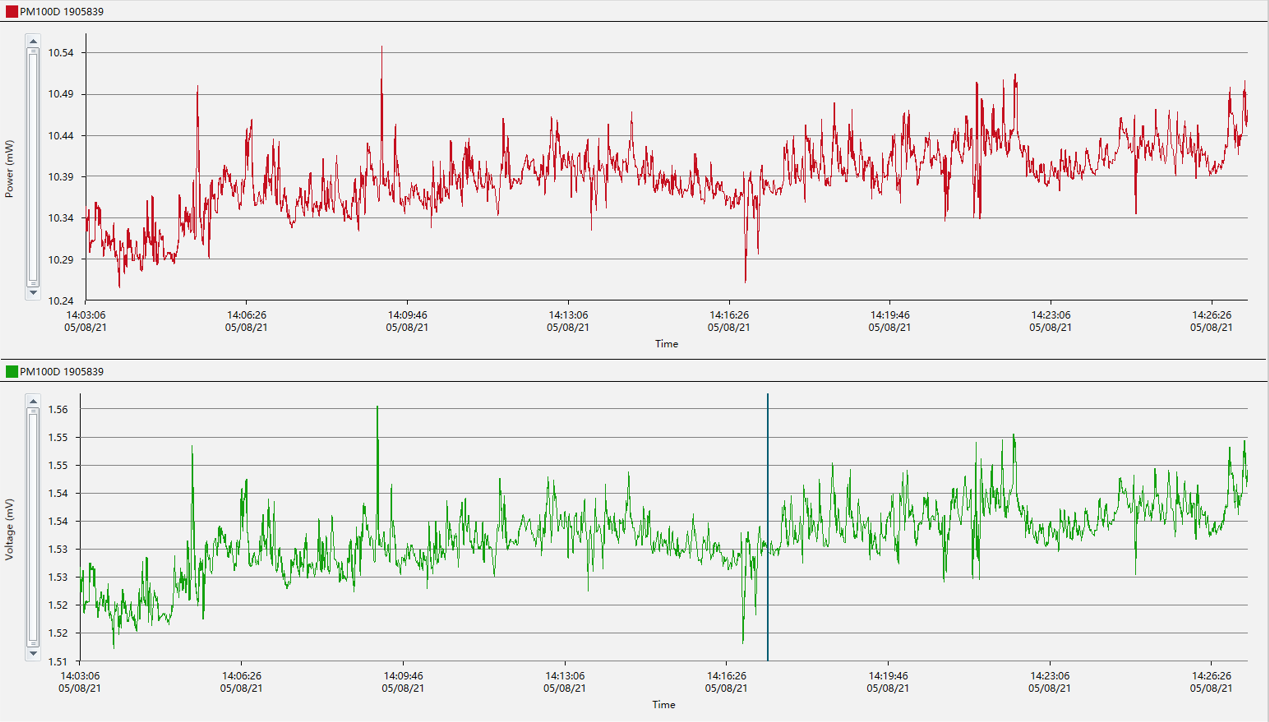

Power stability

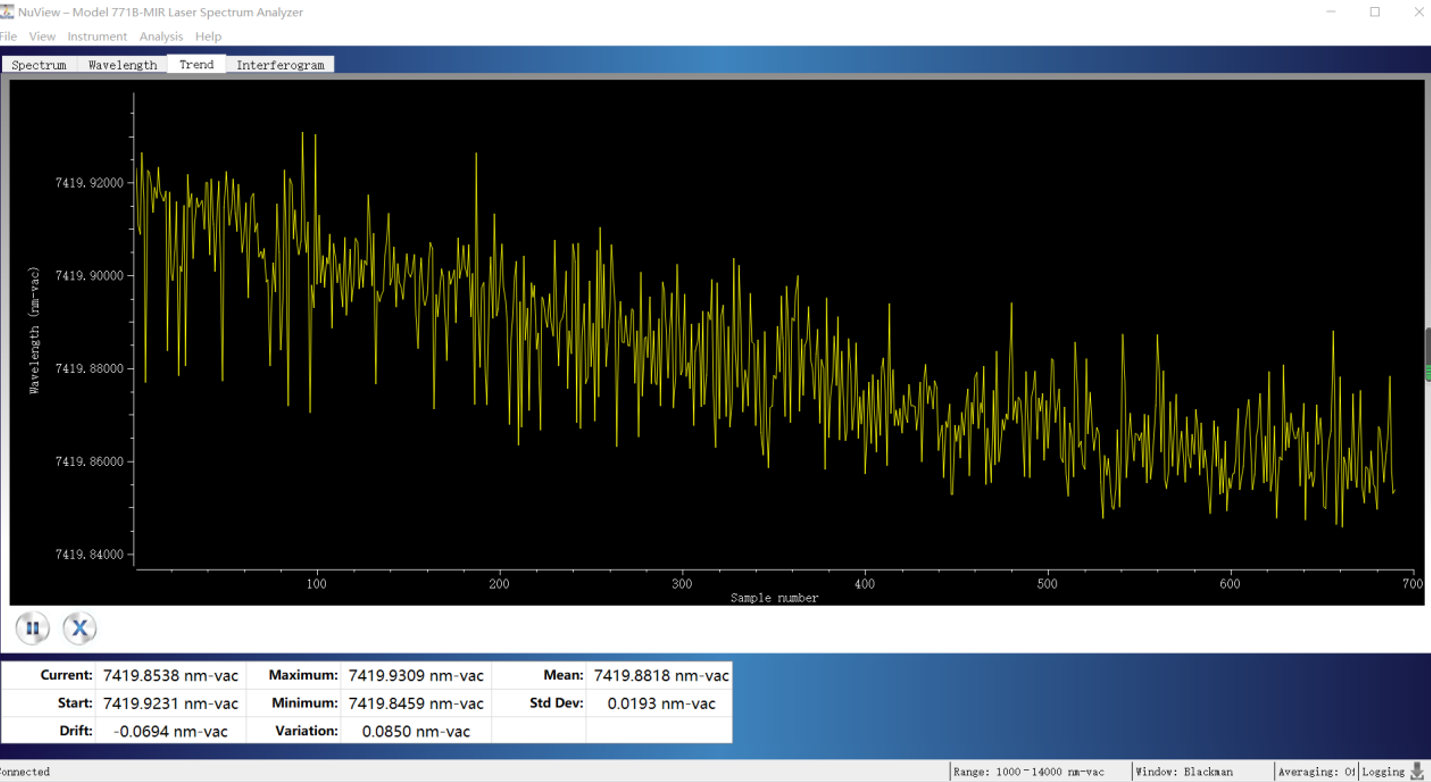

Wavelength stability
QCL laser characteristic curve (taking 7.4um typical wavelength as an example)

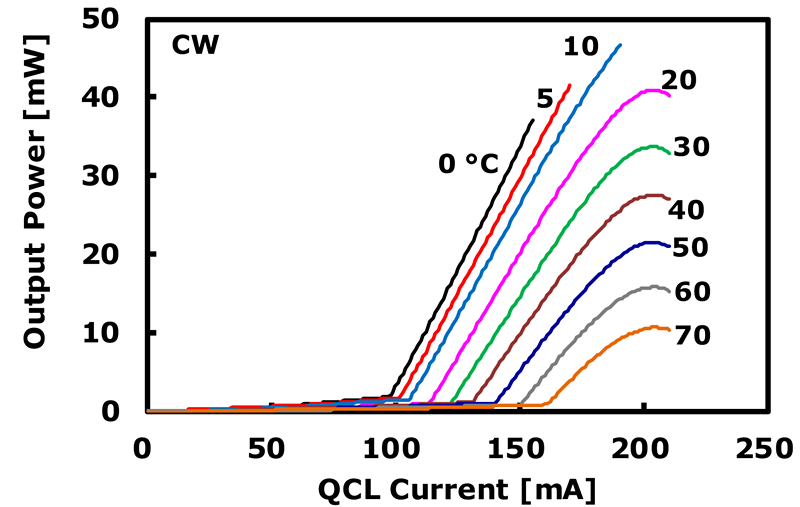

Output power characteristic curve

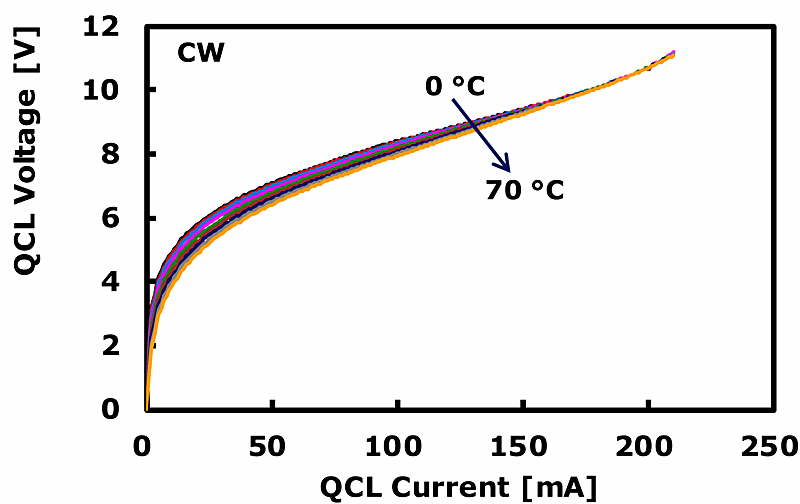

Voltage characteristic curve

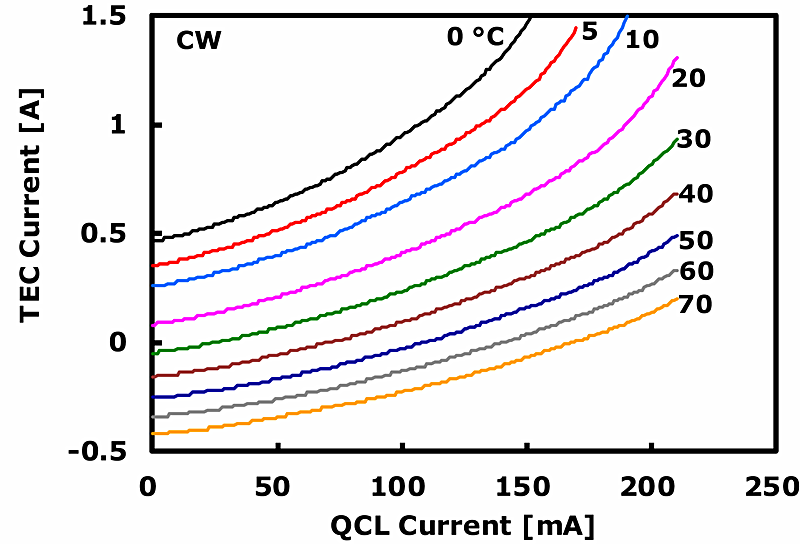

TEC current characteristic curve

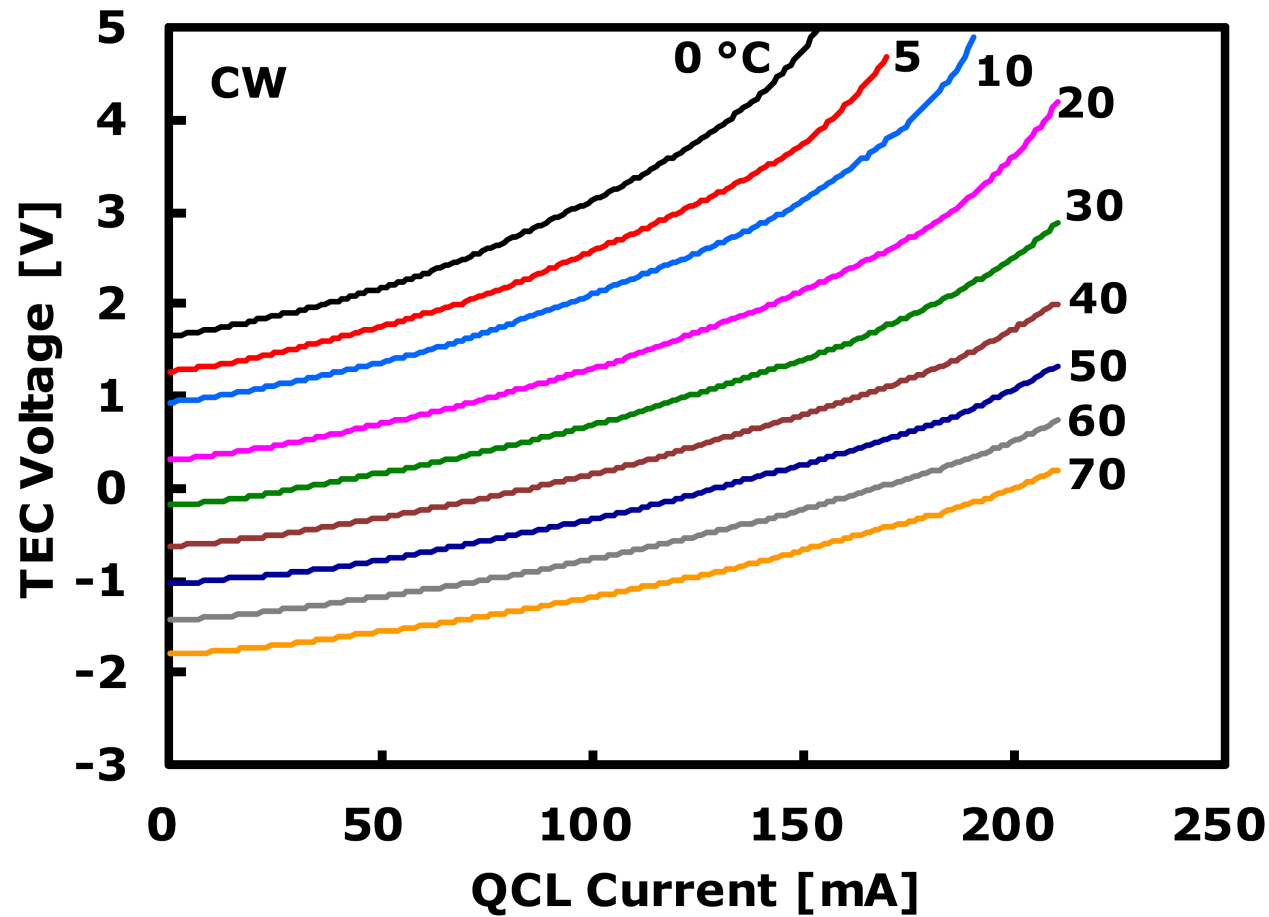

TEC Voltage characteristic curve

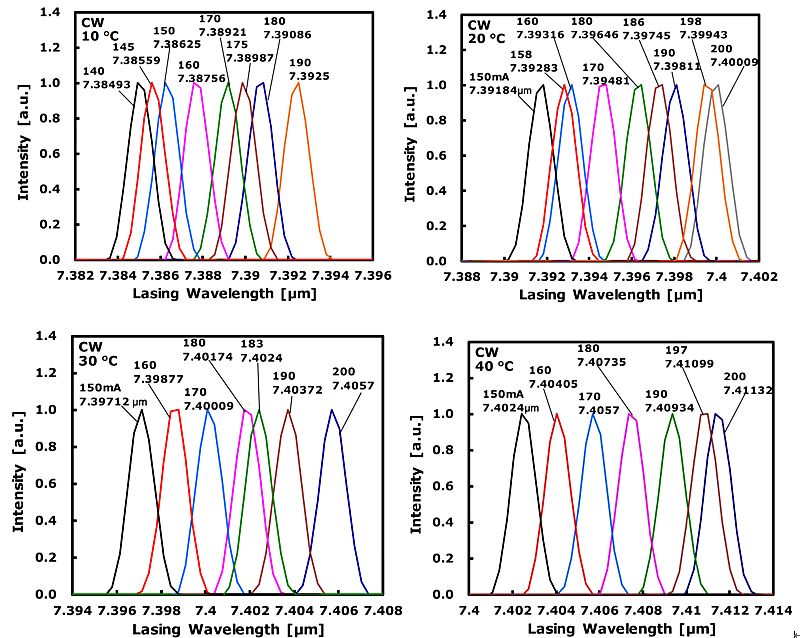

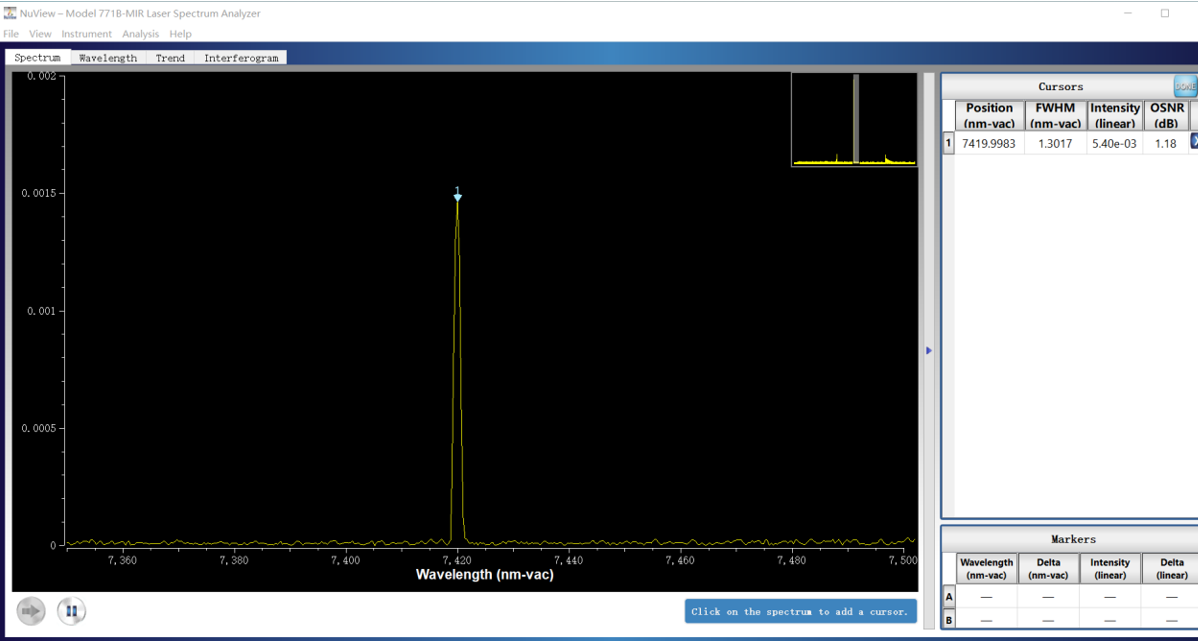

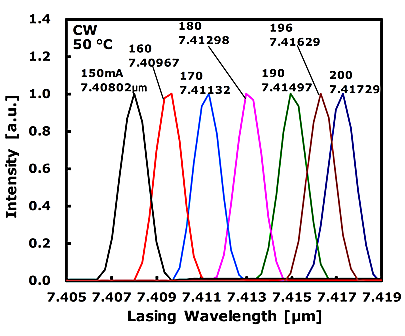

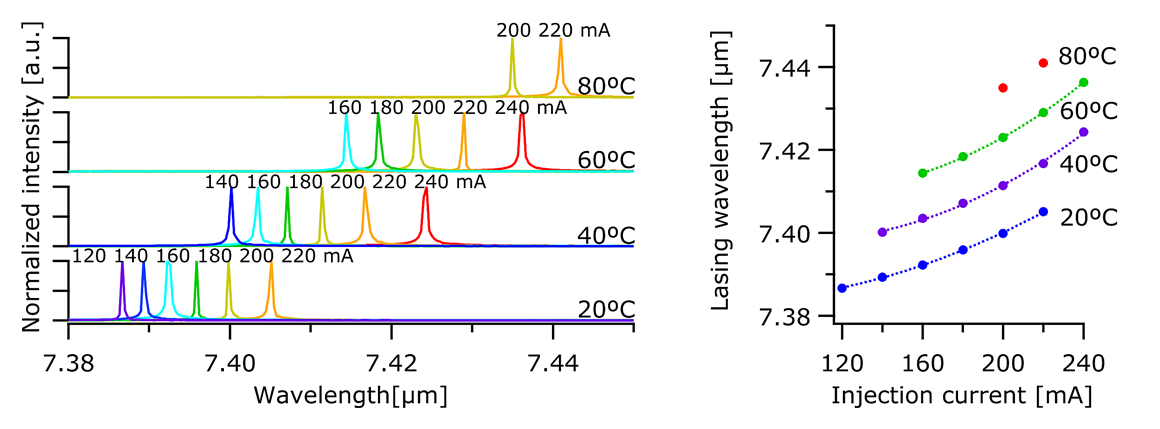

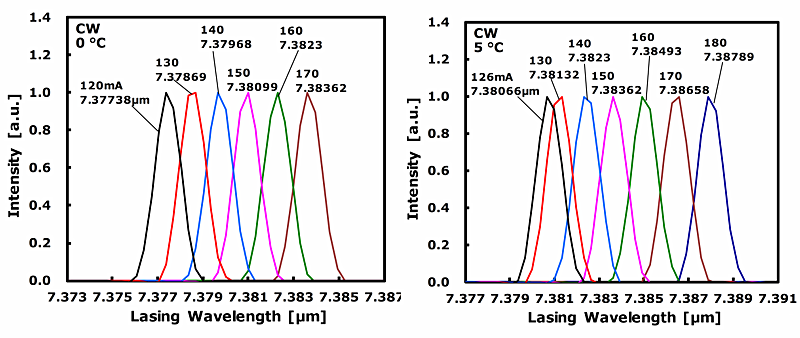

Laser spectrum (continuous)

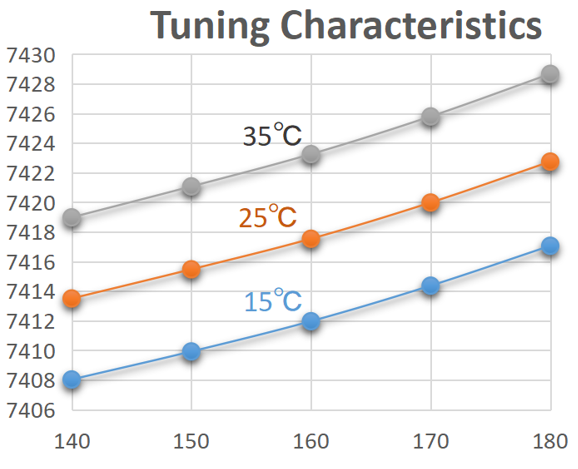

Wavelength Temperature Current Tuning Curve

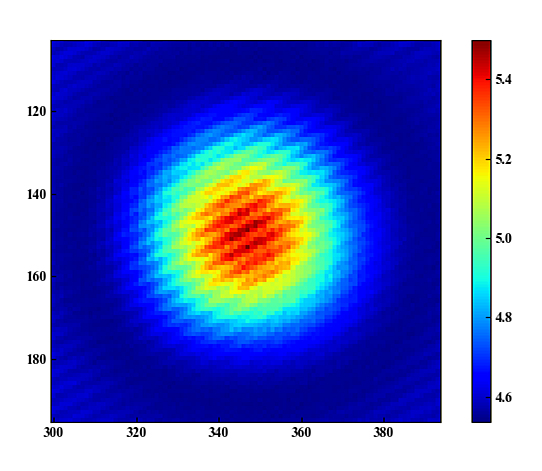

Quantum cascade laser output spot

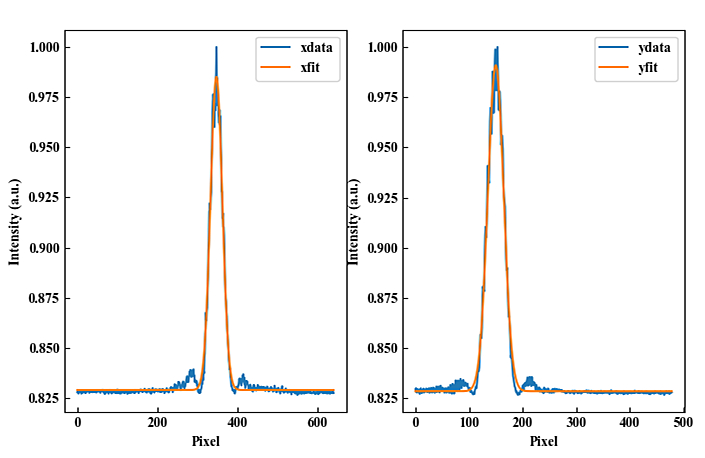

Test camera pixel size = 5 μm, Gaussian fitting spot diameter is 320 μm

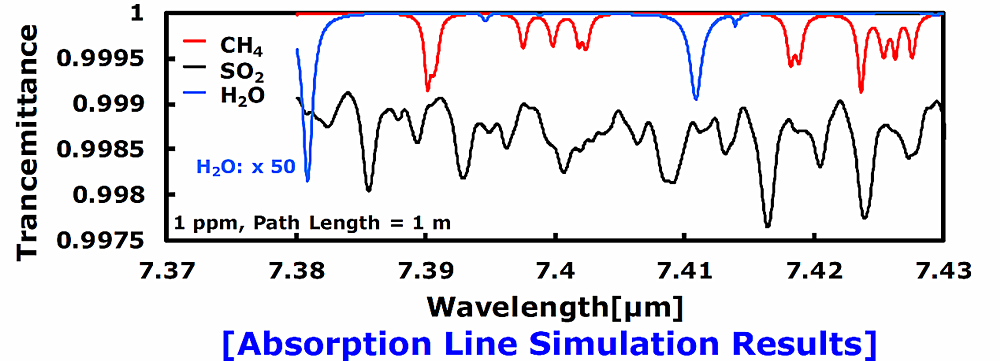

Simulation results of absorption spectrum near 7.4um

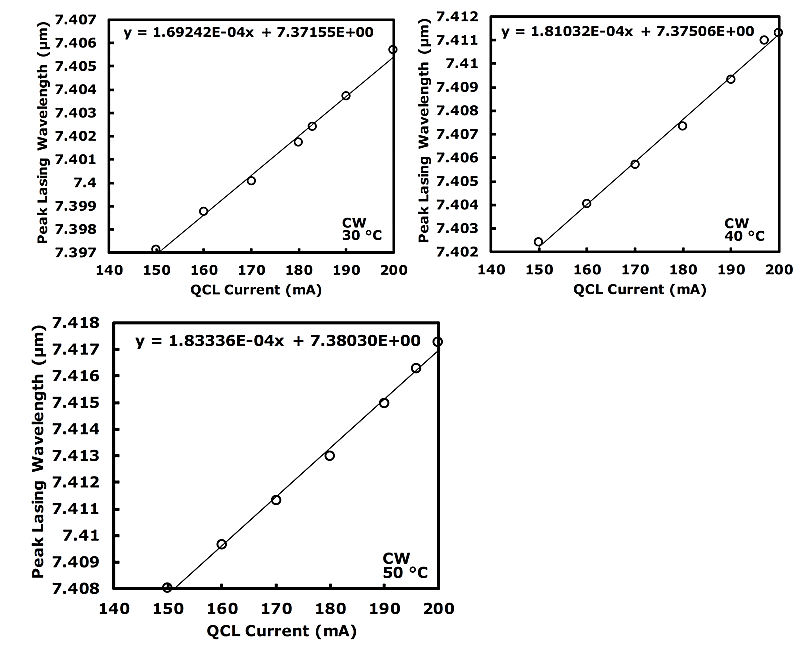

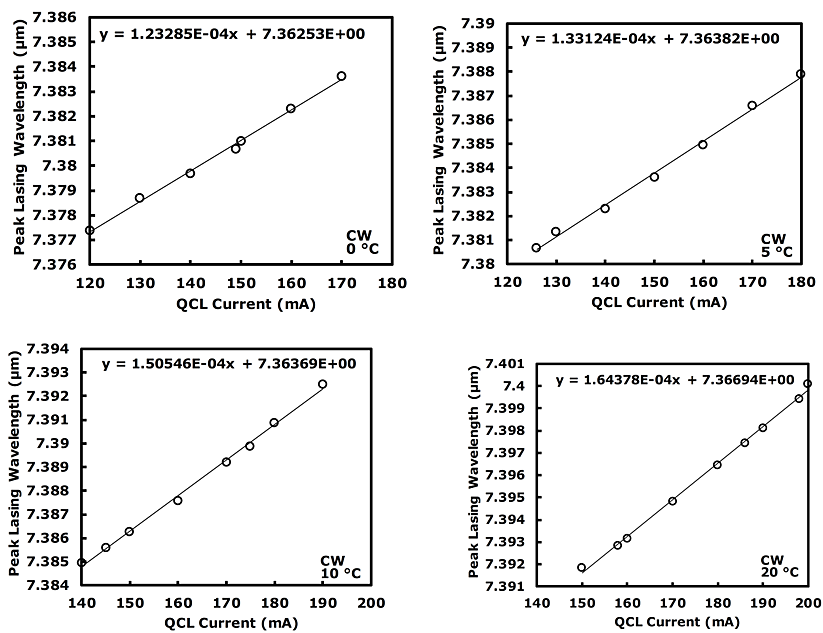

Peak wavelength vs. current curve

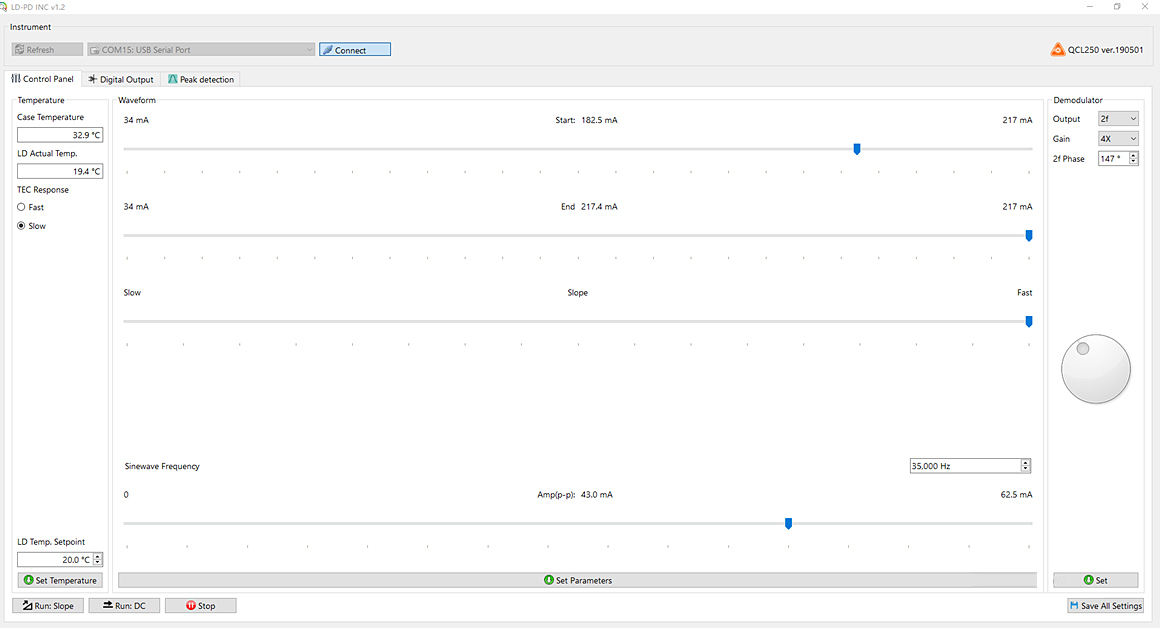

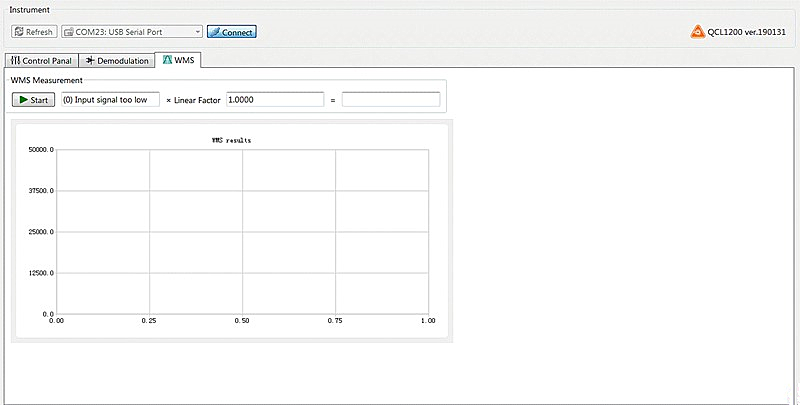

Control software
