638nm Single Wavelength Zoom Laser Collimating Lens 50x

When the zoom magnification requirement varies significantly, the design uses a curved groove form, with multiple lenses linked together to achieve continuous changes while maintaining beam quality. By using different fiber inputs, good zoom effects can be achieved. The output beam is uniform with clear boundaries. This design is mainly applied in laser dazzling and optical tracking systems.

Product features：Standard fiber optic interface input, collimated spatial beam output、 Three main wavelength options: 525nm, 450nm, 638nm、 Achieves diffraction-limited performance when used with compatible connectors、 Metal oxide housing、 Reserved motor installation interface for automatic focusing

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-W638-50-1000-62.5/125-FP

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

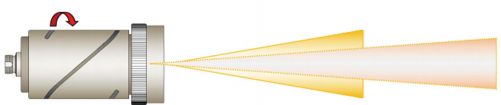

Diagram

Parameter

Single-Wavelength Zoom Laser Collimating Lens
Zoom Magnification	Usable Working Distance	Divergence Angle Range	Max Power	Input Fiber	Size	Connector Type	Transmission Rate
20x	30-600m	0.05~1.0°	30w	62.5/125 200/220 400/440	Φ50×150mm	FC/PC	85%
50x	20~1000m	0.05~2.5°	50w	62.5/125 200/220 400/440	Φ50×220mm	FC/PC	85%
Three-Wavelength Zoom Laser Collimating Lens
Zoom Magnification	Usable Working Distance	Divergence Angle Range	Max Power	Input Fiber MFD	Size	Connector Type	Transmission Rate
50x	20-1000m	0.05~2.5°	20w	10.4um	Φ55×260mm	FC/PC	80%
