Narrow Linewidth Laser Linewidth Measurement SystemLinewidth Analyzer 1300-1700nm (Linewidth 2-5000KHz Input 0.2-20mW)

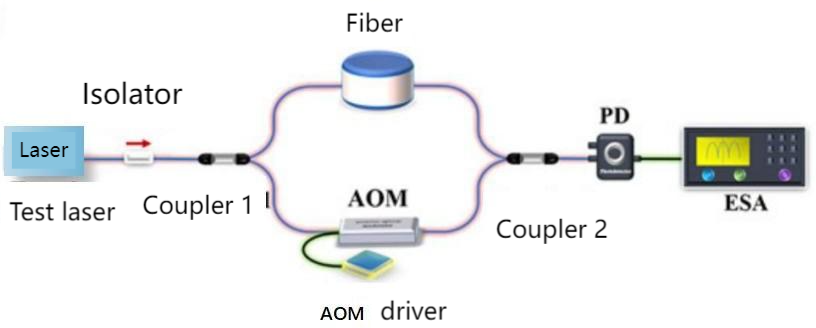

The Laser Linewidth Measurement System is a simple and accurate laser diode linewidth measurement system. The evaluation of laser linewidth is critical to the development, manufacturing and quality control of optical communication lasers. Combined with Keysight's signal analyzers and dedicated test sets, you can easily measure linewidth. Idealphotonics' narrow linewidth laser linewidth tester uses the delayed self-heterodyne beat frequency method to test the laser linewidth. When used with a 50km delayed optical fiber, it can measure lasers with a linewidth of 2kHz without the need to build a complex system.

Product features：Laser linewidth measurement down to 2kHz、 Wide wavelength range 1300-1700nm、 The interferometer and the optical receiver are in one box

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

LLMS001

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General parameters

Parameter	Unit	Min.	Typ.	Max.
Measurement Band	nm	1310		1700
Min. Measurable Line Width	kHz	2		5000
Optical input Power (can be increased to 500mW using adjustable attenuator)	dBm	-20		+10
Frequency Shift of the Interferometer (Electrical Signal Carrier Frequency)	MHz		150
Optical Delay Length	Km		50
Supply Voltage	V		220
Fiber Optic Interface	NA	FC/APC
RF Radio Frequency Interface	NA	BNC

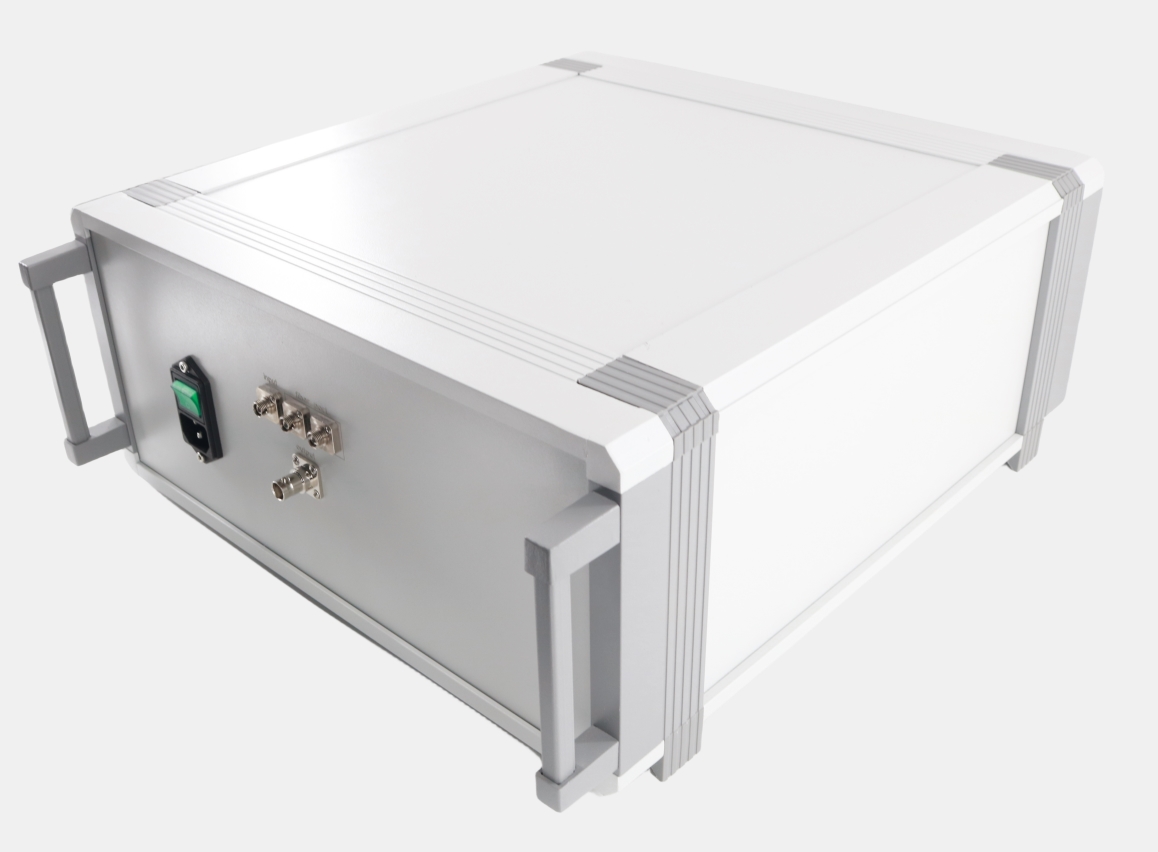

Laser line width measurement device
