1550nm tunable VCSEL vertical cavity surface emitting laser (with TEC)

1550nm VCSEL is a vertically emitting MOVPE grown GaAsP/AlGaAs single mode diode laser. Wavelength tuning can be achieved by laser current and temperature tuning. Built-in TEC and PD

Product features：TO-56 7-pin small package outline、 Aspheric collimating lens、 Integrated TEC (temperature stabilized)、 CW optical output power: 1.6mW typical (@20°C TEC temperature)、 Single-mode VCSEL、 Center wavelength can be in several bands through C and L bands.、 Wide tuning range: >8nm、 High modulation bandwidth (10 Gbps)、 Fast wavelength tuning (about 100 kHz)

Application area：Optical communications、 Scanning light sources、 Optical gas sensing、 LiDAR

Unit Price

Please contact customer service for a discounted quote.

Part Number

PL-VCSEL-1550-1-A82-TO56

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

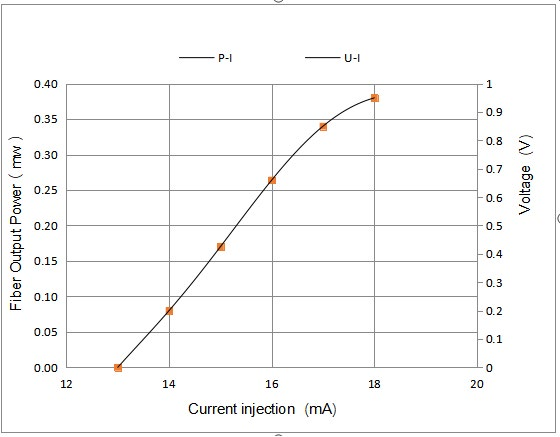

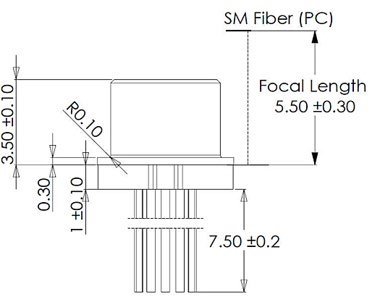

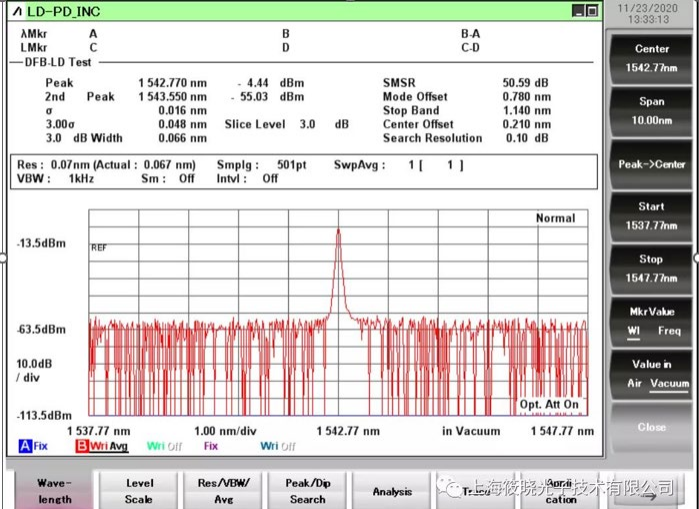

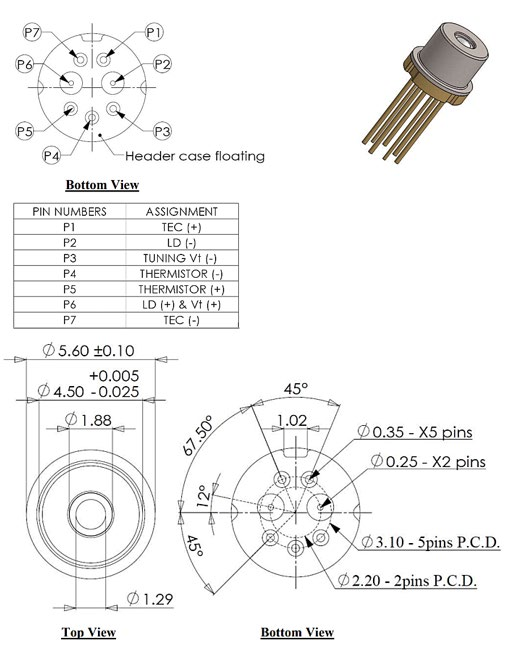

Dimensional Drawing

Technical parameters:

Conditions: T_OP = 20°C, I_OP = 2.0 mA unless otherwise specified (P = chip backside temperature, controlled by TEC)

Parameter	Symbol	Index			Unit
		Min.	Typ.	Max
Optical output peak power @ 25º C	P	1.0	1.6		mW
Operating current	I_op	0	18	25	mA
Operating temperature	T_op	-40	25	85	°C
Threshold current	I_th		8	12	mA
Slope efficiency (CW, Tc=25°C)	SE	0.14	0.18		mW/mA
Laser drive voltage	V_cc	0	1.5	2.5	V
Resistance	R_s		50		Ω
Center wavelength (please specify center wavelength)	Δλ	1525		1575	nm

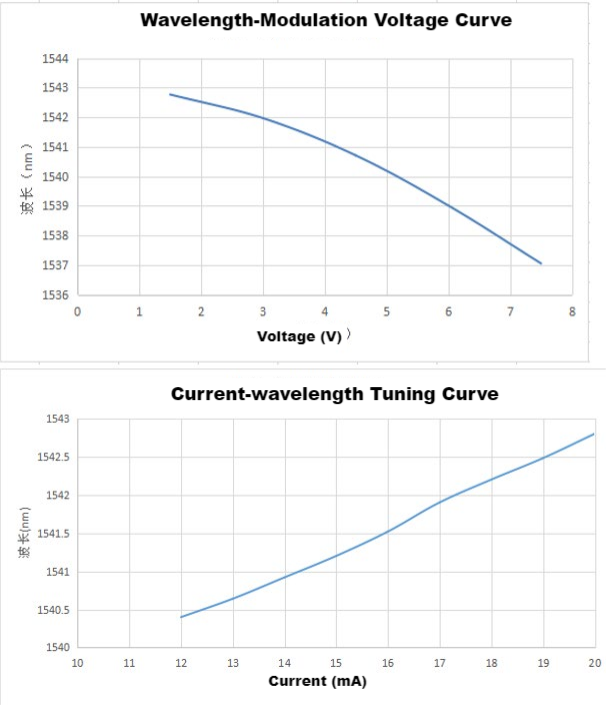

Guaranteed tuning range (applying positive voltage will reduce peak wavelength)	λ	8	10		nm
Maximum tuning response rate	f_max	100	200	-	kHz
Side mode suppression ratio (SMSR)	SMSR	30	40		dB
Linewidth (-3 dB FWHM), CW Ibias=Iop	σ			300	MHz
Relative intensity noise	RIN			-128	dB/Hz
Tuning voltage	V_tune	0	Test Sheet	Test Sheet	V
Tuning current	I_tune	0	-	100	μA
TEC voltage	V_TEC		0.35	1.5	V
TEC current	I_TEC		0.05	0.6	A

Absolute Maximum Ratings:

Parameters	Symbol	Index	Unit
Storage temperature	T_stg	-20 to +85	°C
Operating temperature	T_c	-5 to +70	°C
Forward current	I_LD	25	mA
Reverse voltage	V_LD	3	V
Soldering temperature	T_sld	350 (10 sec.)	°C
