MEMS 1x32 Optical Switch (Module Package)
MEMS 1x32 Optical Switch (Module Package)
Idealphotonics' MEMS 1x32 optical switch is an optical switch based on MEMS (micro-electromechanical system) technology that allows channel selection between a single input light and 32 output lights. It has the characteristics of small size, long life and stable reliability, and is widely used in optical network fields such as OADM and OXC.
Product features:Small size、 High repeatability and good stability、 I 2 C parallel or RS232 serial control interface、 Complies with GR-1073, GR-1209 and GR-122 standards
Application area:Optical network monitoring、 Data Center、 Fiber Optic Sensing
Unit Price
Please contact customer service for a discounted quote.
Part Number
MEMS-1X32-SA
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters

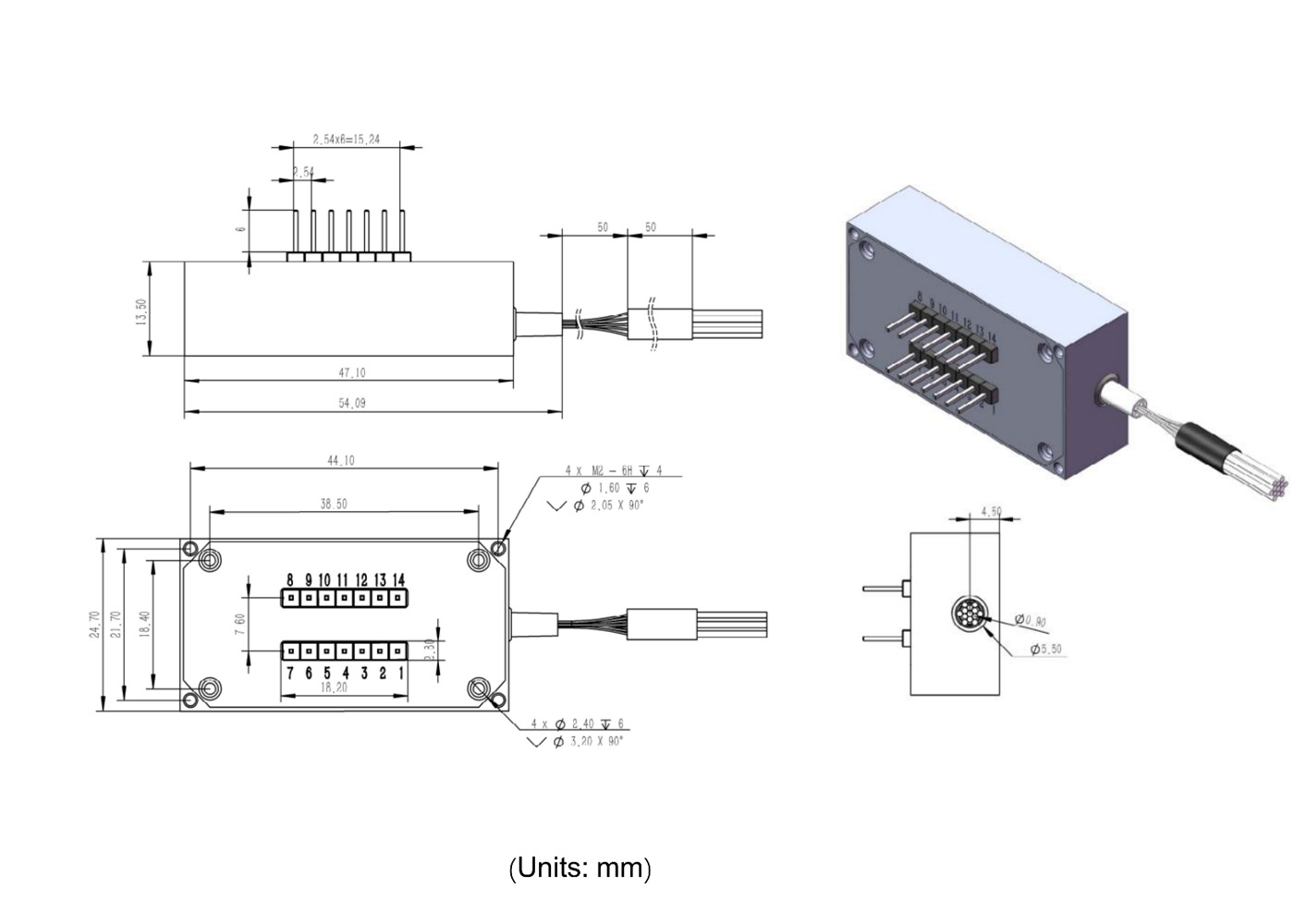

Dimensional Drawing

Main Specifications

Parameter

Unit

SM

Number of channels

CH

32

Wavelength

nm

532±20

Insertion Loss(Max) IL

dB

≤3.5 (including head)

Return loss RL

dB

≥35

Repeatability

dB

≤0.05

Crosstalk

dB

≥35

Polarization Dependent Loss PDL

dB

≤0.15

Wavelength Dependent Loss WDL

dB

≤0.3@CWL±30nm, 23℃

Temperature Dependent Loss TDL

dB

≤0.3

Operating temperature

-5~70

Storage temperature

-40~85

Switching response time

ms

≤20

Life

Cycle

≥1×10 9

Driving voltage

V

5~12V

Fiber Type

--

G657A1, G657A2

Casing Type

--

0.9mm

Fiber length

--

1m±0.05m (excluding head)

Connector Type

--

FC/APC

Port Control Type

TTL (parallel and serial ports)

Note:

1. The above test loss (IL) is based on the test results at 23°C.

2. Repeatability data is based on 100 cycle repeated test results.
