1250-1650nm ultra-broadband SLD light source 10mW

The ultra-wideband SLD light source uses multiple bands of super-radiant light sources to combine and splice the spectrum, achieving single-mode fiber output covering an ultra-wideband spectrum of 1250-1650nm wavelength, while having a high optical power spectrum density. It is suitable for passive device testing, fiber optic sensing and other applications.

Product features：Ultra-wide spectrum、 Low spectral ripple、 Power stability

Application area：Fiber optic sensing、 Medical imaging、 Fiber optic device testing

Unit Price

Please contact customer service for a discounted quote.

Part Number

SLD-2565-25-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes
Spectral range	nm	1250~1650
Total output optical power	mW	>10	Not adjustable
Spectral power density	dBm/nm	≥-25
Spectral ripple	dB	<0.2
Short-term stability (15 minutes)	dB	≤ ±0.02	Equivalence≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05	Equivalence≤±1.2%
Degree of polarization DOP	dB	≤ 0.2
Pigtail type	-	SMF-28Fiber
Pigtail connector type	-	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240VAC, <30W	5V DC, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

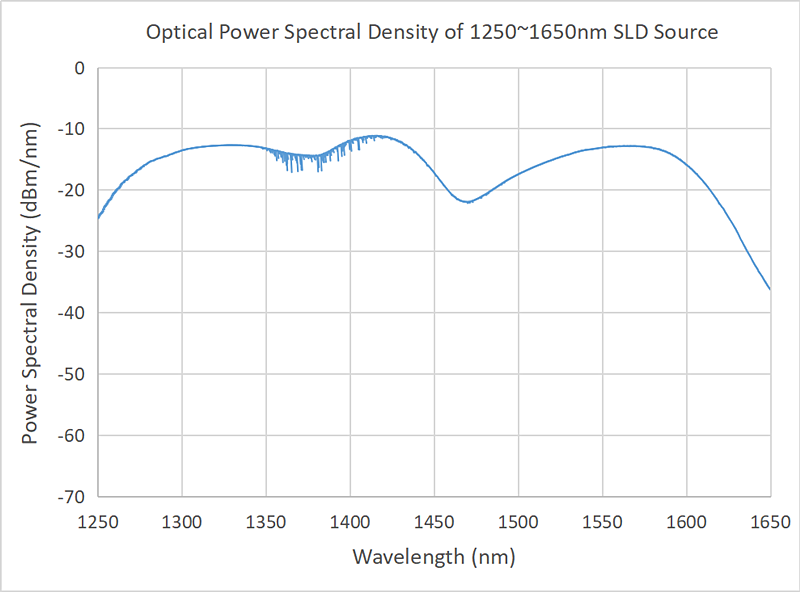

*1350~1400nm is the OH- absorption peak

Ordering Information

Ordering information / PN#

SLD

Spectrum range

Power spectral density (dBm/nm)

Package method

2565=1250~1650nm

25=-25dBm/nm

B=Benchtop

M=Module
