1570nm wavelength single mode fiber coupled laser 10 dBm

The 1570nm single-wavelength laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, stable output power and spectrum. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers, and can be provided in desktop or modular packages.

Product features：1~10W multiple powers、 Single-mode fiber output、 Multiple spectrum options

Application area：Thulium-doped fiber laser、 Fiber laser、 Fiber sensor

Unit Price

Please contact customer service for a discounted quote.

Part Number

FL-1570-10-SM-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes

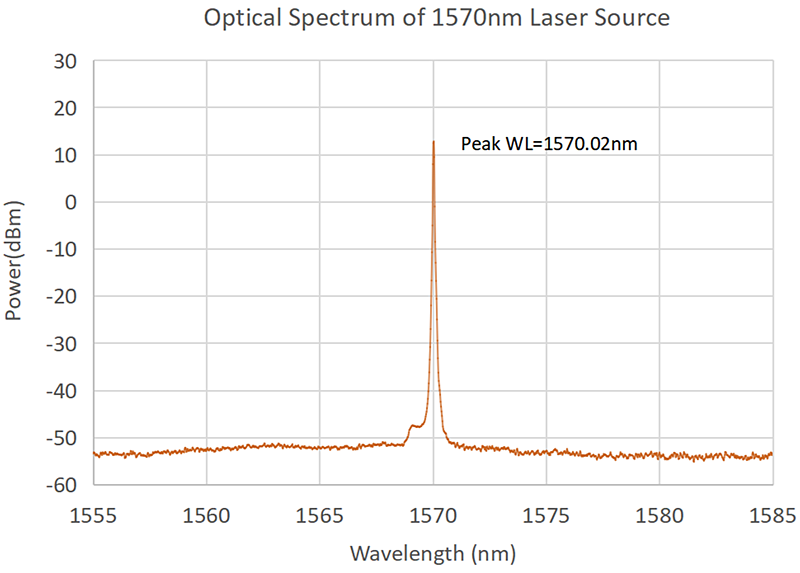

Operating wavelength	nm	1570±1
Spectral linewidth	nm	< 0.1
Side mode suppression ratio	dB	>50
Operating mode	-	CW	Continuous light
Output power	dBm	10/20/30/33/37/40
Short-term stability (15 minutes)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05	Equivalent≤±1.2%
Pigtail type	-	SMF-28Fiber
Pigtail connector type	-	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240V AC,<150W	5V DC,<60W
Dimensions	260(W)×320(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Ordering information / PN#
FL	Operating wavelength(nm)	Output power(dBm)	Output pigtail type	Package method
	1570	10/20/30/33/37/40	SM= SMF-28 PM=PM1550	B=Benchtop M=Modeule
				*33~40dBmJust provide benchtop
