High-speed photodetector InGaAs-1.5/3.6um-1G/250ps-S

Monitors pulse energy and/or pulse shape of lasers with GHz-level speed, spanning visible and near-infrared wavelengths, and extremely low noise equivalent power (NEP). BNC output connector.

Product features：Ultra-fast photodetector commonly used for visible and near-mid infrared light measurement 、Bias-type detector, with extremely low noise, ultra-fast response, and no gain 、 Suitable for intensity-time waveform measurement of high-speed laser pulses or light emission events 、 Excellent performance, high cost-performance ratio, and full technical support 、Custom services available for non-standard requirements

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

InGaAs-1.5/3.6um-1G/250ps-S

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Design Features

Monitors the output of Q-switched lasers.

Monitors the output of mode-locked lasers.

Specifications

Model	Sensitivity Range	Active Area	Rise Time (RT)	Bandwidth (BW)
Si-0.4/0.9um-10G/40ps-S	400~900nm	Φ50um	40ps	10GHz
Si-0.4/0.9um-2.5G/130ps-S	400~900nm	Φ70um	130ps	2.5GHz
InGaAs-0.8/1.7um-2G/140ps-S	800~1700nm	Φ 120um	140ps	2Hz
InGaAs-0.8/1.7um-3G/120ps-S		Φ 100um	120ps	3GHz
InGaAs-0.8/1.7um-6G/60ps-S		Φ50um	60ps	6GHz
InGaAs-0.8/1.7um-20G/17ps-S		Φ45um	17ps	20GHz
InGaAs-0.4/1.7um-1G/250ps-S	400~1700nm	Φ 100um	250ps	1GHz
InGaAs-0.8/2.4um-1G/250ps-S	800~2400nm	Φ 100um	250ps	1GHz
InGaAs-1.5/3.6um-1G/250ps-S	1500~3600nm	Φ 100um	250ps	1GHz

Note:-S: Flat window; -L: Coupling lens; -FC: Fiber optic seat with FC interface;

-SMFC: Single-mode fiber with FC connector. InGaAs-0.8/2.4um-1G/250ps-S

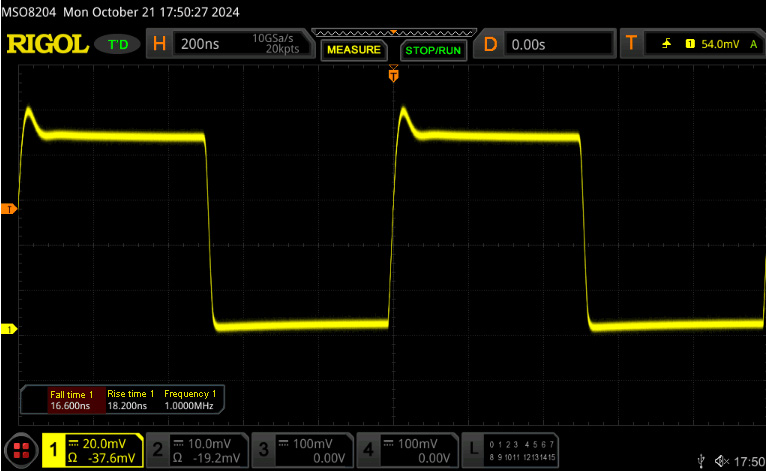

DetectorTest light source: DFB1550, Power: 4mW.

Parameter	Details
Bias Voltage	A23 dry battery, 12V
Operating Impedance	50Ω
Photodetector Features	Flat lens / Coupling lens / FC fiber seat / FC SM fiber connector
Operating / Storage Temperature	0~40℃
Detector Net Weight	0.13kg
Dimensions	Φ 36mm X 53.5mm
Power Supply Battery	A23,12VDC,40mAh
Signal Interface	SMA(DC Coupled)
Mounting Interface	M4 X 1

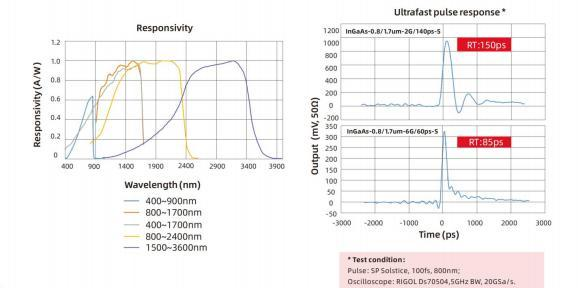

Response Curve
