800-2600nm High-Speed InGaAs PIN Photodiode with 1.5mm TO39 Sealed Dome Lens

The MTPD260K8-150, with a sensitivity wavelength range of 800nm to 2600nm, is a high-sensitivity and highly reliable product series, making it ideal for optical communication equipment. Customers can customize different packaging types.

Product features：Fast response speed、 TO-39 sealed dome lens packaging、 1.5mm Φ effective area / high sensitivity、 Spectral range: 800nm - 2600nm

Application area：High-speed optical communication、 Industrial control、 Gas/water analysis 、 Laser ranging、 Medical

Unit Price

Please contact customer service for a discounted quote.

Part Number

MTPD2601K8-150

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Absolute Maximum Rated Parameters (Ta=25ºC):

Parameter	Symbol	Main Value	Unit
Effective Photosensitive Area Diameter	Ф	1.5	mm
Operating Temperature Range	Topr	40 to +85	ºC
Storage Temperature Range	Tstg	40 to +125	ºC

Photonic Parameters (Ta = 25ºC):

Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Breakdown Voltage	V_R	I_R=100uA	--	--	1	V
Sensitivity Range	λ	V_R=0V	800	--	2600	nm
Dark Current	I_D	V_R=0V	--	150	--	nA
Dark Current	I_D	V_R=1V	--	350	--	uA
Responsivity	R	λ=2400nm	--	1.24	--	A/W
Shunt Resistance	R_S	V_R=10mV	--	1.25	--	kOhm
Quantum Efficiency	QE	λ=1840nm	--	72	--	%
Capacitance	C	V_R =0V	--	1500	--	pF
Capacitance	C	V_R=1V	--	100	--	pF

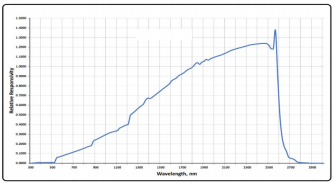

Spectral Response Curve:

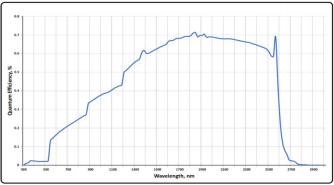

Quantum Efficiency Curve:
