900-1700nm InGaAs Geiger-mode avalanche photodiode with built-in TEC cooling

InGaAs avalanche photodiode (APD) is a dedicated device for short-wave near-infrared single photon detection. It can meet the technical requirements of quantum communication, weak light detection and other fields for high-efficiency and low-noise single photon detection, and realize single photon detection of 0.9 ~ 1.7μm wavelength.

Product features：Spectral response range 0.9~1.7μm、 High detection efficiency, low dark count rate、 6 pin TO8

Application area：Weak light detection、 Quantum secure communication、 Biomedical

Unit Price

Please contact customer service for a discounted quote.

Part Number

IGA-APD-GM104-R-TEC

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Linear mode parameters

PN#				IGA-APD-GM104-TEC
Parameter	Symbol	Unit	Test conditions	Min.	Typical	Max.
Reverse breakdown voltage	V_BR	V	22℃±3℃ , I_D=10μA	60	80	90
Responsivity	R_e	A/W	22℃±3℃, λ =1550nm ，M =1	0.8	0.85
Dark current	I_D	nA	22℃±3℃, M =10		0.1	0.3
Capacitance	C	pF	22℃±3℃ , M =10，f=1MHz			0.25
Breakdown voltage temperature coefficient	η	V/K	-40℃ ~80℃, I_D =10μA			0.15

Geiger mode parameters

Parameter	Unit	Test conditions	Min.	Typical	Max.
Single photon detection efficiency PDE	%	-45℃, λ =1550nm, 0.1ph/pulse, Poisson distribution single photon source	20	-
Dark count rate DCR	kHz	-45℃, 1ns gate width, 2MHz gated repetition rate, 1MHz optical repetition rate, PDE=20%	-	-	20*
After pulse probability APP		-45℃, 1ns gate width, 2MHz gated repetition rate, 1MHz optical repetition rate, PDE=20%	-	-	1× 10^-3
Time jitter T_j	ps	-45℃, 1ns gate width, 2MHz gated repetition rate, PDE=20%	-	-	100

* Different grades and specifications are available

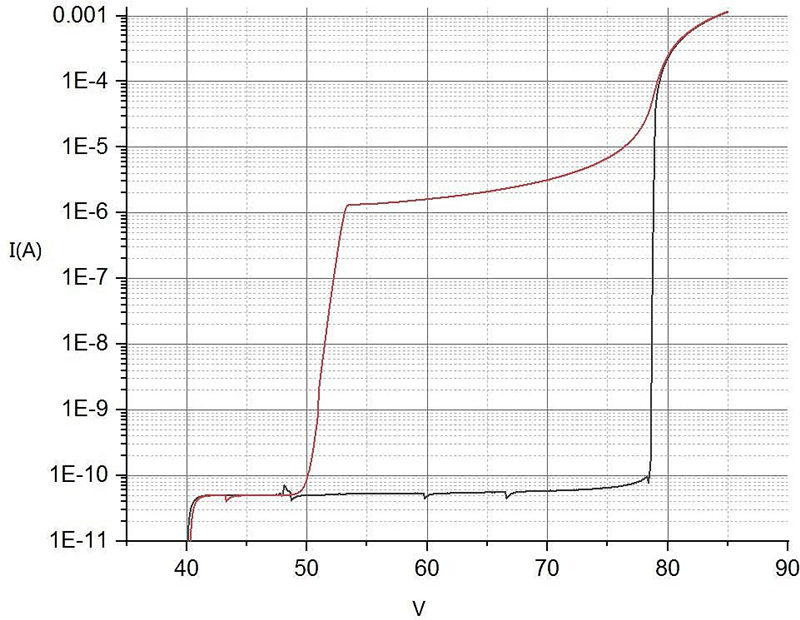

Room temperature IV curve

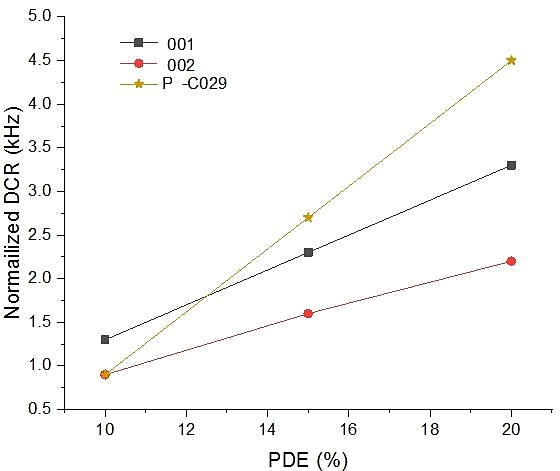

DCR-PDE(-45℃, fg=2MHz)

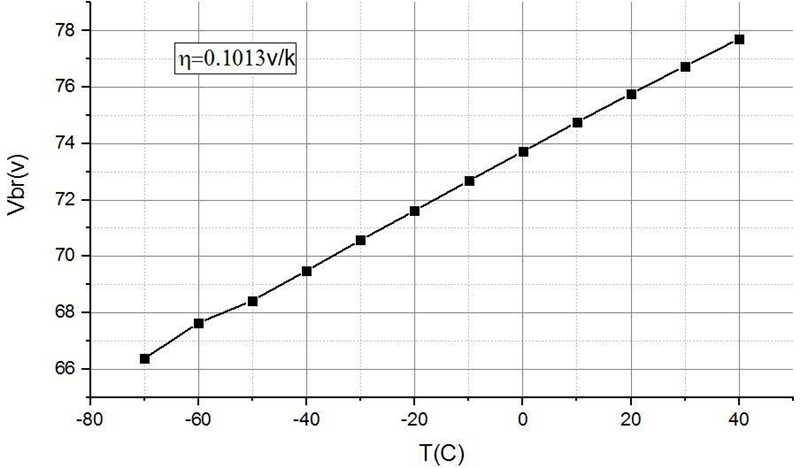

Temperature coefficien

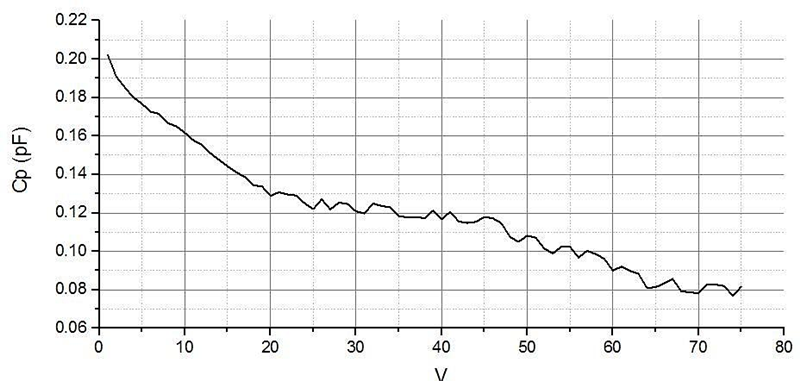

Capacitor voltage
