Pulsed EDFA Erbium Doped Fiber Amplifier Module 1550nm 20KHz

Pulsed EDFA Erbium-doped Fiber Amplifier Module 1550nm, repetition frequency; 20KHz, pulse width 200ns.

Product features：

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

PL-EDFA-C-B-50-1

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Dimensional Drawing

Main Parameters:

Parameters	Unit	Min	Typ	Max	Note
Wavelength range	nm		1550±0.5
Pulse width			200ns
Repetition frequency			20KHz
Input peak power	mW		1
Input average power	uW		4		@1mW×200ns×20kHz
Output peak power	W		> 100		@200ns,20kHz The average power is about 100mW
Noise figure	dB			5.5
Polarization-dependent gain	dB			0.5
Polarization mode dispersion	ps			0.5
Input/output isolation	dB		35
Operating temperature range	°C	-5		+55
Operating humidity range	%			70
Pigtail connector type		FC/APC
Pigtail type		Single mode fiber SMF-28e
Power supply method	-	DC5v			National Standard
Dimensions	mm	125(W)×150(D)×20(H)
Communication interface and control method	-	RS232 DB9			Host computer software version V20220708
Working mode	-	ACC: Automatic pump current control			Maximum current 900mA

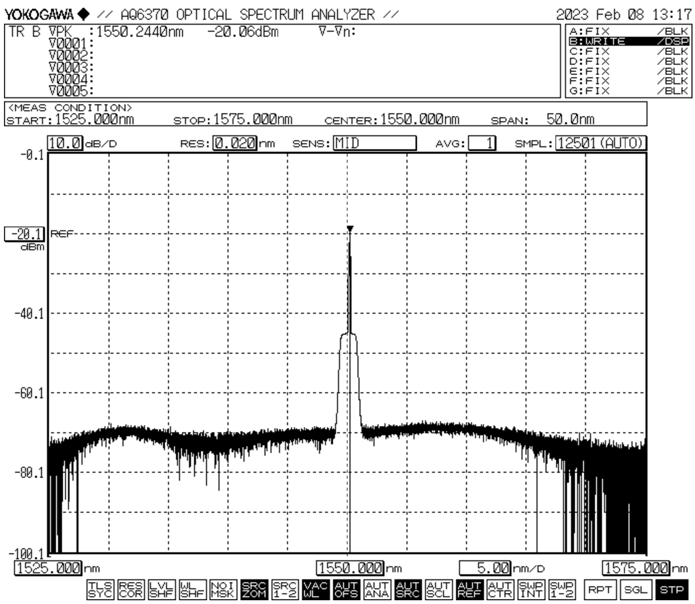

Input and output spectra:

(Test conditions: peak 1mW/20kHz/200ns input, average power 160mW output, drive current 900mA, ACC mode)

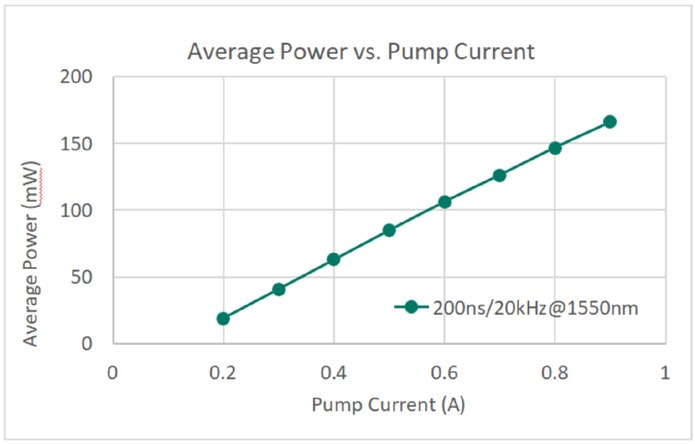

Output power-driving current curve (P-I):
