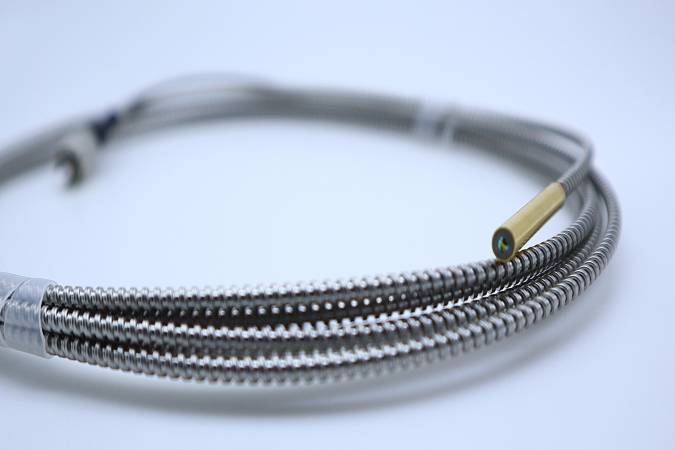

Single Mode High Temperature Fiber Collimator 1310nm (Fixed/Adjustable Working Distance)

The use of high temperature resistant optical fiber, high temperature resistant manufacturing process and materials can meet the application environment of working temperature of -40~220°C. The FC/APC high temperature resistant connectors specially used for high temperature devices can ensure the stability of optical fiber docking signals in high temperature environment. The products must undergo a 48-hour 220° high temperature reliability test before leaving the factory to ensure the reliability of the devices in long-term working in high temperature environment.

Product features：

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-1310-0.44-0.22-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameters

Working wavelength	Bandwidth	Working distance	Outlet spot	Beam divergence	Package diameter	Connertor	Exit loss	Return loss	Mode field diameter
1310nm	±20nm	100mm	0.44mm	0.22°	4.0mm	FC/APC	≤0.5dB	≥55dB	9.2 ±0.4um
1310nm	±20nm	300mm	0.81mm	0.13°	4.0mm	FC/APC	≤0.5dB	≥55dB
1310nm	±20nm	1000mm	1.27mm	0.10°	4.0mm	FC/APC	≤0.5dB	≥55dB
1550nm	±20nm	100mm	0.50mm	0.26°	4.0mm	FC/APC	≤0.5dB	≥55dB	10.4 ±0.5um
1550nm	±20nm	300mm	0.92mm	0.14°	4.0mm	FC/APC	≤0.5dB	≥55dB
1550nm	±20nm	1000mm	1.45mm	0.08°	4.0mm	FC/APC	≤0.5dB	≥55dB
1654nm	±20nm	100mm	0.52mm	0.26°	4.0mm	FC/APC	≤0.5dB	≥55dB
1654nm	±20nm	300mm	0.96mm	0.14°	4.0mm	FC/APC	≤0.5dB	≥55dB
1654nm	±20nm	1000mm	1.50mm	0.08°	4.0mm	FC/APC	≤0.5dB	≥55dB

Beam waist spot diameter: Take the Gaussian beam 1/e², and select the theoretical calculated value of single-mode optical fiber of each wavelength. Packaging materials and other optical fiber connector types can be customized
