2µm Fiber Coupler 2x2

The FC series fiber optic couplers are based on Agiltron's fusion double-cone taper technology and compact packaging structure. They feature excellent uniformity, low excess loss, and extremely low polarization sensitivity. This device is ideal for splitting or combining light with outstanding performance across a wide wavelength range.

Product features：Ultra-low loss 、 Low polarization sensitivity 、 High reliability and stability 、 Ultra-low cost 、 No impact on wavelength

Application area：Optical communication 、 Cable television 、 Local area networks (LAN) 、 Fiber optic instruments

Unit Price

Please contact customer service for a discounted quote.

Part Number

FC-A-2-50-2-1-1-1-1

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

FC Series	Parameter		Unit
Coupling Ratio	1/99 to 50/50
Bandwidth	±20		nm
Additional Loss	<0.1		dB
Insertion Loss	Output 1	Output 2
Split Ratio: 50/50	<3.6	<3.6	dB
Split Ratio: 40/60	<4.8	<2.8	dB
Split Ratio: 30/70	<6.1	<2.0	dB
Split Ratio: 20/80	<8.0	<1.3	dB
Split Ratio: 10/90	<12.0	<0.8	dB
Split Ratio: 5/95	<18.4	<0.5	dB
Split Ratio: 1/99	<22	<0.3	dB
Consistency (50:50)	<1		dB
Polarization Dependent Loss	<0.15		dB
Directionality	>55		dB
Return Loss	>55		dB
Maximum Operating Power	<5		W
Operating Temperature	-40~75		℃
Storage Temperature	-40~85		℃
Dimensions	250um: (φ)3x(L)60 900um: (φ)3x(L)77		mm

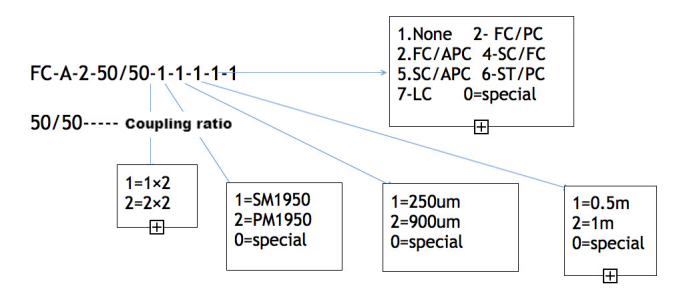

Ordering Info
