488nm single mode fiber optic patch cord

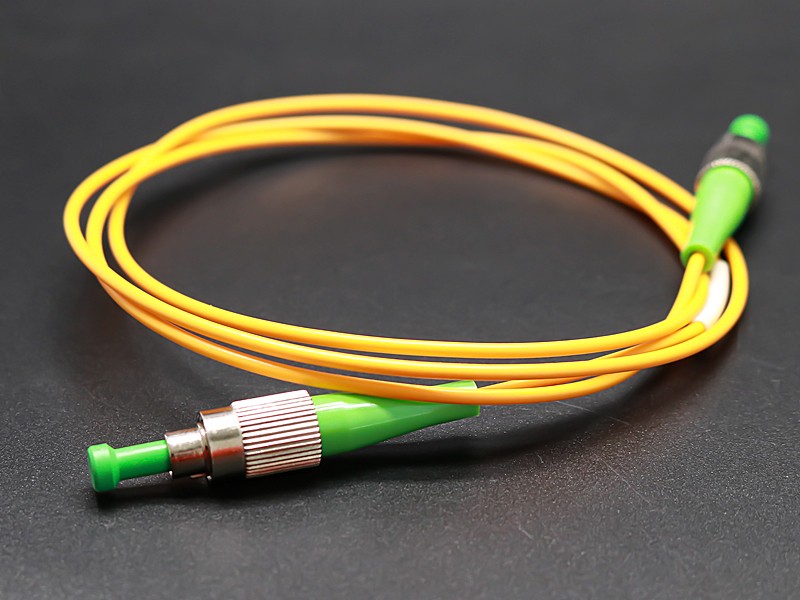

Fiber optic patch cords (also known as fiber optic connectors) are optical cables with connector plugs installed on both ends to achieve active connection of the optical path. Both ends of Idealphotonics' fiber optic patch cords are high-quality, narrow-pin ceramic FC/AFC connectors. Produced by our equipment, each patch cord is individually tested at the test wavelength listed in the specification label to ensure the extinction ratio and low back reflection (return loss) when connecting fibers. These patch cords are in stock and have high-quality polishing to ensure a typical return loss of more than 60 dB.

Product features：Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 Ø3 mm outer shield、 Custom patch cords available

Application area：Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor

Unit Price

Please contact customer service for a discounted quote.

Part Number

SM-488-2-1-FC/APC

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

PN#	SM-405-2-1-FC/APC	SM-633-2-1-FC/APC	SM-780-2-1-FC/APC	SM-1060-2-1-FC/APC	SM-1310/1550-2-1-FC/APC	SM-1950-2-1-FC/APC
Test wavelength	405 nm	630nm	780nm	1060nm	1550nm	1950nm
Operating wavelength	400 - 680nm	620 - 850nm	770 - 1100nm	970 - 1550nm	1270 - 1625nm	1750 - 2100nm
Cut-off wavelength	380 ± 20nm	570 ± 50nm	720 ± 50nm	920 ± 50nm	1200 ± 70nm	1620 ± 80nm
Fiber type	SM 405	SM630nm	HI780	HI1060	SMF - 28e	SM1950
Maximum insertion loss	1.5 dB	0.5 dB	0.5 dB	0.5dB	0.5dB	0.5dB
Mode field diameter	3.6±0.5um @405nm	4.0 ±0.4um @630nm	4.6±0.5@780nm	6.2±0.3 @1060 nm	10.4±0.5 @1550nm	8.6 um @1950 nm
Numberical aperture	0.12	0.13	0.14	0.14	0.14	0.14
Return loss	60 dB Typical
Fiber connertor	FC/APC-FC/APC（FC/FC-FC/FC，FC/APC-FC/FC）optional
Fiber length	1m (length can be customized)
Loose tube type	900um/2mm/3mm loose tube optional
Operating temperature	0 to 70 ℃
Storage temperature	-45 to 85 ℃

Taking 1550nm single-mode fiber jumper as an example, the experimental test data is as follows:

1. End face test


2. LI Testing

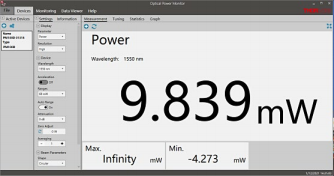

Laser power before access

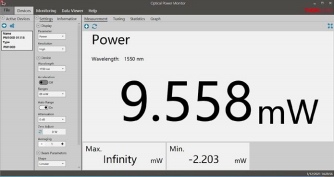

Power after access to fiber jumper

PN# and ordering

E.g. ：SM-633-2-1-FC/APC

SM: Single mode

633: 633nm

2: 2mmloose tube

1: 1m

FC/APC: FC/APC connector
