515nm Picosecond Pulsed Fiber Laser

The Y-Fiber series ultrafast laser uses high-performance rare earth optical fiber as the working medium, combined with full polarization-maintaining mode locking and frequency doubling technology to achieve stable output of picosecond pulse lasers in the 515/532nm band. It can be fully self-started and work stably for a long time. It has the characteristics of narrow laser pulses and high pulse peak optical power. It can be used for scientific research in the fields of fluorescence lifetime microscopy and nonlinear optics. * Customization of parameters such as pulse width, power, repetition rate, etc. is accepted.

Product features：Full polarization-preserving optical path、 Self-starting and maintenance-free、 Green light picosecond

Application area：Fluorescence lifetime microscopy、 OPA pump laser、 Seed laser

Unit Price

Please contact customer service for a discounted quote.

Part Number

PSPL-515-50-10-50-FS-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes
Central wavelength	nm	515/532	Customizable
Spectral width	nm	0.3	Customizable
Pulse width	ps	10/20/50/100	Customizable
Output power	mW	1~200	Customizable
Power instability	-	< ±2%	25℃, 5 minutes after power on
Repetition frequency	MHz	15~100	Customizable
Single pulse energy	nJ	>0.5
Mode-locking stabilization time after power-on	s	<20
Laser polarization state	-	Linear polarization
Laser output mode	-	Spatial output
Warm-up time	min	<1

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	Button
Synchronous electrical signal interface	SMA	SMA
Power supply	100~240VAC,<30W	5V DC,<20W
Dimensions	330(W)×398(D)×112(H)mm	200(W)×121(D)×65(H)mm
Operating temperature	5 ~ 35°C
Operating humidity	0~70%

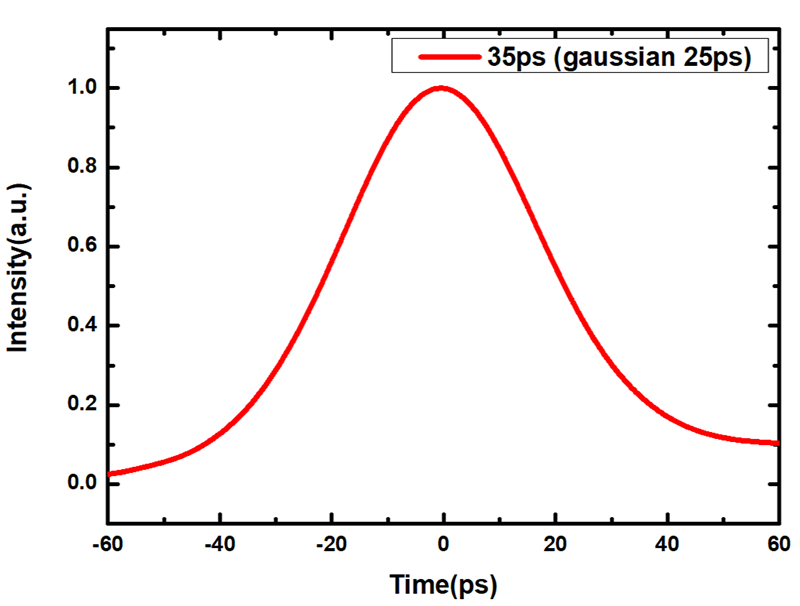

Pulse autocorrelation line

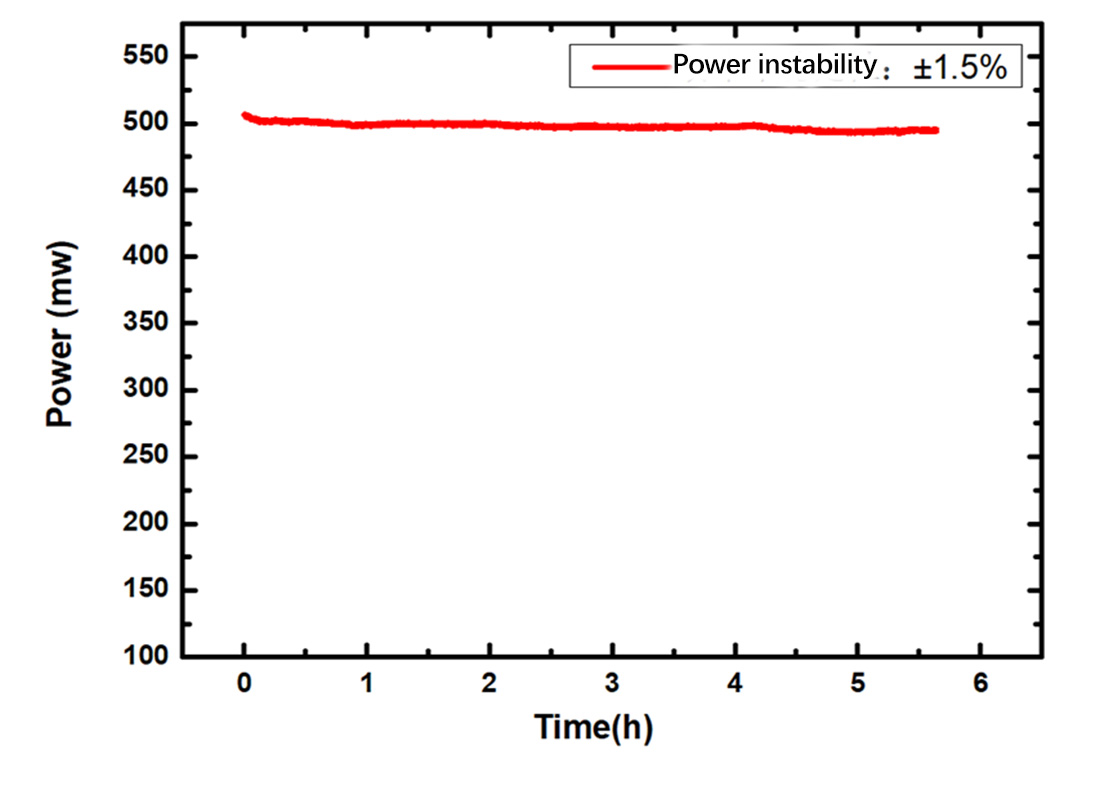

Power

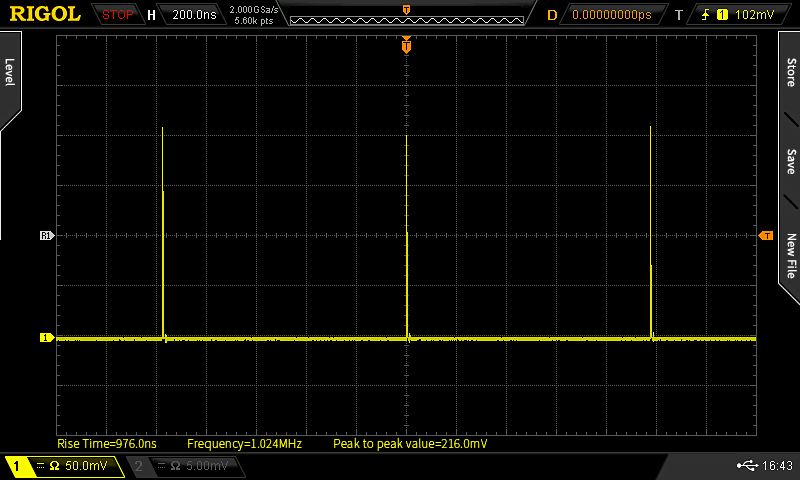

Pulse sequence

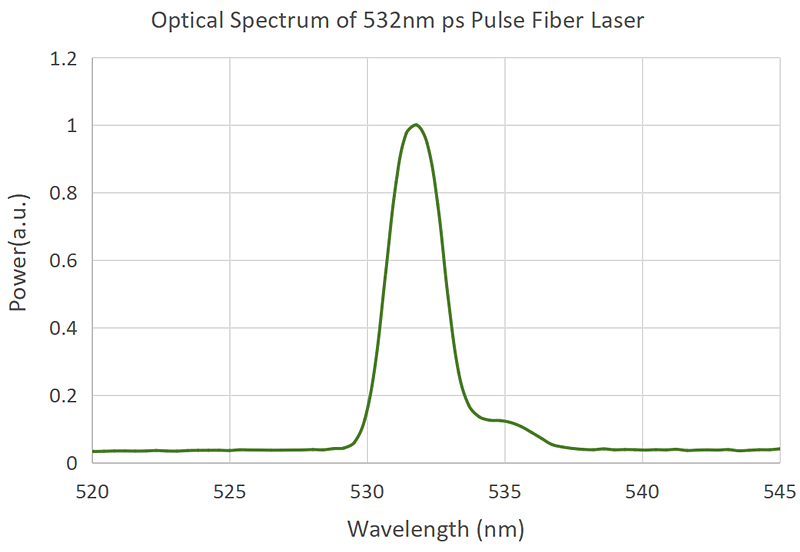

Spectrum

Ordering information / PN#

FSPL

wavelength(nm)

Pulse width(fs)

power (mW)

Repetition rate(MHz)

Output method

Packaging form

515/532

10/20/50/100

10/50/200

15/50/100

FS=Free Space Optical

B=Benchtop

M=Module
