Parameter
Parameter | Unit | Typical | Notes |
Central wavelength | nm | 1560±10 | |
Pulse width | fs | ≤120 | Customizable |
Laser average power | W | 1 | Customizable |
Power instability | - | < ±1% | 24h@25°C |
Repetition frequency | MHz | 80~100 | Customizable |
Single pulse energy | nJ | >10 | |
Laser polarization state | - | Linear polarization,DOP>20dB | Vertical polarization |
Laser output mode | - | Space Light | |
Beam quality | - | M2<1.2 | TEM00 |
Beam diameter | mm | ≤1.6 | * 1/e2 Waist Diameter |
Beam divergence angle | mrad | <1.5 |
Electrical and environmental parameters | Unit | Typical | Notes |
Synchronous electrical signal interface | - | SMA | |
Warm-up time | min | <1 | |
Operating temperature | °C | 5 ~ 45 | |
Power supply | - | AC 110~240VAC | Power consumption<40W |
Dimensions | mm | 330(W)×398(D)×112(H) | Table Benchtop |
Weight | kg | ≤5 |

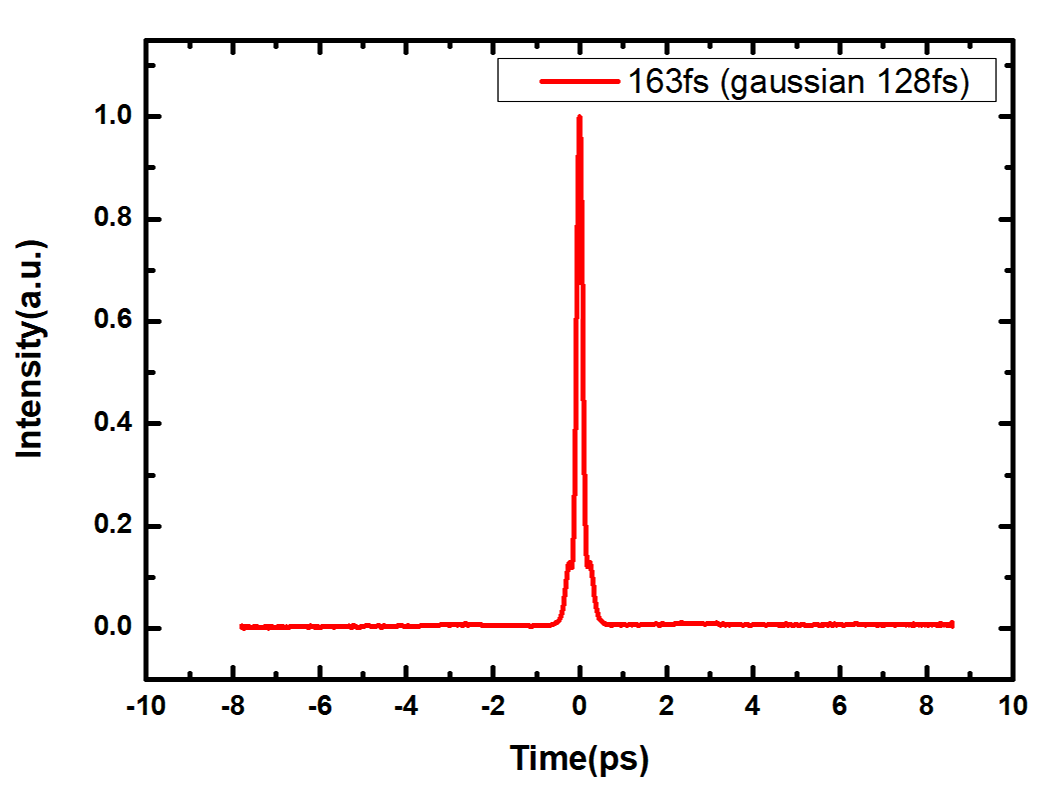

Pulse AC Curve

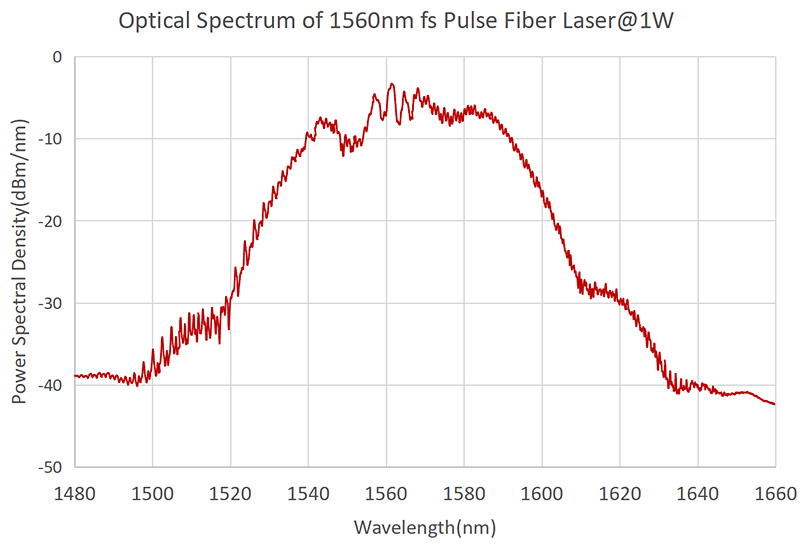

spectrum

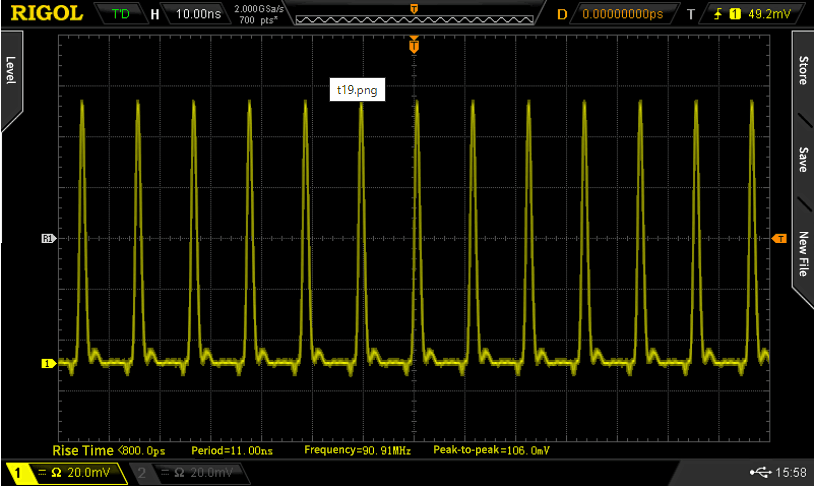

Pulse sequence
Ordering information / PN# | ||||||
FSPL | wavelength(nm) | Pulse width(fs) | Average power (mW) | Repetition rate(MHz) | Output method | Packaging form |
1560 | 120 | 1000 | 80/100 | FS= free space optical | B=Benchtop
|
